― １３―
(6)

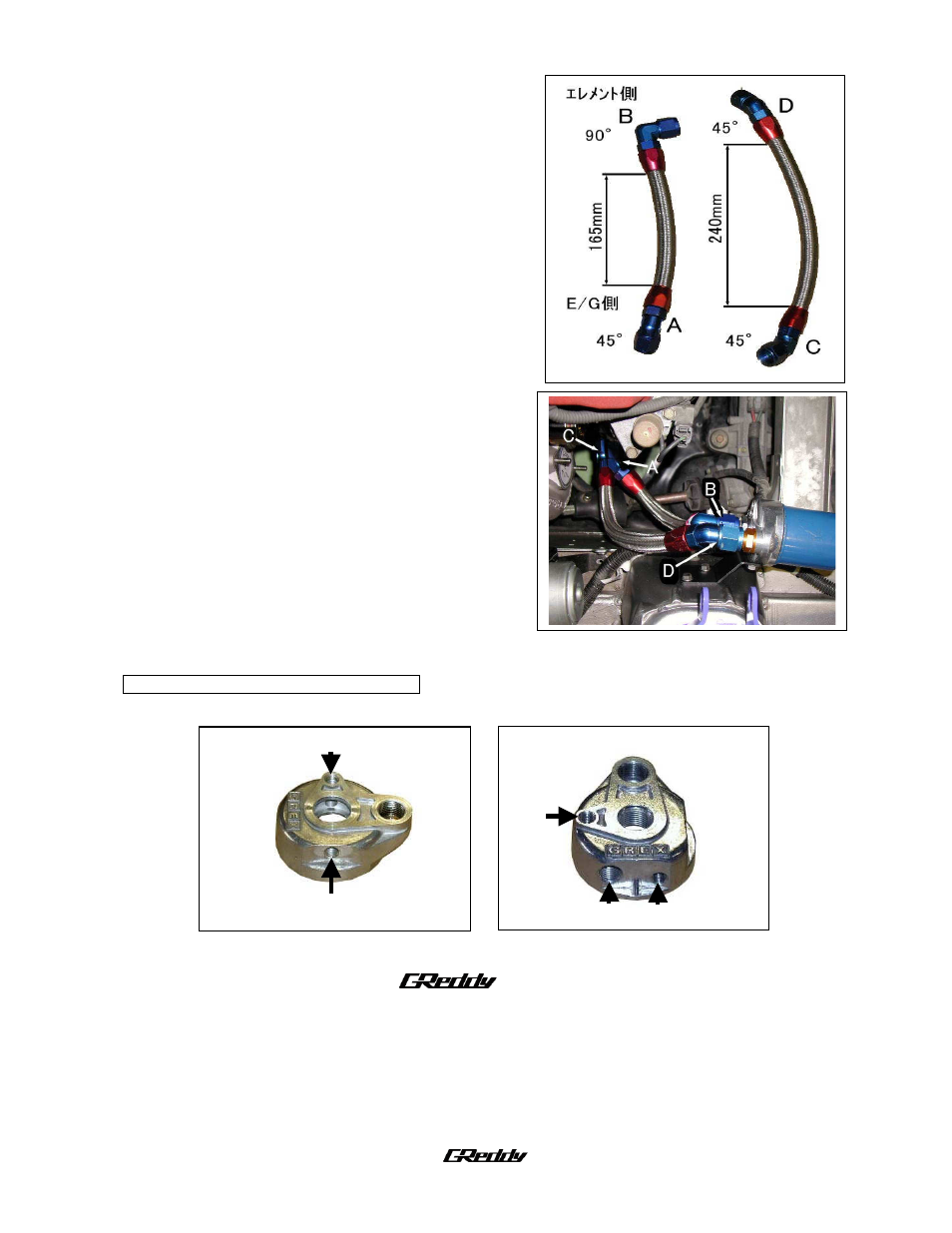

Connect oil hoses #27 (A) & #28 (B).
･
Oil line hose A goes between the center unions.
Where the 90 degree fitting is on the filter side,
and the 45 degree fitting on the engine side.
･
Oil line hose B goes between the side unions.
Where the 45 degree fittings are on each side.
※
Use the corrugated tube (#31) to cover any part of
the oil lines that might make contact with any part
of the chassis or the other oil line.
※
Refer to the Images to reference where each end
of the hoses should go.
〈
Parts used: 27, 28
，
31
〉
Optional Sensor Installation Instructions
Engine Block side Oil filter side
･
Sections
Ａ、Ｂ、Ｅ （１／８ＰＴ）・・・
able to measure oil temperature and oil pressure.
･
Section
Ｃ （１／ ８ＰＴ） ・・・
The electrical type warning meter temperature
sensor fits here.
･
Section
Ｄ （Ｍ１４×Ｐ１．５） ・・・
Mechanical type temperature sensor fits here.
A A A A
B B B B
E E E E
D D D D C C C C
