4. Roll the car forward slowly so the driveshaft or CV joint hub complete at least

one complete revolution. You should perform this test while the vehicle is on the
ground and not on the stand. As the vehicle suspension takes up the weight of
the vehicle, the driveshaft and CV joint hub move. The sensor must be properly
aligned with the magnet in this normal condition.

The dot should appear and then disappear each time the magnet passes the sen-
sor. If the dot does not flash as described, consult the Troubleshooting section.

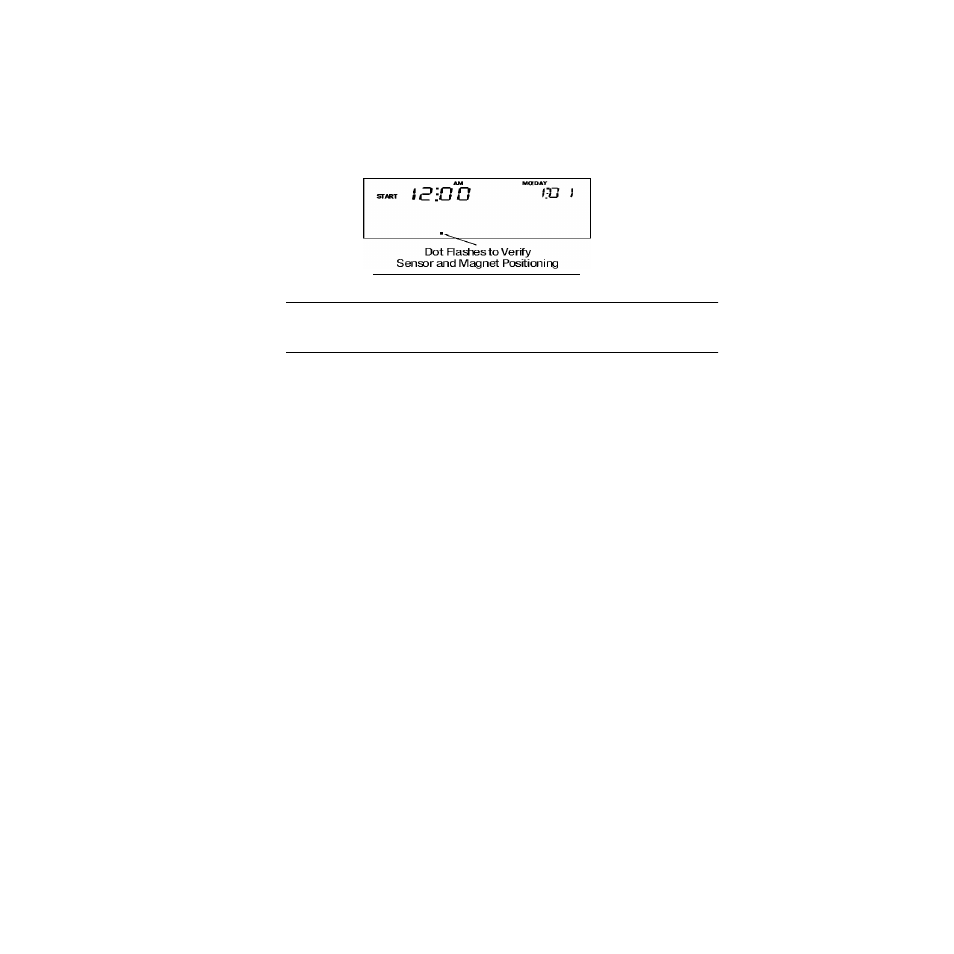

Figure 29: Dot Position at Bottom of Screen

NOTE:

The DriveRight come with sample data pre-programmed into the log so you can use all
of the unit’s features immediately. As you use the unit, this data will automatically be

over-written by new data.

5. Road test the DriveRight by driving around and observing the readings. You will

need two people for this test: one to drive and the other to operate and read the
DriveRight.

Before the DriveRight will read correctly, you must calibrate the unit. Follow the
instructions in the User’s Manual for instructions on calibrating the DriveRight.
