9

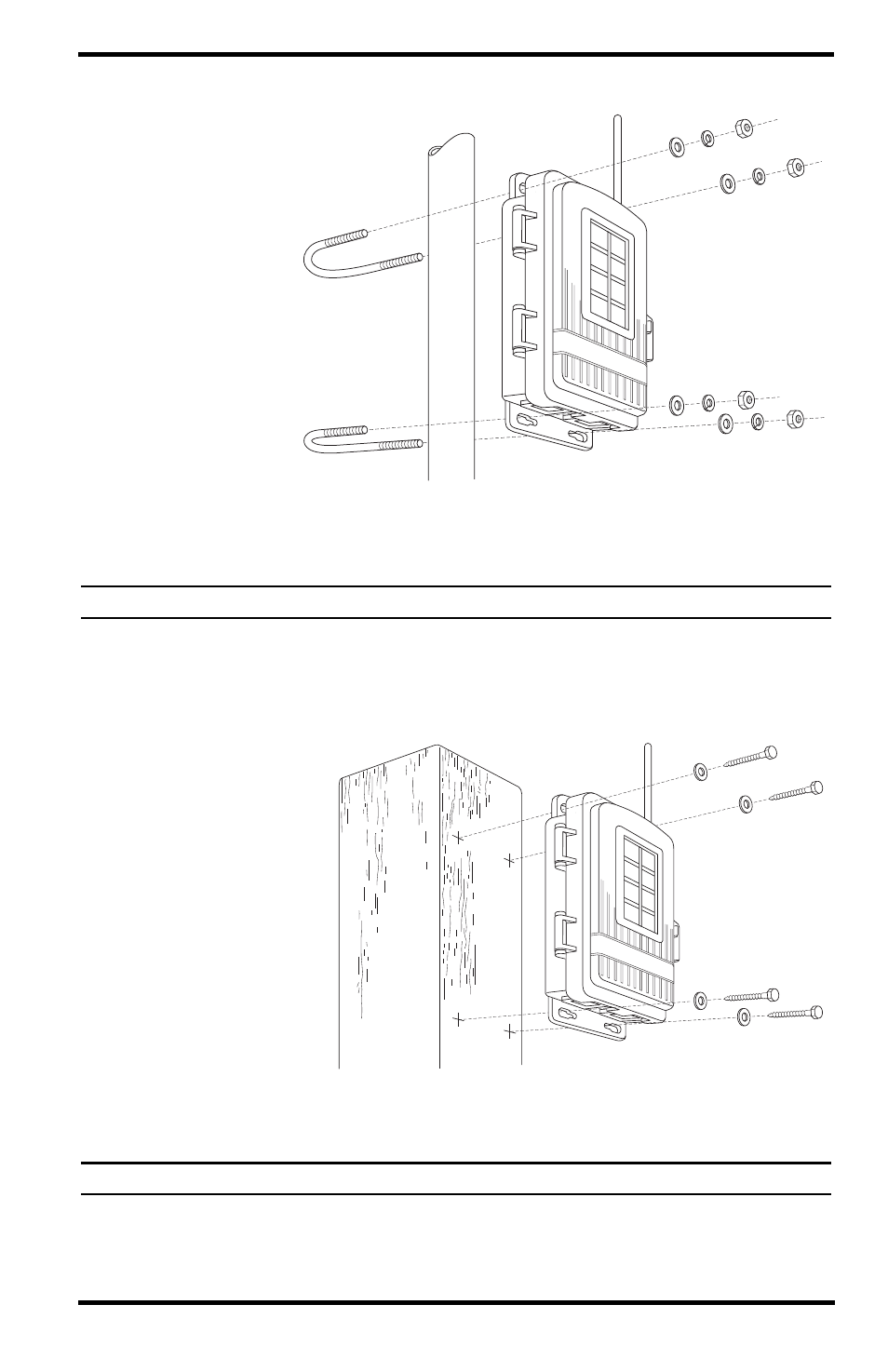

Mounting Transmitter Shelter on a Pole

1. While holding the

shelter against the
pole, place a U-bolt
around the pole and
through the two
holes on at the top of
the shelter.

Flat

Washer

Lock

Washer

Hex

Nut

U-Bolt

2. Place a flat washer, a

lock washer and a
hex nut on each of
the bolt ends.

3. Using an adjustable

wrench or 7/16"
wrench, tighten the
nuts.

4. Place the second U-bolt around the pole and through the two holes at the bottom of

the shelter. Put a flat washer, a lock washer, and a hex nut on each bolt end, and
tighten the hex nuts.

Note:

Remember to position the shelter so the solar panel has maximum exposure to the sun.

Mounting Transmitter Shelter on a Vertical Surface

1. With a 3/16" (5 mm) drill bit, drill two holes approximately 2" (50 mm) apart. Use a

carpenter’s level to ensure the holes will be level.

2. Drill two more holes 7-

1/32" below the upper
holes.

Flat

Washer

Lag

Screw

3. Insert the 1/4" x 1-1/2"

lag screws through the
flat washers, and through
the holes at the top of the
shelter into the post.
Using an adjustable
wrench or 7/16" wrench,
tighten the lag screws.

4. Insert the 1/4" x 1-1/2"

lag screws through the
flat washers, and through
the holes at the bottom of the shelter into the post. Using an adjustable wrench or
7/16" wrench, tighten the lag screws.

Note:

Remember to position the shelter so the solar panel has maximum exposure to the sun.
