3. Swivel the

anemometer until
the arm is pointing
north, if possible.

U-Bolt

1/4" Flat Washer

1/4" Lock Washer

1/4" Hex Nut

4. Using an

adjustable wrench
or 7/16" wrench,
tighten the nuts. If
the anemometer
arm is not pointing
north, calibrate
your console by
following the
instructions in your
console manual.

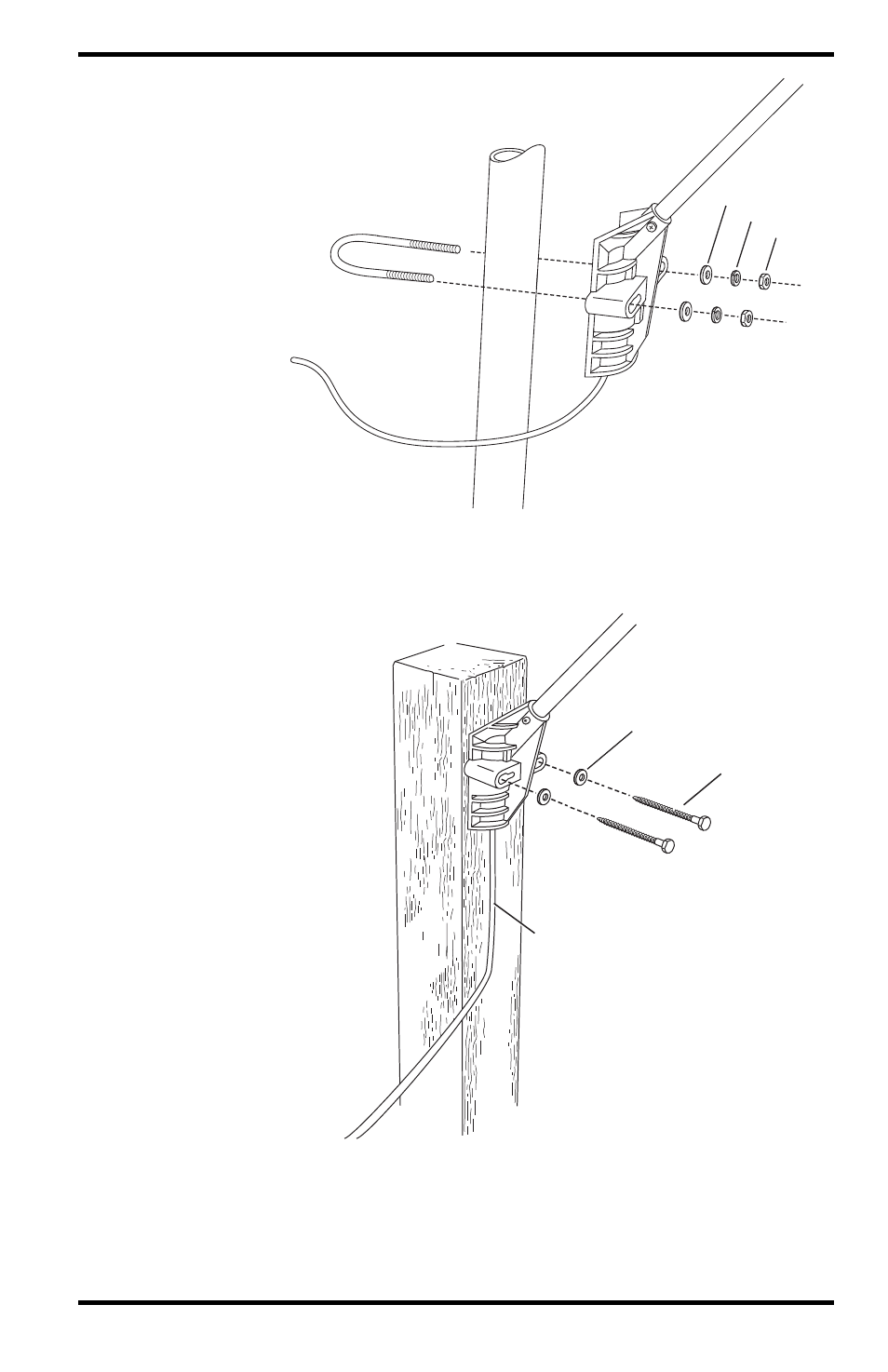

Mounting Anemometer on a Vertical Surface

1. With a 3/16" (5 mm) drill

bit, drill two holes
approximately 2-1/8" (54
mm) apart. Use a
carpenter’s level to
ensure the holes will be
level.

1/4" Flat Washers

1/4" x 3" Lag Screws

40' of Anemometer Cable

2. Insert the 1/4" x 3" lag

screws through the flat
washers and the holes in
the mounting base into
the post.

3. Using an adjustable

wrench or 7/16" wrench,
tighten the lag screws. If
the anemometer arm is
not pointing north,
calibrate your console by
following the instructions
in your console manual.
