Mounting the CSS
The instructions below take you through the procedure necessary to mount the
shelter against a wall or post, on a small pipe, or on a large pipe.
Mounting the Shelter on a Wall or Post
Attach the shelter to the mounting surface in the desired location using the
large screws and 1/4” flat washers as shown below. Use a pencil or a center‐
punch to mark the location of the pilot holes.

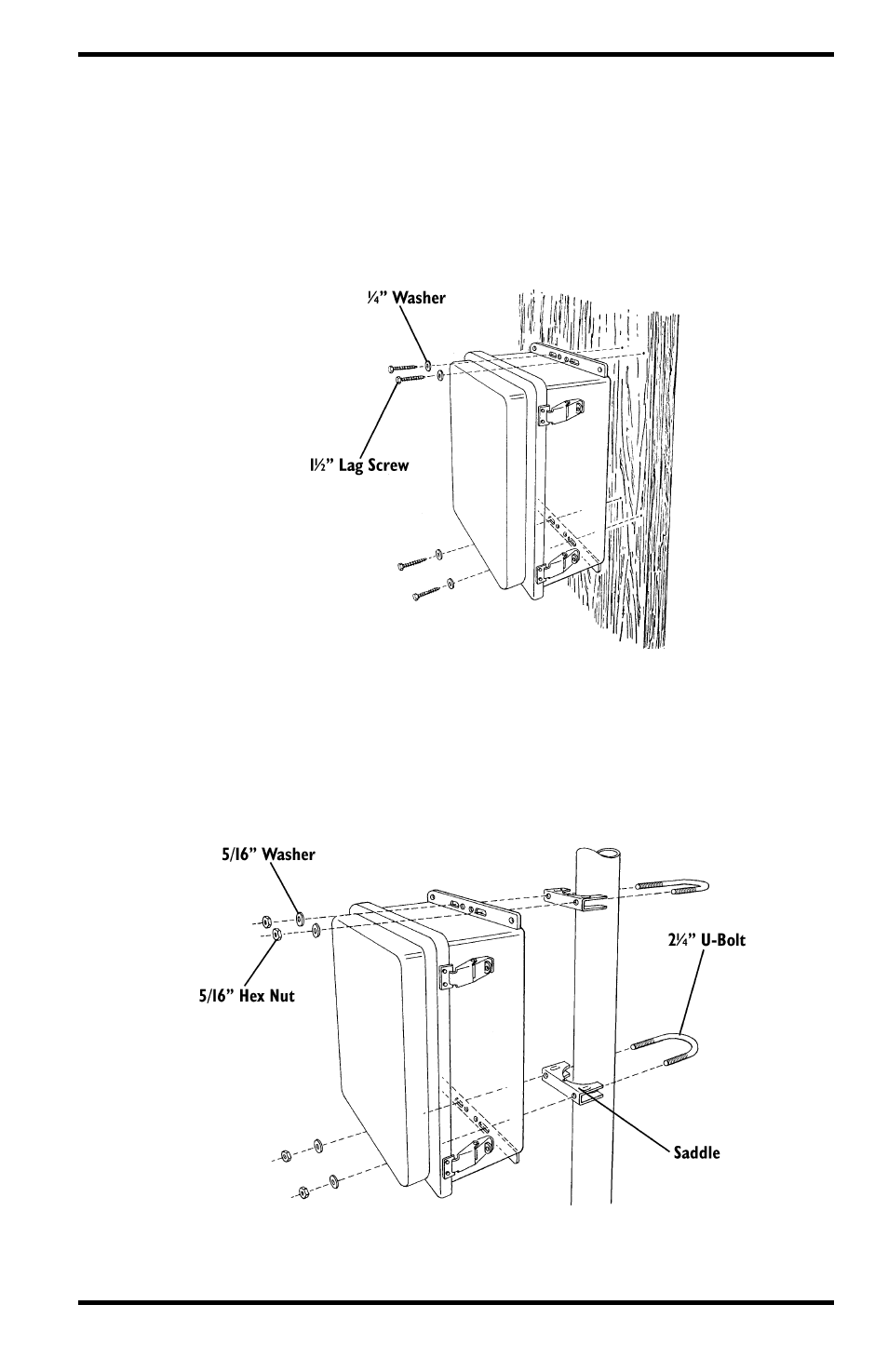

Mounting on a Wall or Post
Mounting On a Pipe
Mount the CSS onto a pipe, outside diameter between 1 1/2” and 2 3/8” (38mm
and 60mm), using the 2 1/4” U‐bolt, saddles, 5/16” washers, and 5/16” hex nuts
as shown below. For a smaller pipe, outside diameter between 3/4” and 1 1/4”
(19 mm and 31mm), use 1 1/2” U‐Bolts (not provided).
Mounting on a Pipe
