Installing Surge Protectors
To install 2‐ or 4‐wire Surge Protectors in the CSS, you will need to obtain a
ground terminal (available free from Davis). The ground terminal includes all
hardware necessary to install the surge protector as shown below. Connect the
ground jumper to the surge protectors and the ground lug. Consult the surge
protector manual for instructions on wiring the surge protectors.

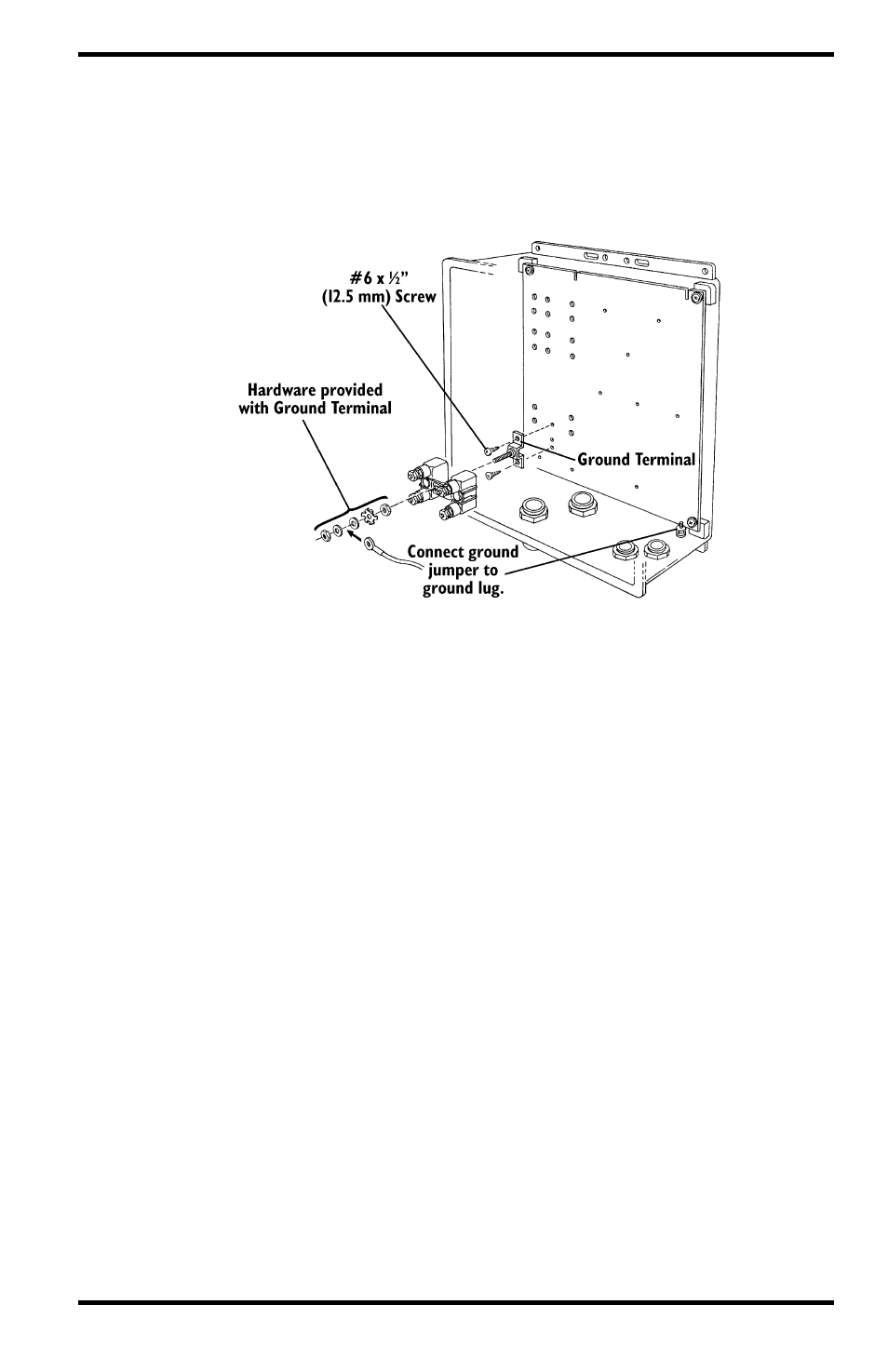

Installing Surge Protector
Securing Cables
Secure cable to the inside of the shelter using self‐adhesive cable tie mounts
and cable ties. When finished installing components, tighten the compression
nuts on the strain reliefs to secure the cables and create a weather‐resistant seal.
If there is a large air space around the cables, fill the space by wrapping the
cables in electrical tape and/or sealing with silicone caulking.
