UL Power-limited Wiring Requirements Installation
Unimode 9600 PN 51336:C 11/06/01 29
2.5 UL Power-limited Wiring Requirements
Power-limited and nonpower-limited circuit wiring must remain separated in the cabinet.
All power-limited circuit wiring must remain at least 0.25” (6.35 mm) away from any
nonpower-limited circuit wiring and nonpower-limited circuit wiring must enter and exit
the cabinet through different knockouts and/or conduits. A typical wiring diagram for the
Unimode 9600 is shown below.

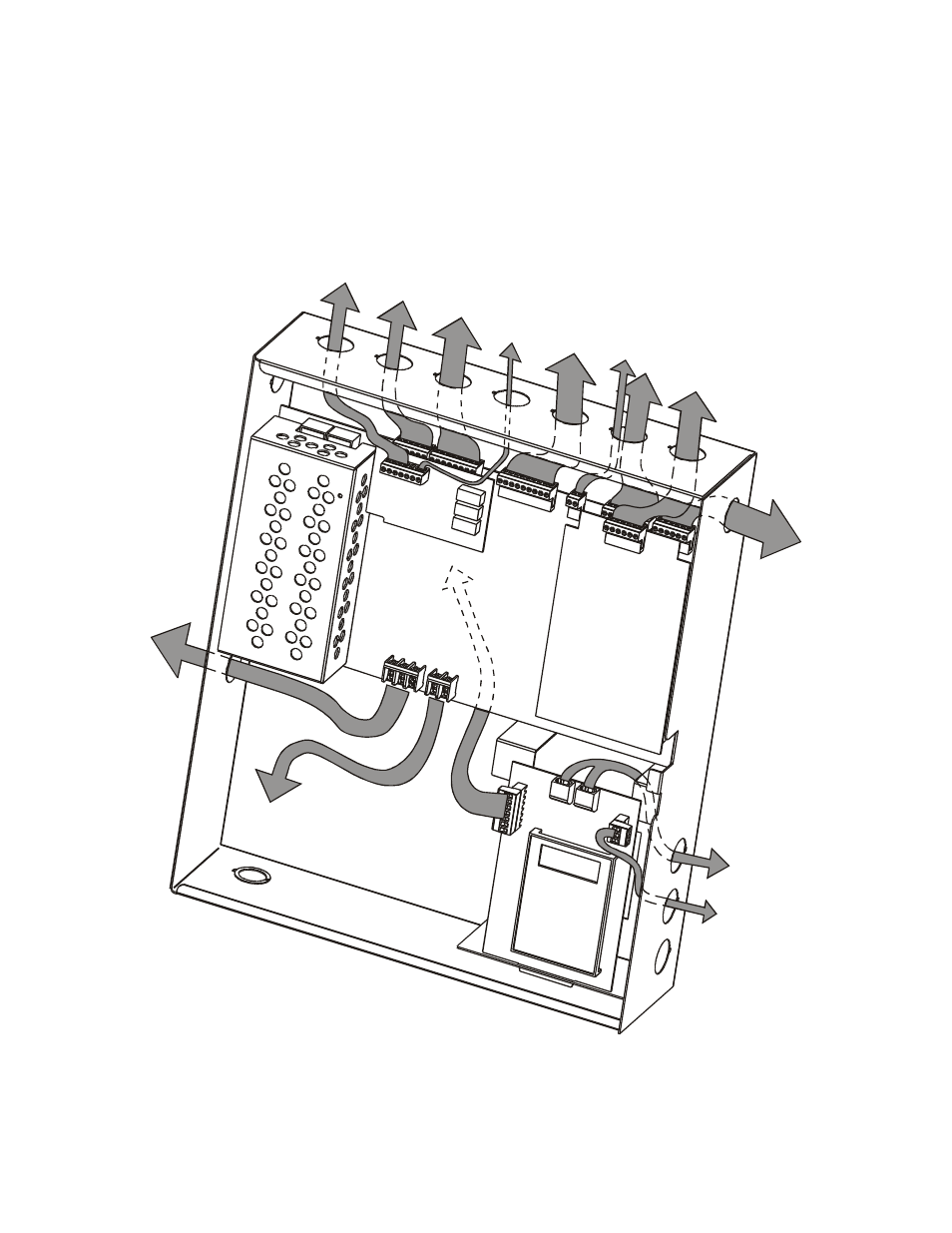

Figure 2.7 Typical UL Power-limited Wiring Requirements
Power-lim
ited Circu
its
Power-lim
ited Circu
its
Nonpowe
r-limited
Circuits
Power-lim
ited Circuits
4XTMF
SLC-2
ADT-UDACT
AC Powe
r Nonpowe
r-limited
To Batteri
es
Nonpowe
r-limited
Circuits
Power-lim
ited Circuits
To EIA-4
85 and 24 VDC p
ower routed beh
ind
board
