Product Description Accessories
22 Unimode 9600 PN 51336:C 11/06/01

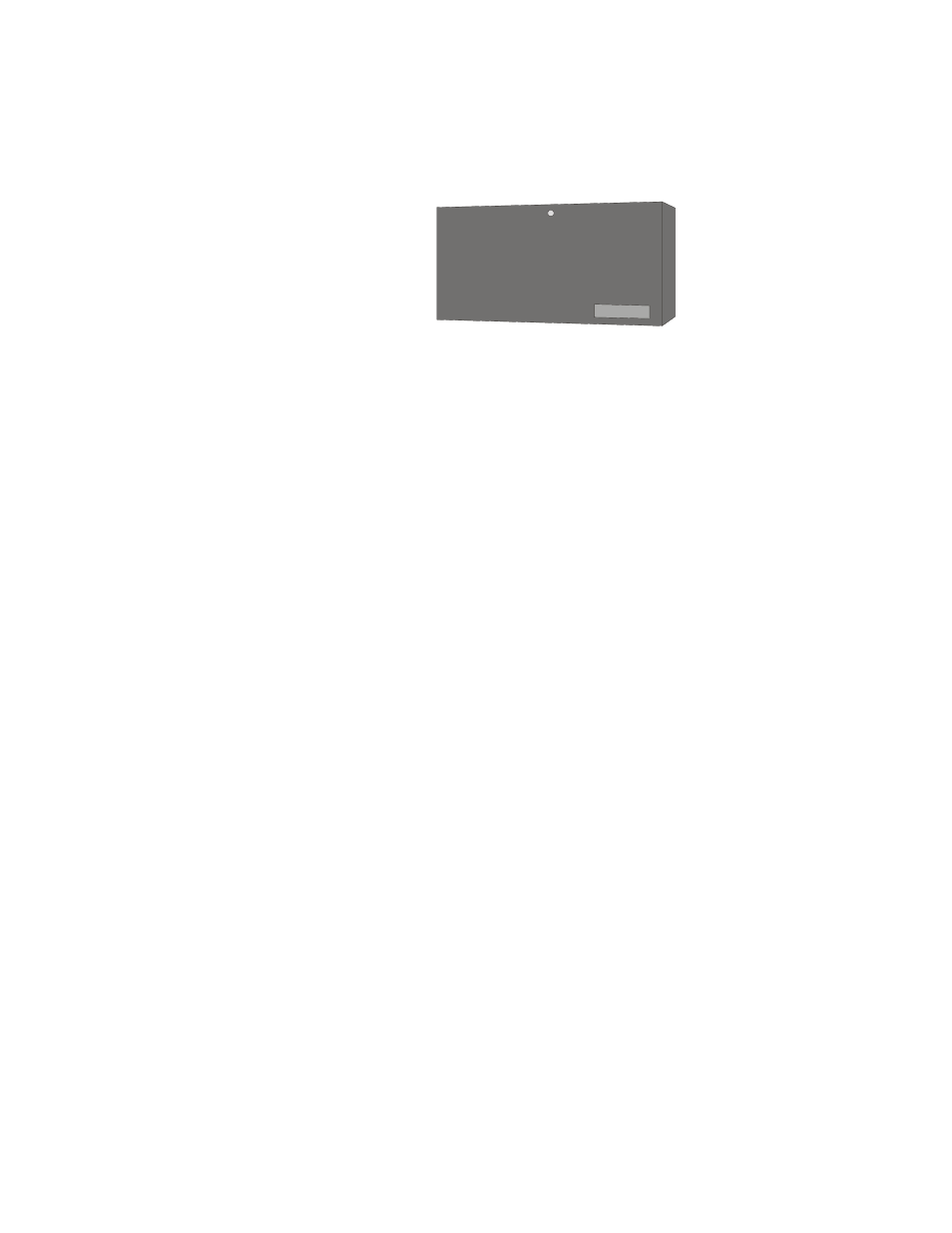

BB-55F
The BB-55F battery box may be used to house two 25 AH batteries, two 60 AH batteries
or one 100 AH battery. When the ADT-CHG-120 is mounted in the BB-55F, two 25 AH
or one 60 AH battery may also be housed in the battery box.
1.8.4 ADT-CHG-120 Battery Charger
The ADT-CHG-120 is capable of charging up to 120 AH lead-acid batteries with the
Unimode 9600 FACP. The FACP battery charger must be disabled when using the
ADT-CHG-120. The batteries and charger can be housed in the BB-55F battery box
which can be mounted up to 20 feet away from the control panel. Note that when using
the BB-55F for housing the charger and batteries greater than 25AH, multiple BB-55Fs
are required. Refer to the ADT-CHG-120 Manual for additional information.
1.8.5 Annunciators
ADT-ACS Series LED Zone Type Annunciators
The ADT-ACS Series Annunciators remotely display alarm and trouble status as well as
system status. In addition, they can provide remote Acknowledge, Silence, Reset and
Drill functions. For more detailed information, refer to the appropriate ADT-ACS
annunciator manual. Following is a list of annunciators which can be used with the
Unimode 9600.
• ADT-ACM-16AT Annunciator Control Module annunciates 16 zones with 16 red
alarm LEDs and 16 yellow trouble LEDs. In addition, it has a System Trouble
LED, an On Line/Power LED and a local piezo sounder. It also has switches for
FACP Acknowledge, Silence, Reset and Drill. It has rotary address switches and
will accept up to three AEM-16AT Expanders
• AEM-16AT Annunciator Expander Module annunciates 16 zones with 16 red alarm
LEDs and 16 yellow trouble LEDs
• ADT-AFM-16AT Annunciator Fixed Module annunciates 16 zones with 16 red
alarm LEDs and 16 yellow trouble LEDs. In addition, it has a System Trouble
LED, an On Line/Power LED and a local piezo sounder. It also has switches for
FACP Acknowledge, Silence, Reset and Drill. It is fixed at address ‘1’
• ADT-ACM-32A Annunciator Control Module annunciates 32 alarm zones with 32
red LEDs. In addition, it has a System Trouble LED, an On Line/Power LED and a
local piezo sounder. It also has a switch for local piezo silence. It has rotary
address switches and will accept one AEM-32A Expander
• AEM-32A Annunciator Expander Module annunciates 32 alarm zones with 32 red
LEDs
• ADT-AFM-16A Annunciator Fixed Module annunciates 16 alarm zones with 16
red alarm LEDs. In addition, it has a System Trouble LED, an On Line/Power LED
and a local piezo sounder. It also has a switch for local piezo silence. It is fixed at
address ‘1’
• ADT-AFM-32A Annunciator Fixed Module annunciates 32 alarm zones with 32
red LEDs
