Lokar Automatic Transmission Shifter Ford C4 and C6 Floor User Manual
Page 4
INS0093 Rev. 07/02/14
Page 4

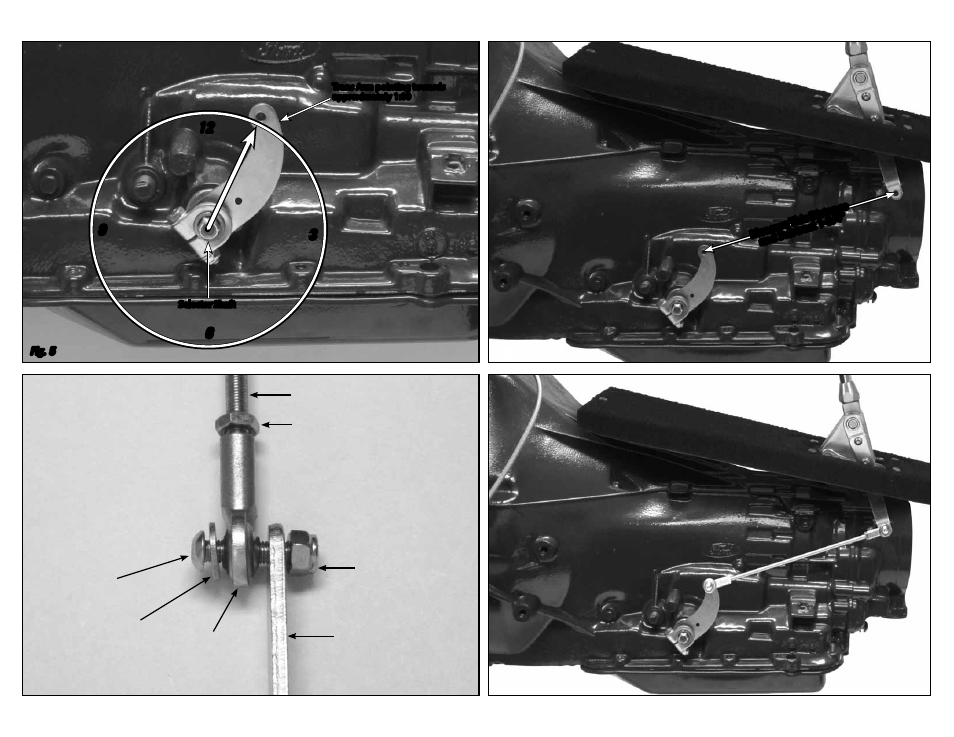

Fig. 5
Fig. 6
Fig. 7
Fig. 8
The bolt can be installed in either
direction, but make sure the
Rod End is sandwiched between
the Flat Washer and the Quad
Arm or Trans Arm.
1/4"-28 x 1"
Button Head Bolt
Quad Arm or
Trans Arm
1/4"-28 Nylock Nut
1/4"-28 Jam Nut
Threaded Rod
Flat
Washer
Rod
End
Selector Shaft
Trans Arm pointing towards
approximately 1:00
3
9
6
12
Measur
e This
Distanc
e
and Subtr
act 1-3/4"
© 2005 Lokar, Inc.
