Lokar Automatic Transmission Shifter Ford C4 and C6 Floor User Manual

Lokar For the car

Floor Mount Tabs

Shifter Knob

Aluminum

Adjuster

Plug

Quad

Lever

Floor Mount

Mounting Bracket

1/4"-28 Jam Nut

Trans Arm with 1/4"-28 x 1-1/2"

Hex Head Bolt, 2 Flat Washers,

and Nylock Jam Nut

Threaded Rod

Rod End

1/4"-28 x 1" Button Head Bolt,

Flat Washer, and Nylock Nut

Quad Arms:

Straight,

1-1/4" Offset, and

2-1/2" Offset

1/4"-28 x 5/8" Button Head

Bolts and Nylock Jam Nuts

Release Button

(In top of Shifter Knob)

Shifter

Lever

5/16"-24 x 1/2" Button

Head Bolts with Lock

Washers

5/16"-24 x 1/2"

Button Head

Bolts with

Nylock Jam Nuts

Building American Quality… With A Lifetime Warranty!

General Installation Notes:

Please read these instructions completely before beginning the installation. If
you have any questions please call.

Before beginning the installation, disconnect the negative battery cable and use
wheel chocks to block the vehicle's wheels.

Make sure the engine, transmission, body and frame are properly grounded.

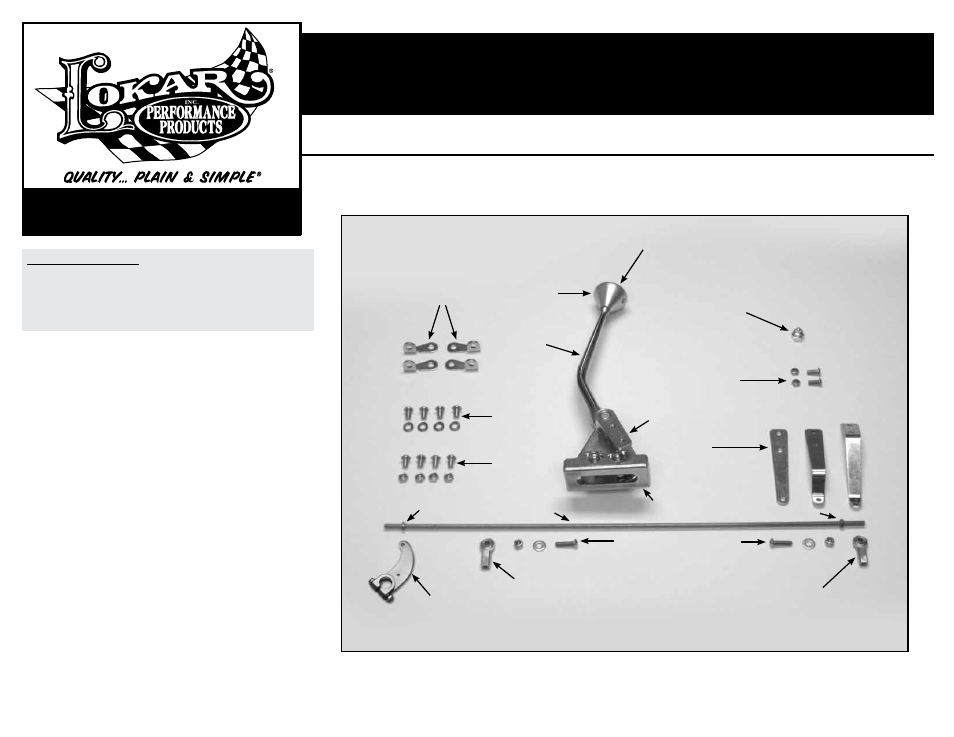

Refer to Fig. 1 for the component names.
Tools and Materials Required:

• Standard Allen wrenches: 1/8", 5/32", 3/16"

• Wrench or Socket Sizes: 3/8", 7/16", 1/2", 9/16", 7/8", 15/16",

• Tape Measure

• Metal cutting tool, such as a hacksaw or a die grinder with a cut-off wheel

• Drill and 5/16" drill bit

• Ohmmeter

• Wire cutters/strippers

• Wire crimping or soldering tools

• Blue thread locking compound

Lokar Shifters are designed to fit specific transmissions. Before installing the shifter,

verify that you have the proper model for your transmission. If your shifter does not

seem to connect to the transmission properly, do not make modifications during

installation as this may void your warranty. Call for assistance.
Verify that the shifter length you have purchased is what you actually want. When

installed, the bottom of the shifter lever will be approximately 3-1/2" - 4" above the

bottom of the floor mount mounting bracket. From that point up to the top of the

knob is how the shifter length is determined.
The Lokar Floor Mount Shifter is designed to be installed to the rear of the

transmission selector shaft. If you need the shifter to be located close to or in

front of the transmission selector shaft, the Lokar Cable Operated Shifter will

be a better choice.
The shifter must be installed into the vehicle before attempting to make any

adjustments.
The shifter is designed to lock in Park and in Neutral. You must depress the release

button in the top of the shifter knob in order to shift out of Park or Neutral. The

release button will only be flush with the top of the shift knob when the shifter is in

Park or Neutral.
To shift from Park directly to Drive, depress the release button and then hold it down

while moving the shifter lever, and the shifter will automatically stop in the Drive

position. Once you release the button, then the shifter will allow you to move the

lever into the next lower gear. You must depress the button again to shift down again.

TOLL FREE 1-877-469-7440 • [email protected] • www.lokar.com

Ford C4 and C6 Floor Mount Automatic Transmission Shifter

Installation Instructions

Ford C4 and C6 Floor Mount Automatic

Transmission Shifter Installation Instructions

INS0093 Rev. 07/02/14

Page 1

Fig. 1
