Lokar Automatic Transmission Shifter GM Floor Mount - Manual

Floor Mount Tabs
Shifter Knob
Aluminum
Adjuster
Plug
Quad
Lever
Floor Mount
Mounting Bracket
1/4"-28 Jam Nut
1/4"-28 Jam Nut
Trans
Gear
Lever
Threaded Rod
Rod End
Rod End
1/4"-28 x 1" Button Head Bolt,
Flat Washer, and Nylock Nut
Quad Arms:
Straight,
1-1/4" Offset, and
2-1/2" Offset
1/4"-28 x 5/8" Button Head
Bolts and Nylock Jam Nuts
Release Button
(In top of Shifter Knob)
Shifter
Lever
5/16"-24 x 1/2" Button
Head Bolts with Lock
Washers
5/16"-24 x 1/2"
Button Head
Bolts with
Nylock Jam Nuts
Building American Quality… With A Lifetime Warranty!
General Installation Notes:
Please read these instructions completely before beginning the installation.
If you have any questions please call.
Before beginning the installation, disconnect the negative battery cable and use
wheel chocks to block the vehicle's wheels.
Make sure the engine, transmission, body and frame are properly grounded.
Refer to Fig. 1 for the component names.
Tools and Materials Required:
• Standard Allen wrenches: 1/8", 5/32", 3/16"
• Wrench or Socket Sizes: 3/8", 7/16", 1/2", 9/16", 7/8", 15/16",
13mm (metric transmissions only)
• Tape Measure
• Metal cutting tool, such as a hacksaw or a die grinder with a cut-off wheel
• Drill and 5/16" drill bit
• Ohmmeter
• Wire cutters/strippers
• Wire crimping or soldering tools
• Blue thread locking compound
Lokar Shifters are designed to fit specific transmissions. Before installing the shifter,
verify that you have the proper model for your transmission. If your shifter does not
seem to connect to the transmission properly, do not make modifications during
installation as this may void your warranty. Call for assistance.
Verify that the shifter length you have purchased is what you actually want. When
installed, the bottom of the shifter lever will be approximately 3-1/2" - 4" above the
bottom of the floor mount mounting bracket. From that point up to the top of the knob
is how the shifter length is determined.
The Lokar Floor Mount Shifter is designed to be installed to the rear of the transmission
selector shaft. If you need the shifter to be located close to or in front of the transmission
selector shaft, the Lokar Cable Operated Shifter will be a better choice.
The shifter must be installed into the vehicle before attempting to make any
adjustments.
The shifter is designed to lock in Park and in Neutral. You must depress the release
button in the top of the shifter knob in order to shift out of Park or Neutral. The
release button will only be flush with the top of the shift knob when the shifter is in
Park or Neutral.
To shift from Park directly to Drive (or Overdrive), depress the release button and then
hold it down while moving the shifter lever, and the shifter will automatically stop in
the Drive (or Overdrive) position. Once you release the button, then the shifter will allow
you to move the lever into the next lower gear. You must depress the button again to
shift down again.
TOLL FREE 1-877-469-7440 • [email protected] • www.lokar.com
®
GM Floor Mount Automatic Transmission Shifter
Installation Instructions
GM Floor Mount Automatic Transmission Shifter
Installation Instructions
INS0092 Rev. 06/17/14 Page 1
© 2007 Lokar, Inc.

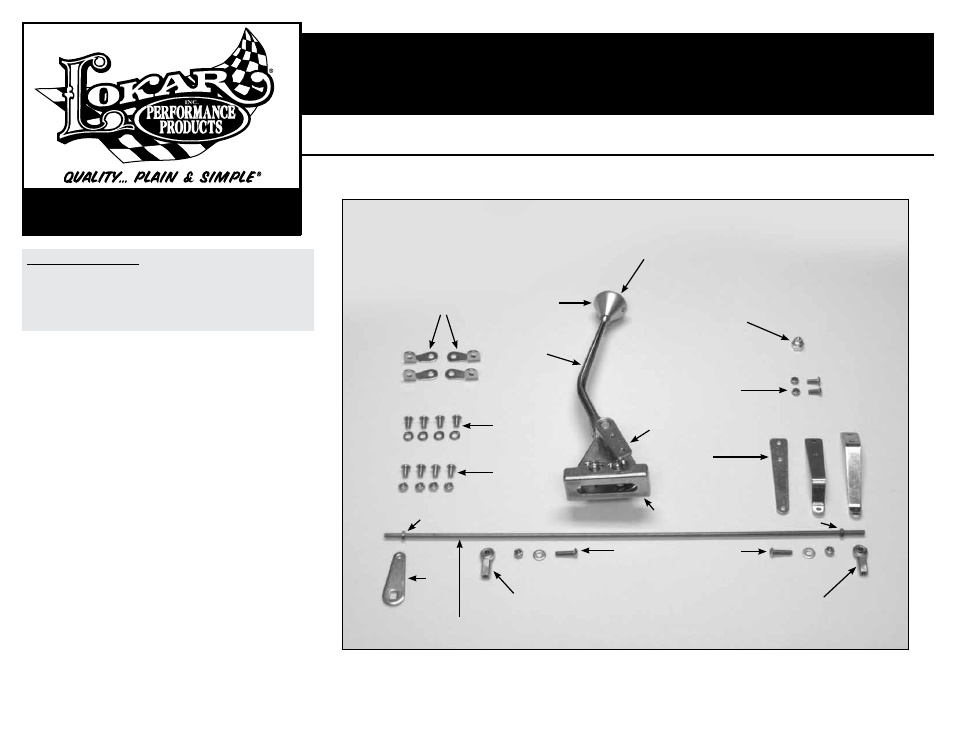

Fig. 1
