parK reVerse neUtraL oVerdrV driVe second first 1-Wire
LoKar indicator
(3 spd)
pUrpLe
Wire
yeLLoW
Wire
BLUe
Wire
not Used
BroWn
Wire
oranGe
Wire
WHite
Wire
not Used
LoKar indicator
(4 spd)
pUrpLe
Wire
yeLLoW
Wire
BLUe
Wire BroWn
Wire
oranGe
Wire
WHite
Wire
Green
Wire
not Used
indiVidUaL BULBs RED WIRE (+) RED WIRE (+) RED WIRE (+) RED WIRE (+) RED WIRE (+) RED WIRE (+) RED WIRE (+) NOT USED
str
system
PARK
TERMINAL
REVERSE
TERMINAL
NEUTRAL
TERMINAL
OVRDRV
TERMINAL
DRIVE
TERMINAL
SECOND
TERMINAL
FIRST
TERMINAL
NOT USED
dGs-1
GREEN WIRE
(+)
GRAY WIRE
(+)
PURPLE WIRE
(+)
YELLOW
WIRE (+) ORANGE
WIRE (+)
BLUE WIRE
(+)
BROWN WIRE
(+)
NOT USED
dGs-2
GREEN WIRE
(+)
GRAY WIRE
(+)
PURPLE WIRE
(+)
YELLOW
WIRE (+) ORANGE
WIRE (+)
BLUE WIRE
(+)
BROWN WIRE
(+)
NOT USED
Vfd
system
NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED
GEAR
TERMINAL
odyr/sLX GaUGe NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED
WhITE/GREEN
WIRE
dGs-3
dGs-4
NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED NOT USED
YELLOW
WIRE
To Back-up Lights (optional)
To sensor BLACK wire
To sensor GREEN wire
To sensor RED wire
To Chassis Ground
To ECM Park-Neutral Input (optional)
To Neutral Safety Relay (optional)
Parking Lights (optional)
Fused 12V+ with key in “On” and “Start” positions,
AND red wire from Lokar LED Indicator
INS0033 Rev. 05/08/14 Page 6 © 2014 Lokar, Inc.
The following steps are specific to the type of transmission you have.
For TH350, TH400, or TH200:
Step 1: Shift the transmission to Drive.
Step 2: Press and hold the set switch. The OVERDRIVE light should remain on
steady. (If the light will not quit flashing, then the sensor is not moving.)
Step 3: Release the set switch. The OVERDRIVE light will go out, and the DRIVE
light should begin flashing.
Step 4: Press and hold the set switch again. The DRIVE light should remain on
steady.
Step 5: Release the set switch. The DRIVE light will go out, and the SECOND light
should begin flashing.
Step 6: Shift the transmission to Second gear.
Step 7: Press and hold the set switch. The SECOND light should remain on steady.
Step 8: Release the set switch. The SECOND light will go out, and the FIRST light
should begin flashing.
Step 9: Shift the transmission to First gear.
Step 10: Press and hold the set switch. The FIRST light should remain on steady.
(If the light will not quit flashing, then the sensor is not moving.)
Step 11: Release the set switch. The FIRST light will go out and then come back
on steady.
Step 12: Shift the transmission through each of the gears to verify that the
programming lights match correctly.

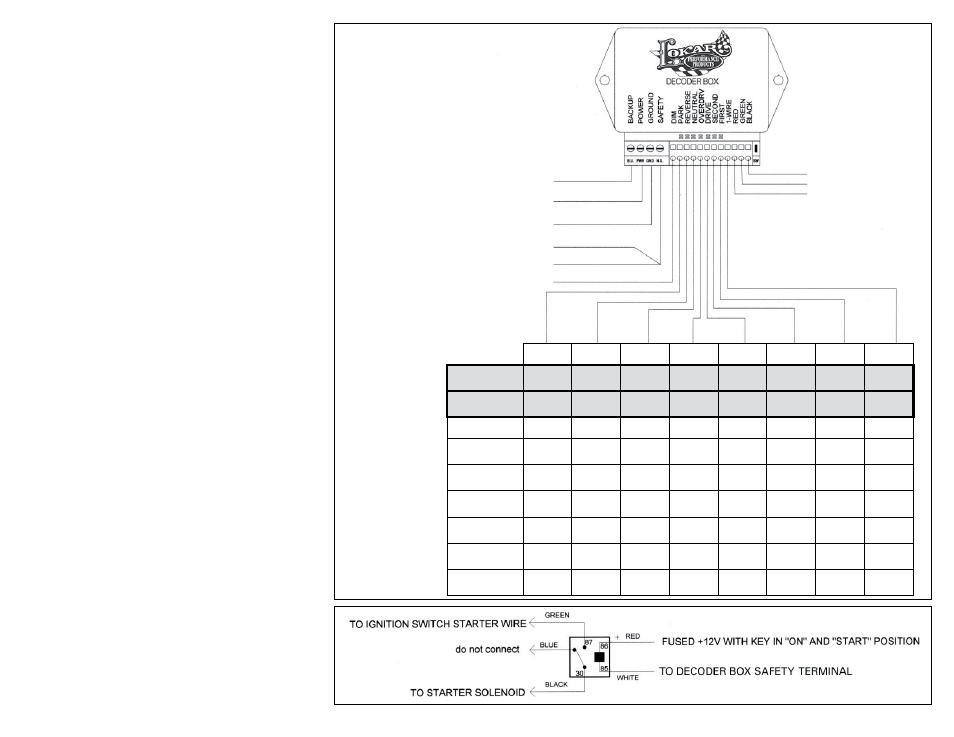

Step 13: Connect the rest of the wires from the LED indicator to the decoder box,
according to the wiring diagram shown in Fig. 15.
For 700-R4, 4L60, 4L60E, 4L80E, or 200-4R:
Step 1: After having programmed Park through Neutral as described earlier, shift
the transmission to Overdrive.
Step 2: Press and hold the set switch. The OVERDRIVE light should remain on
steady. (If the light will not quit flashing, then the sensor is not moving.)
Step 3: Release the set switch. The OVERDRIVE light will go out and the DRIVE
light should begin flashing.
Step 4: Shift the transmission to Drive.
Step 5: Press and hold the set switch. The DRIVE light should remain on steady.
Step 6: Release the set switch. The DRIVE light will go out and the SECOND light
should begin flashing.
Step 7: Shift the transmission to Second gear.
Step 8: Press and hold the set switch. The SECOND light should remain on steady.
Step 9: Release the set switch. The SECOND light will go out and the FIRST light
should begin flashing.
Step 10: Shift the transmission to First gear.
Step 11: Press and hold the set switch. The FIRST light should remain on steady.
(If the light will not quit flashing, then the sensor is not moving.)
Step 12: Release the set switch. The FIRST light will go out and then come back
on steady.
Step 13: Shift the transmission through each of the gears to verify that the
programming lights match correctly.
Step 14: Connect the rest of the wires from the LED indicator to the decoder box,
according to the wiring diagram shown in Fig. 15
Fig. 16
Fig. 15
