Configuring the Switch
3-58
3
Web – Specify the action (i.e., Permit or Deny). Specify the source and/or
destination addresses. Select the address type (Any, Host, or MAC). If you select
“Host,” enter a specific address (e.g., 11-22-33-44-55-66). If you select “MAC,” enter
a base address and a hexidecimal bitmask for an address range. Set any other
required criteria, such as VID, Ethernet type, or packet format. Then click Add.

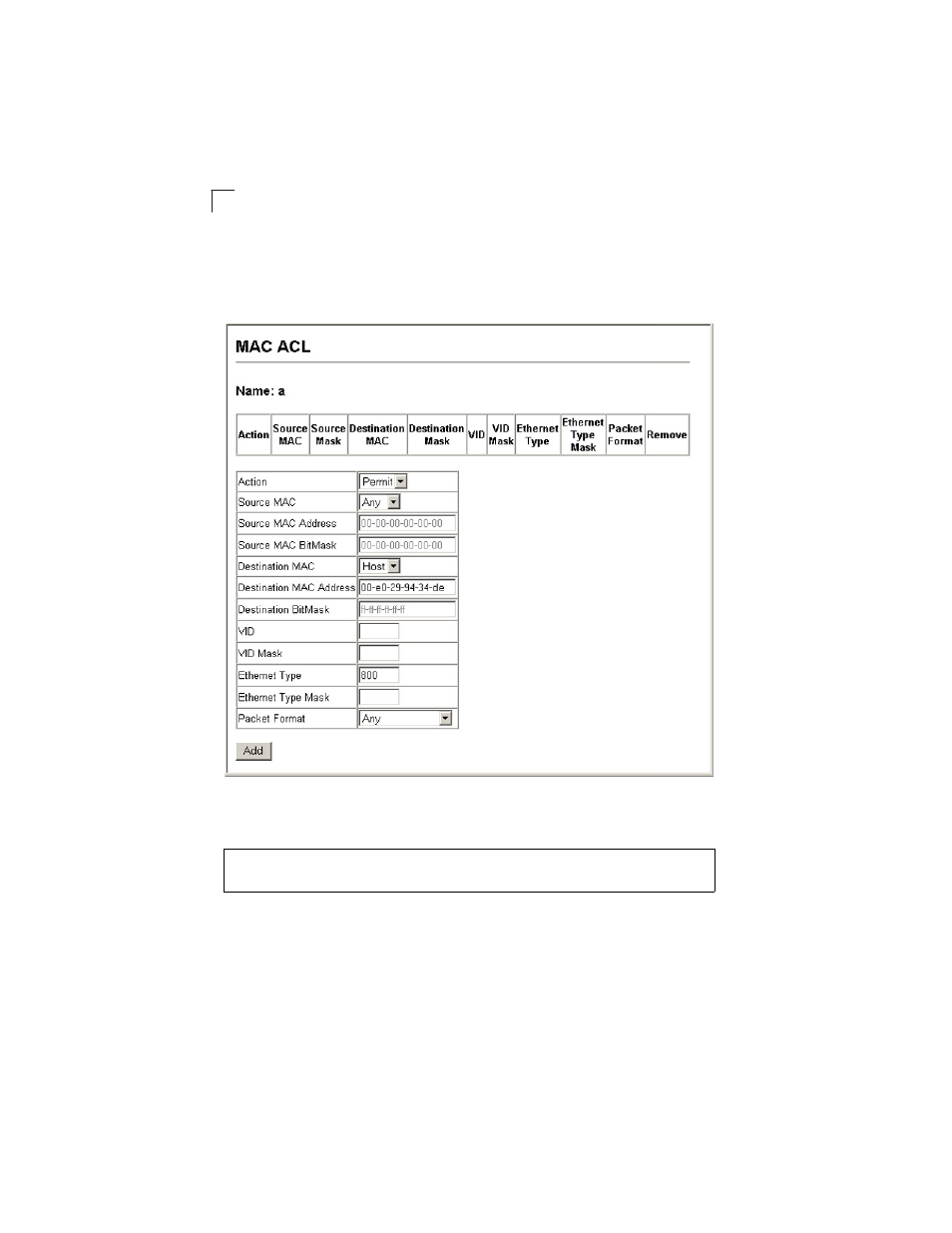

Figure 3-34. ACL Configuration - MAC
CLI – This rule permits packets from any source MAC address to the destination
address 00-e0-29-94-34-de where the Ethernet type is 0800.
Console(config-mac-acl)#permit any host 00-e0-29-94-34-de
ethertype 0800
Console(config-mac-acl)#
