Configuring the Switch
3-42
3
• If a port is disabled (shut down) due to a security violation, it must be manually
re-enabled from the Port/Port Configuration page (page 3-67).
Command Attributes
• Port – Port number.
• Name – Descriptive text (page 4-126).
• Action – Indicates the action to be taken when a port security violation is detected:
- None: No action should be taken. (This is the default.)
- Trap: Send an SNMP trap message.
- Shutdown: Disable the port.
- Trap and Shutdown: Send an SNMP trap message and disable the port.
• Security Status – Enables or disables port security on the port. (Default: Disabled)
• Max MAC Count – The maximum number of MAC addresses that can be learned
on a port. (Range: 0 - 20)
• Trunk – Trunk number if port is a member (page 3-70 and 3-71).
Web – Click Security, Port Security. Set the action to take when an invalid address is
detected on a port, mark the checkbox in the Status column to enable security for a
port, set the maximum number of MAC addresses allowed on a port, and click Apply.

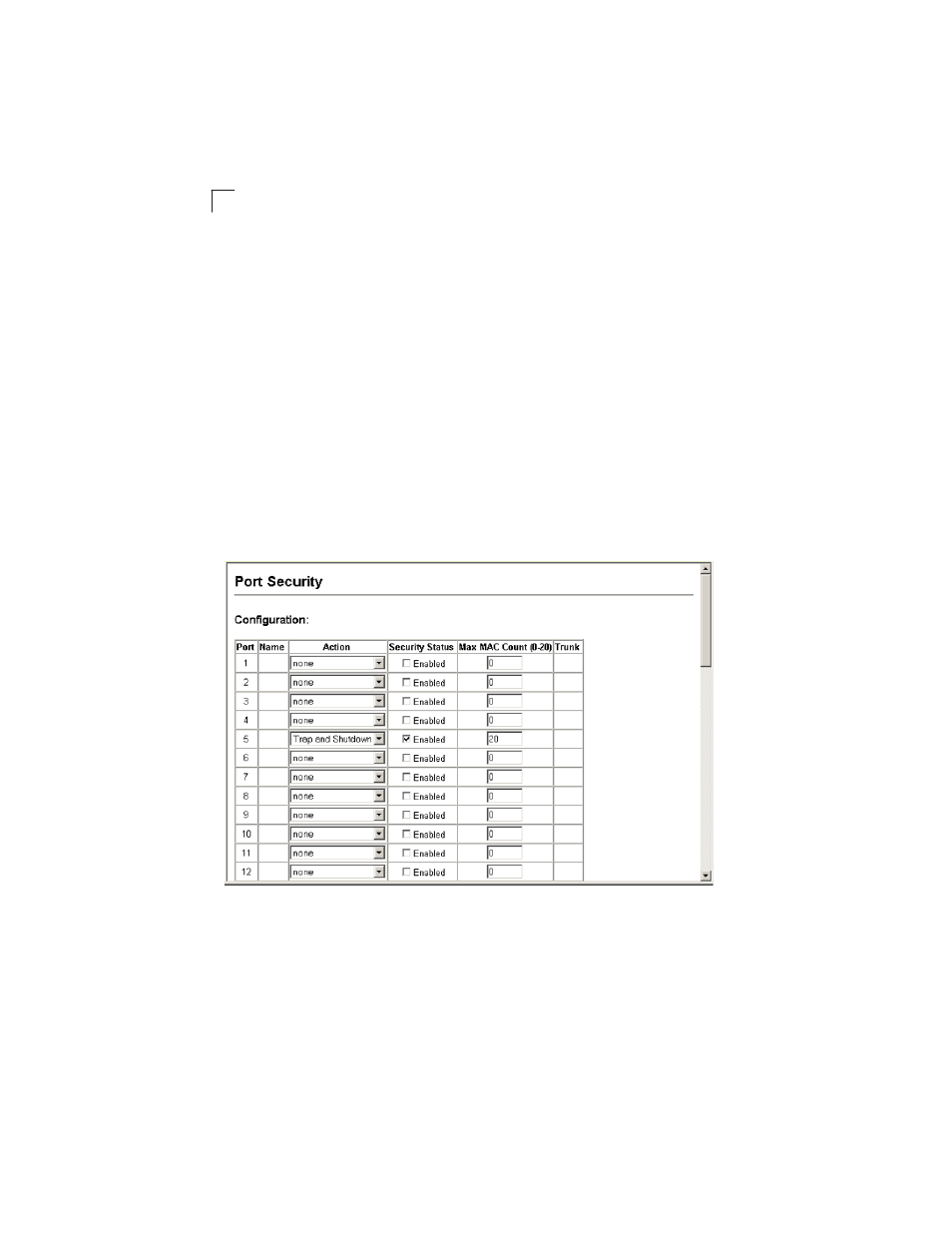

Figure 3-25. Port Security
