Plumbing transmission to cooler: 9.
With cooler installed, attach provided hoses 2ea. to fittings of cooler using provided hose clamps.
Route hoses to metal transmission cooling lines to the point where you plan to attach. Cut and flare the
transmission cooler lines where the rubber hoses are to be attached. Note: “Double flaring” of cooler
line is suggested because the metal tubing edge may cut into the rubber hose if the flare is sharp. Trim
hose length as necessary and route hose path to provide a clean fitment. Slide rubber hoses over flared
transmission lines and secure each with provided hose clamps
(see Detail F). Use provided nylon tie
straps to secure routed hose.
Installation instructions continued from previous page
Note: BE SURE that all moving parts of the engine, cooling fans and lines / hoses are clear of each
other before proceeding!
The Flex-a-lite Limited Warranty
Flex-a-lite Consolidated, 7009-45th St. Ct. E. Fife, WA 98424, Telephone No. 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite
products to be free of defects in material and workmanship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within
365 days (1 year) from date of purchase may be returned to the factory through the point of purchase, transportation charges prepaid. If, on inspection,
cause of failure is determined to be defective material or workmanship and not by misuse, accidental or improper installation, Flex-a-lite will replace the
product free of charge, transportation prepaid. Flex-a-lite will not be liable for incidental, progressive or consequential damages. Some states do
not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives
you specific legal rights and you may have other rights, which vary from state to state. The Flex-a-lite warranty is in compliance with the Magnuson-Moss
Warranty Act of 1975.
Note: Picture for demonstration purpose only. Not actual vehicle shown

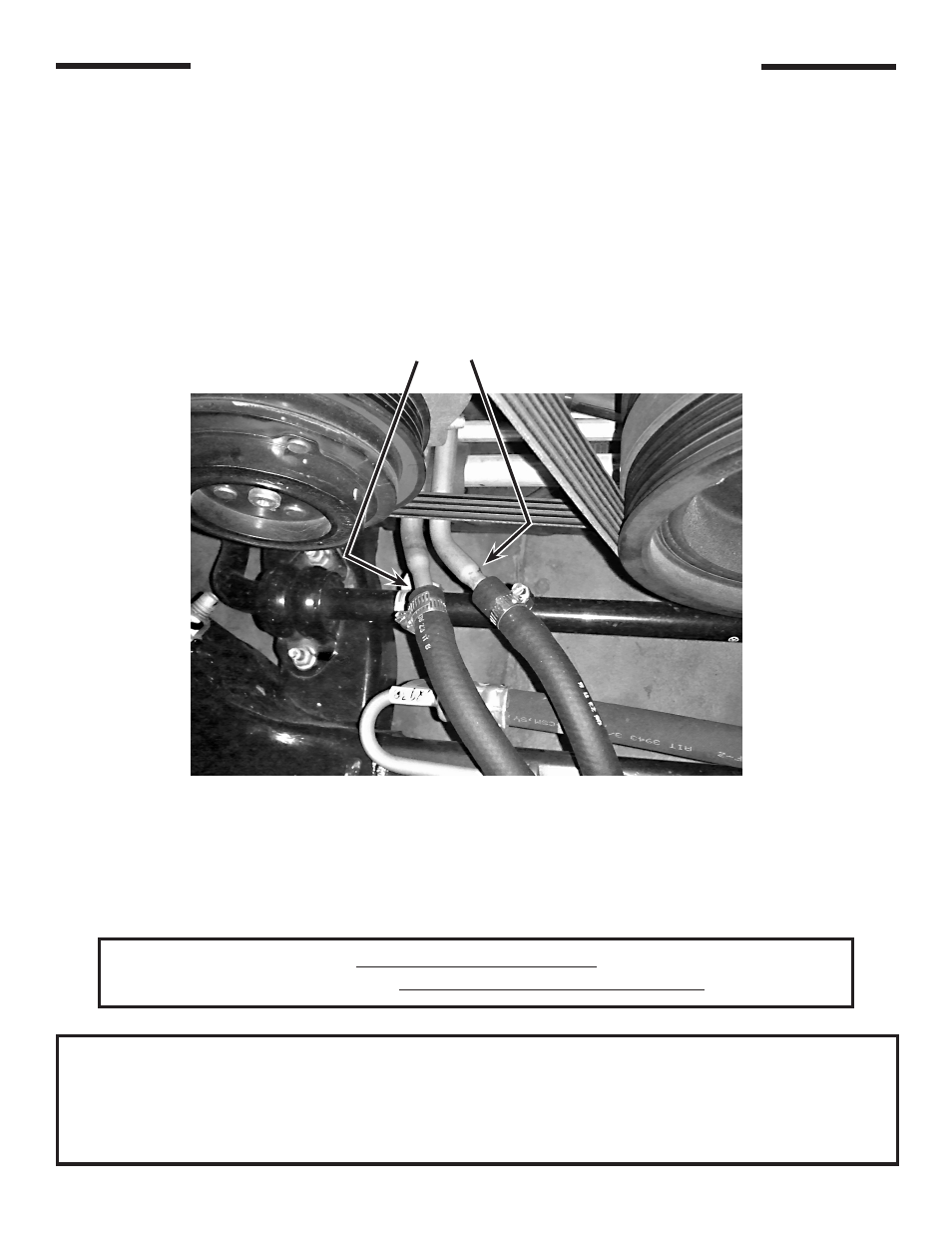

Detail F
Trim and attach hoses to transmission cooling lines.
Note: We suggest following the vehicle manufacturer’s recommended transmission fluid level 10.
checking and filling procedure before operating the vehicle on the road.
