Jeep cj s-blade electric fan, Installation instructions, Diagram a
Jeep CJ S-blade
Electric Fan
Fits OEM Radiator 1973 - 1986
Part #573: puller with controls
#583: puller with out controls
Installation Instructions
Step 1: Remove the existing fan and
clutch assembly.
Step 2: Replace the bolts that mounted
the fan assembly to the pulley. When
reinstalling the bolts it may be neces-
sary to use washers to ‘shim’ out the
bolts for clearance on the back of the
water pump drive. Be sure to tighten
these pulley bolts.
Step 3: Remove the stock radiator
shroud assembly, be sure to save the
mounting bolts. These bolts will be
used to mount your new flex-a-light
fan.

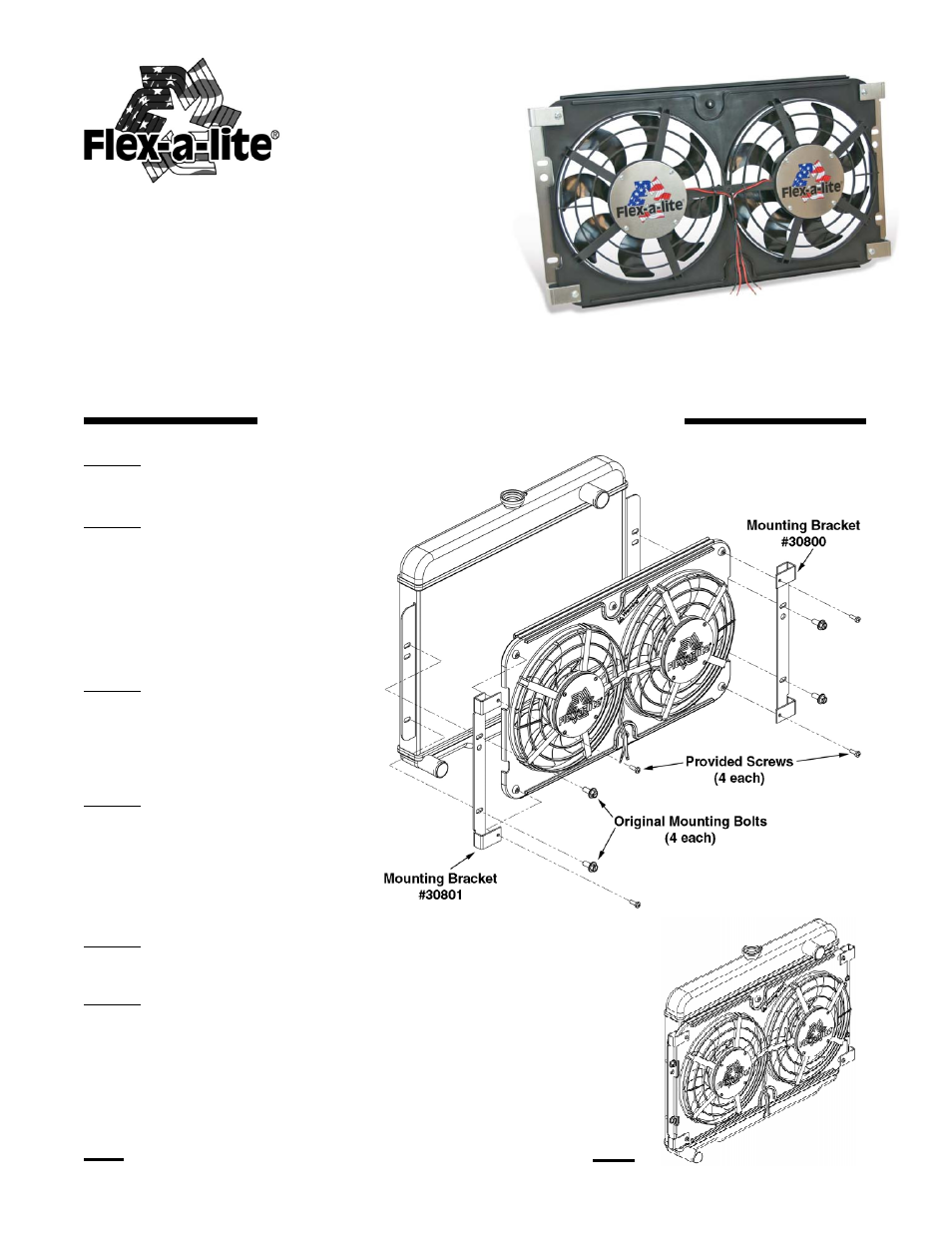

Step 4: Attached the mounting brack-
ets to the flex-a-lite shroud with
screws provided. The end of the
mounting bracket with two holes
should be at the top of the shroud.
(See Diagram A)
Diagram A
Step 5: Lower the fan/bracket assembly into the engine bay, and
attach to radiator using the original shroud bolts. (See Diagram B)
Step 6: Check for clearance between the fan and any moving compo-
nents within the engine bay and make sure the fan blades turn freely
and do not contact the radiator.
Continue to next page for wiring instructions
Rev. 02-05-10 99573 Page 1 of 4
Diagram B
