49

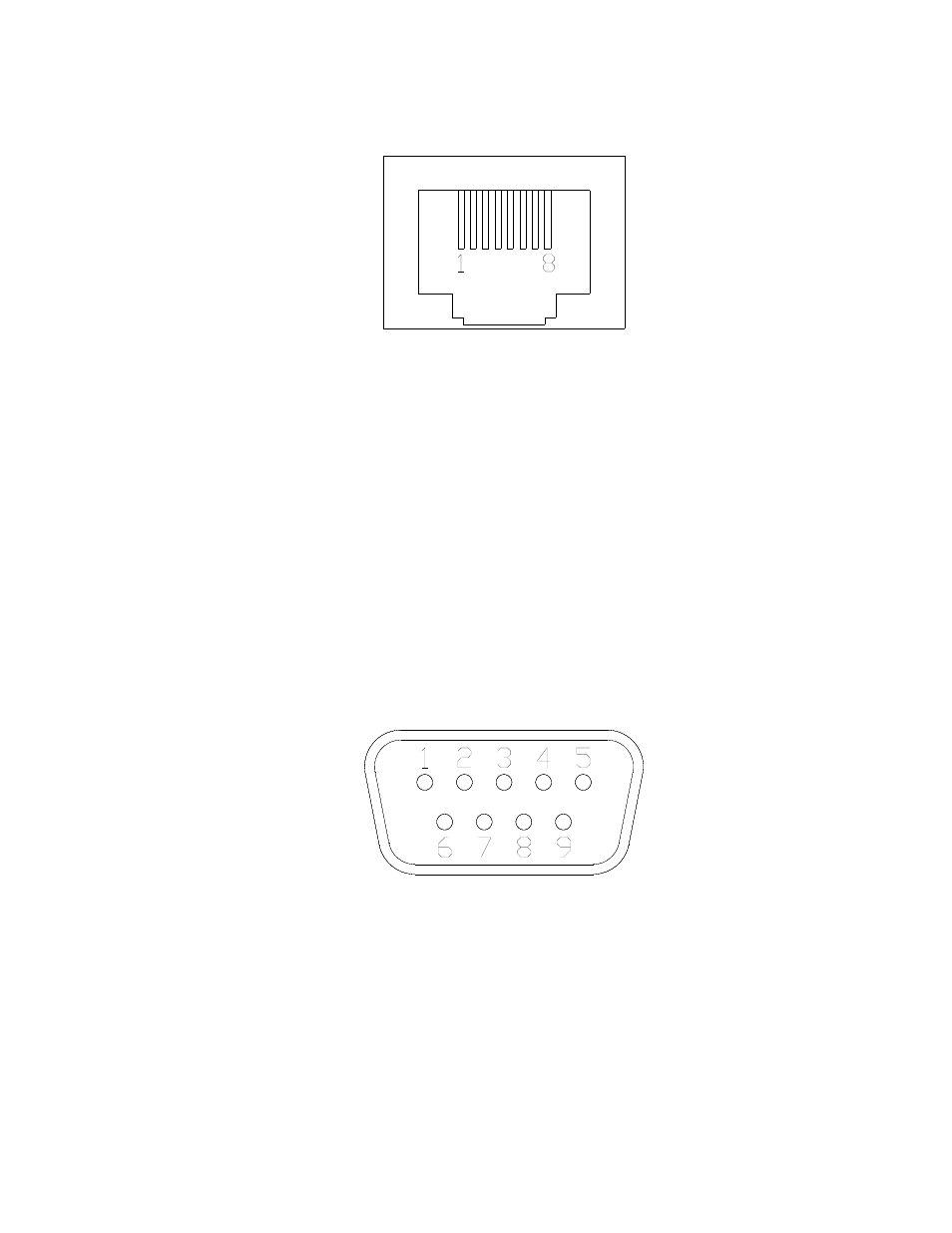

Ethernet Ports 1 thru 4 (Auto MDI/MDIX)

Pins
1

TX+/POE-

2

TX-/POE-

3

RX+/POE+

4

N/C

5

N/C

6

RX-/POE+

7

N/C

8

N/C

SFP

Serial

RS232

Pins
1

Data

Carrier

Detect

(DCD)

2

Receive

Data

(RD)

3

Transmit

Data

(TD)

4

Data Terminal Ready (DTR)

5

Ground

6

Data Set Ready (DSR)

7

Request To Send (RTS)

8

Clear To Send (CTS)
