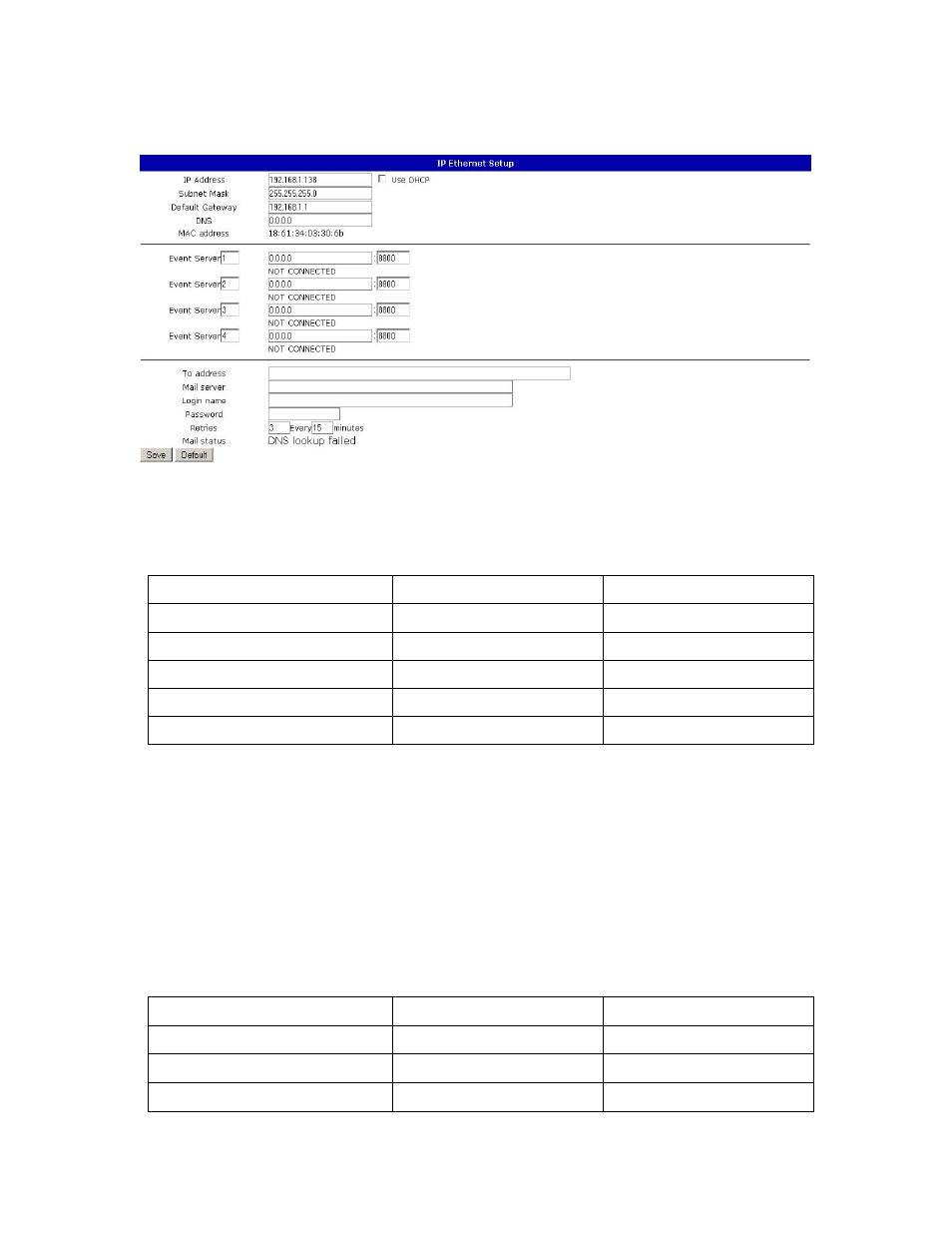

IP Ethernet Setup
The IP Ethernet Setup page permits the user to set the network address and network
access settings of the CX-6p-PoE. It also permits the user to designate up to four Pilot
servers for the CX-6p-PoE to connect and sent configuration data and status updates to.
These four IP configuration strings must be provided in dotted-quad format and have a
maximum length of 15 characters. Note that changes to these settings take place
immediately, so if you change the unit’s IP address in this screen and then save the
settings you will have to enter the new IP address in the browser address bar to
reconnect to the unit. Changes to the IP address or subnet mask will also cause any
active Pilot or serial port network connections to disconnect. Those connections will
then attempt to reconnect with the new network settings.
The DNS is an optional field. If a valid DNS address is provided, it will be used to look
up the address of the mail server provided by the user.
Setting Default Value Range
IP Address " 192.168.0.246 " 15 characters
Subnet Mask "255.255.255.0" 15 characters
Default Gateway " 192.168.0.143 " 15 characters
DNS “0.0.0.0” 15 characters
MAC address Unique for each unit 6 bytes hexadecimal
Setting Default Value Range
Pilot Server 1 - 4 Fixed
IP "0.0.0.0" 15 characters
Port 8800 8000 - 32767
