Step 2 – wait for heading p g – Ag Leader GeoSteer Installers Reference User Manual
Page 8
Step 2 – Wait For Heading
p
g
•

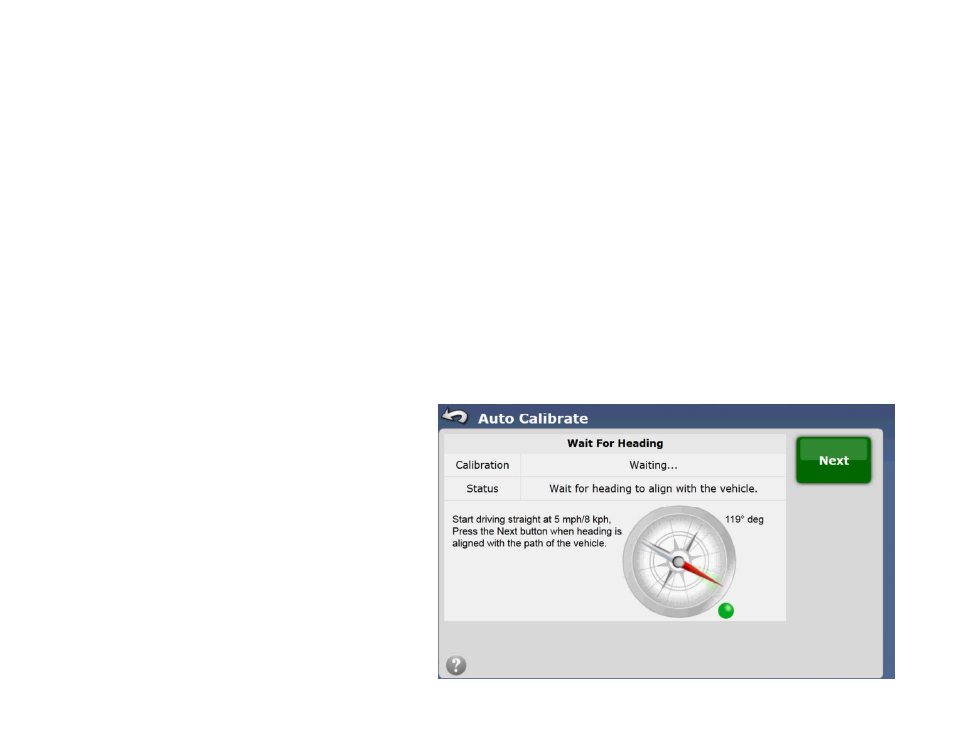

The Green Dot confirms the GCU is calculating a heading (if not it will be
d)
red)
•
Drive in a straight line at 5.0 mph (8.0 km/h)
•
Drive until calculated heading matches compass
–
Red Arrow is the calculated heading
–
Green Shaded Area is the compass
•
Click Next when these align
g
