Ag Leader GPS 2500B RTK Radio Installation Instructions - Manual (Page 2)

2 Installation Instructions

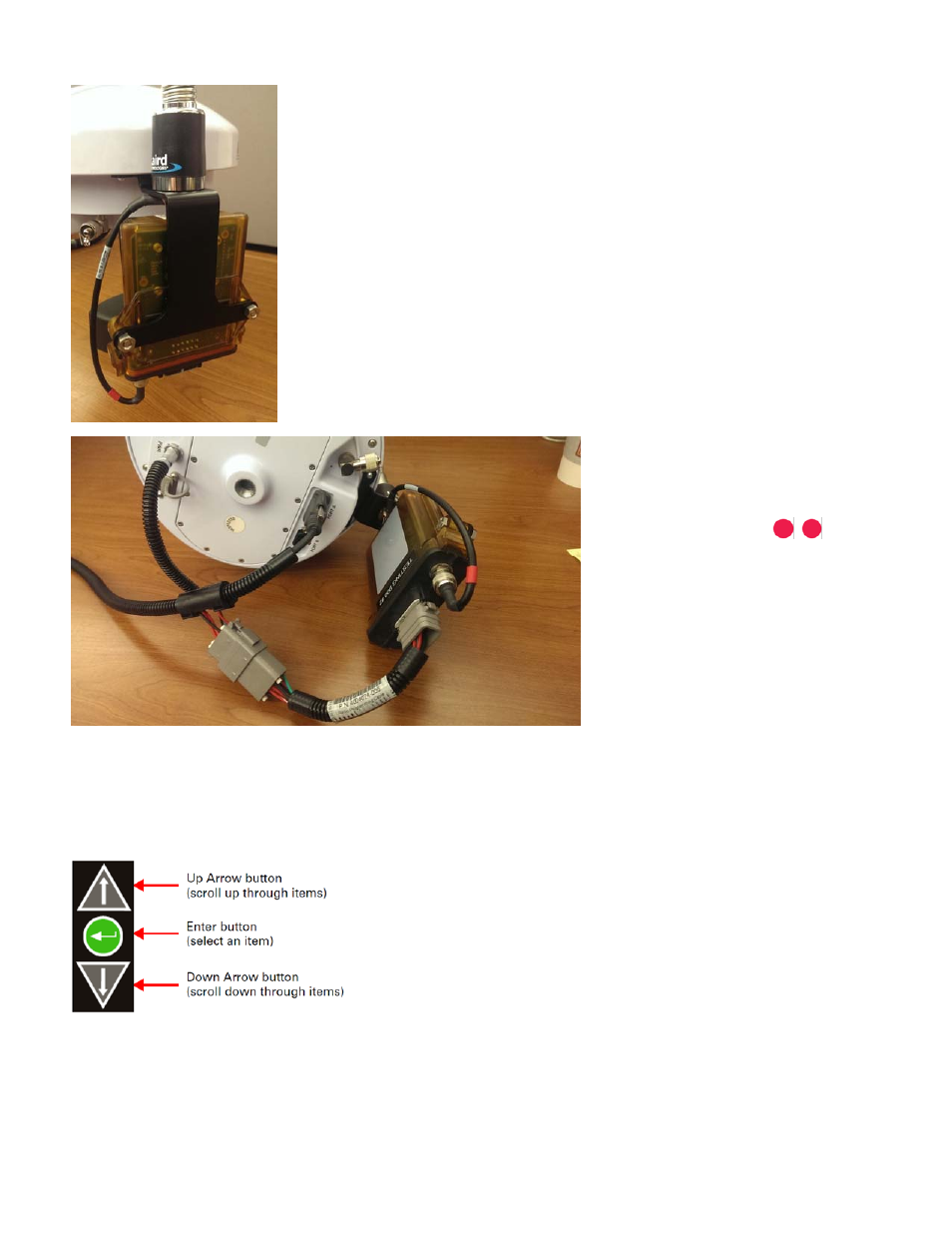

5. Install the RTK antenna onto the NMO mount.
6. Install cable 4004021-8 as
shown.
-a.Insert the round connector into the
PWR port on the bottom of the GPS
2500B. Align the red dots .
-b.Insert the 9-pin serial connector
into Port A on the bottom of the GPS
2500B.
-c.Insert the 12-pin Deutsch connector
into the RTK Radio
adapter/programming cable
(p/n 4004024-006).
7. Apply power to the GPS 2500B and verify the internal light on the RTK Radio powers.
-a. Once RTK corrections are being sent to the radio, the Green LED will flash Yellow about once per
second.
Configure the GPS 2500B to send corrections to the external radio using the LCD panel and the buttons
shown below:
8. Configure the Data Output Format:
-a. GPS > Configure > Data PORT A
-b. Select CMR+ or RTCMv3 (if using GLONASS)
