Ag Leader Trimble MS750 Base Station Tee Cable Instructions - Manual

2202 South Riverside Drive, Ames, IA 50010
Phone: 515-232-5363 Internet: http://www.agleader.com
1/11/2011 Rev A
1
Trimble MS750 tee cable (p/n: 4002303-10) with a Repeater Radio kit (p/n: 4100652-1):

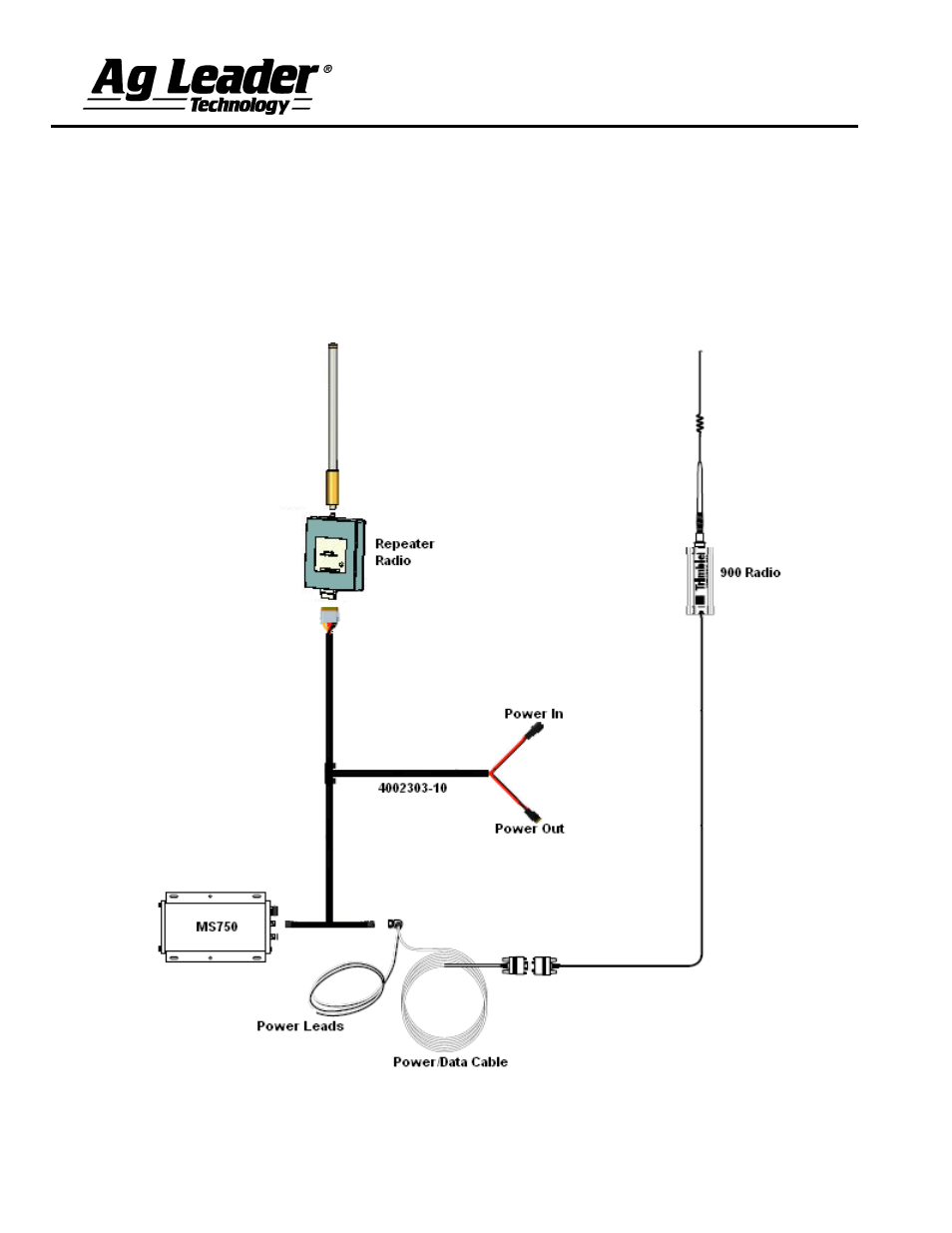

• Install the tee cable between the power/data connection at the MS750 Base Station on Port A as shown below.
• Configure the MS750 to output CMR+ connections on the connected port at 38400 8N1.
• Configure the Radio as a Base Station with your Base Station ID using AF Link program.
o
If using a Repeater, the yellow wire should be in Pin 12 of the 12-pin Deutsch connection
o
If using a Tower Radio, the yellow wire should be in Pin 9 of the 12-pin Deutsch connection
• Connect the power-in lead to a fused 12v power supply to provide power to the Repeater Radio.
