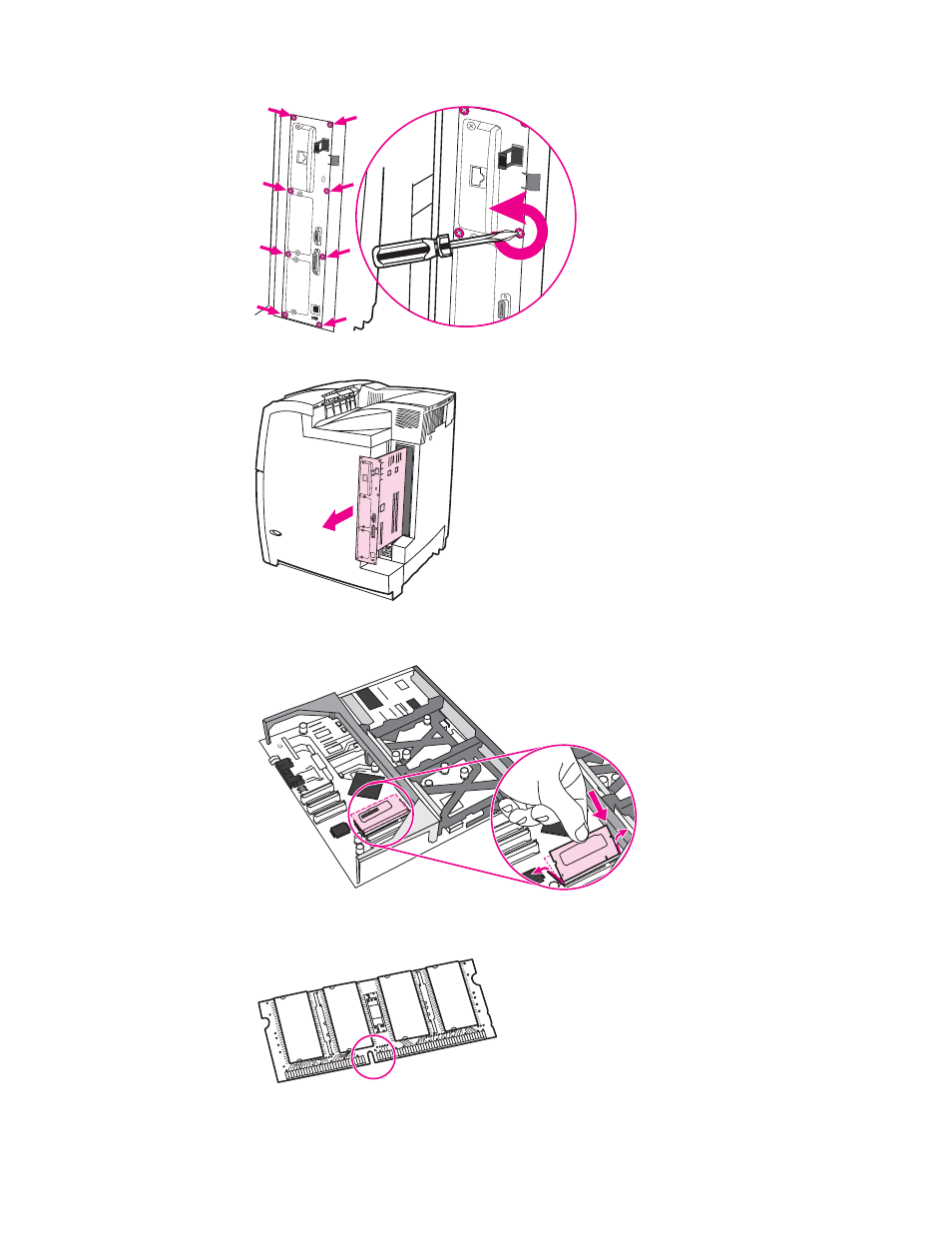

4. Using a #2 Phillips screwdriver, remove the eight screws holding the board in place, and

set them aside.

5. Slide out the formatter board and set it on a clean, flat, grounded surface.

6. To replace a DDR DIMM that is currently installed, spread the latches apart on each side

of the DIMM slot, lift the DDR DIMM up at an angle, and pull it out.

7. Remove the new DIMM from the antistatic package. Locate the alignment notch on the

bottom edge of the DIMM.
