HP Power Distribution Unit Management Module User Manual
Page 20
HP PDR Management Module web interface 20
Click Help to view online help.
Click the PDR Breakers (Panel 1) or PDR Breakers (Panel 2) tab to display the current power and the load
percent for each position.
The following information is displayed for each breaker:
•
Phase—The phase position of the breaker
•
Position—The position to where the breaker is connected to on Panel 1
•
Power (KW)—The current power of the breaker
•
Irms (A)—Root-Mean-Square current across through the breaker
•
Rating (A)—The current rating of the breaker
•
Load (%)—Irms (A) / Rating (A) x 100%

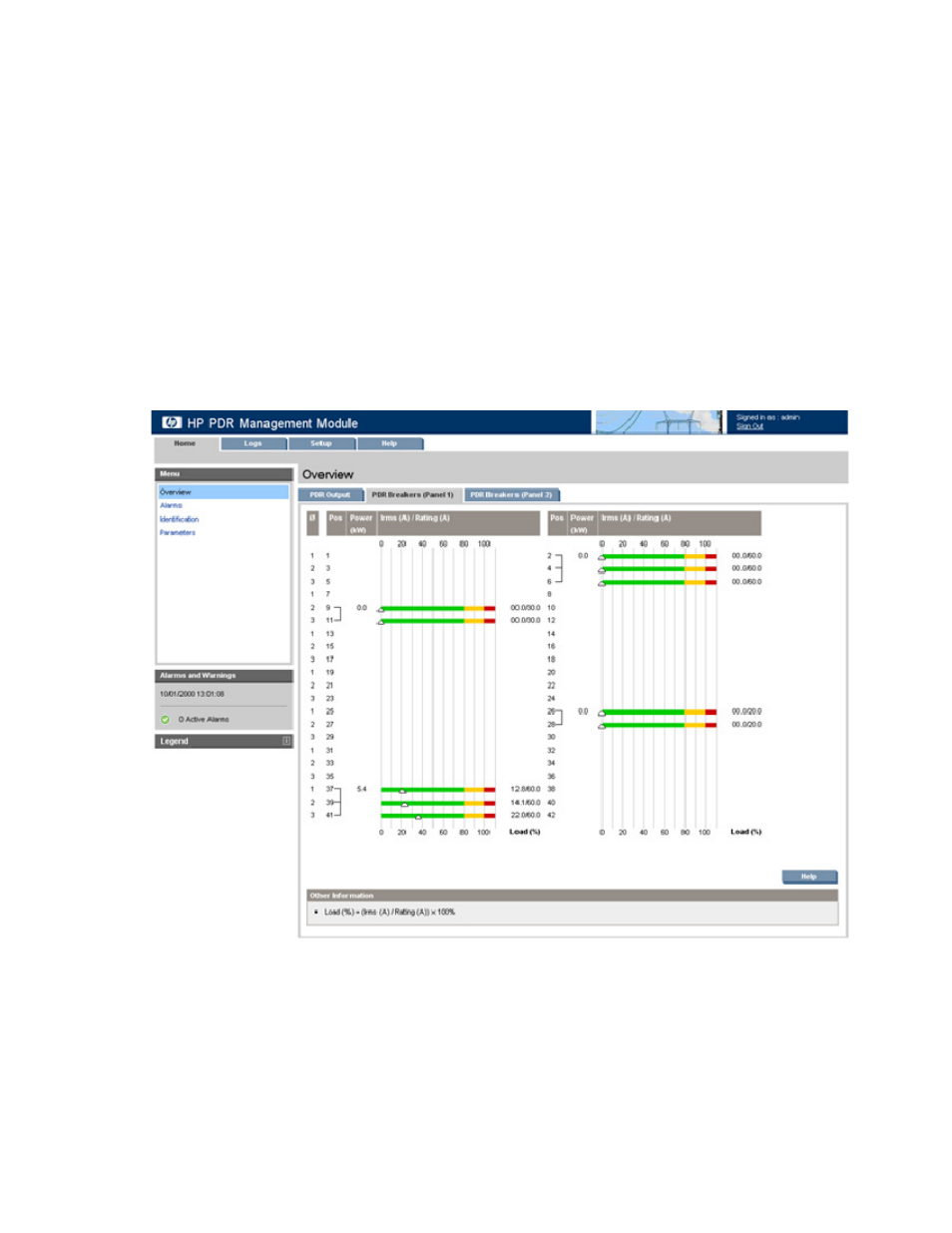

The following screen shows an example of the information available for the PDR Breakers (Panel 1) -
North American model.
