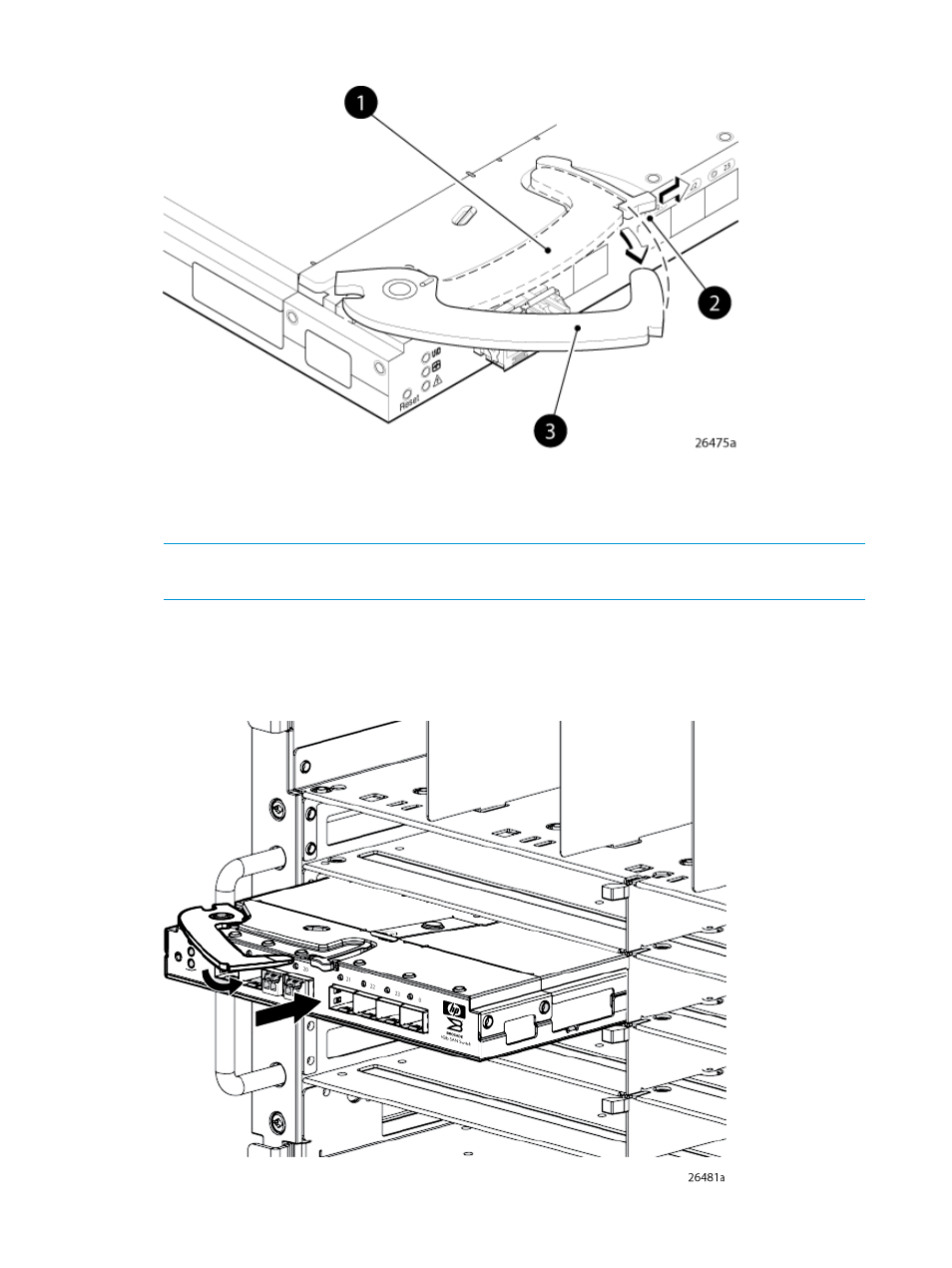

Figure 4 Releasing the installation handle

2. Handle latch

1. Installation handle in latched position

3. Installation handle (released)

NOTE:

The Brocade 8Gb SAN Switch is a hot-pluggable device. The enclosure power may

be on or off during installation.

4.

Align the Brocade 8Gb SAN Switch with the appropriate interconnect bay according to your
enclosure’s specific configuration. Push the switch firmly into the interconnect bay. See

Figure 5 (page 12)

.

Figure 5 Installing the Brocade 8Gb SAN Switch into an interconnect bay

12

Setup
