2 Setup

Shipping carton contents

Figure 3 (page 10)

identifies the 8Gb SAN Switch shipping carton contents:

Brocade 8Gb SAN Switch for HP BladeSystem c-Class installation instructions

SFP dust covers (must be inserted in ports where Small Form-factor Pluggable (SFP) optical
transceivers are not installed)

Four Short Wavelengh (SWL) 8Gb SFPs (in styrofoam packing)

One Brocade 8Gb SAN Switch; models include:

Brocade 8/12 SAN Switch for HP BladeSystem c-Class with twelve active ports

Brocade 8/24 SAN Switch for HP BladeSystem c-Class with sixteen internal and eight
external active ports

Brocade 8/24 SAN Switch Power Pack+ for HP BladeSystem c-Class with sixteen internal
and eight external active ports

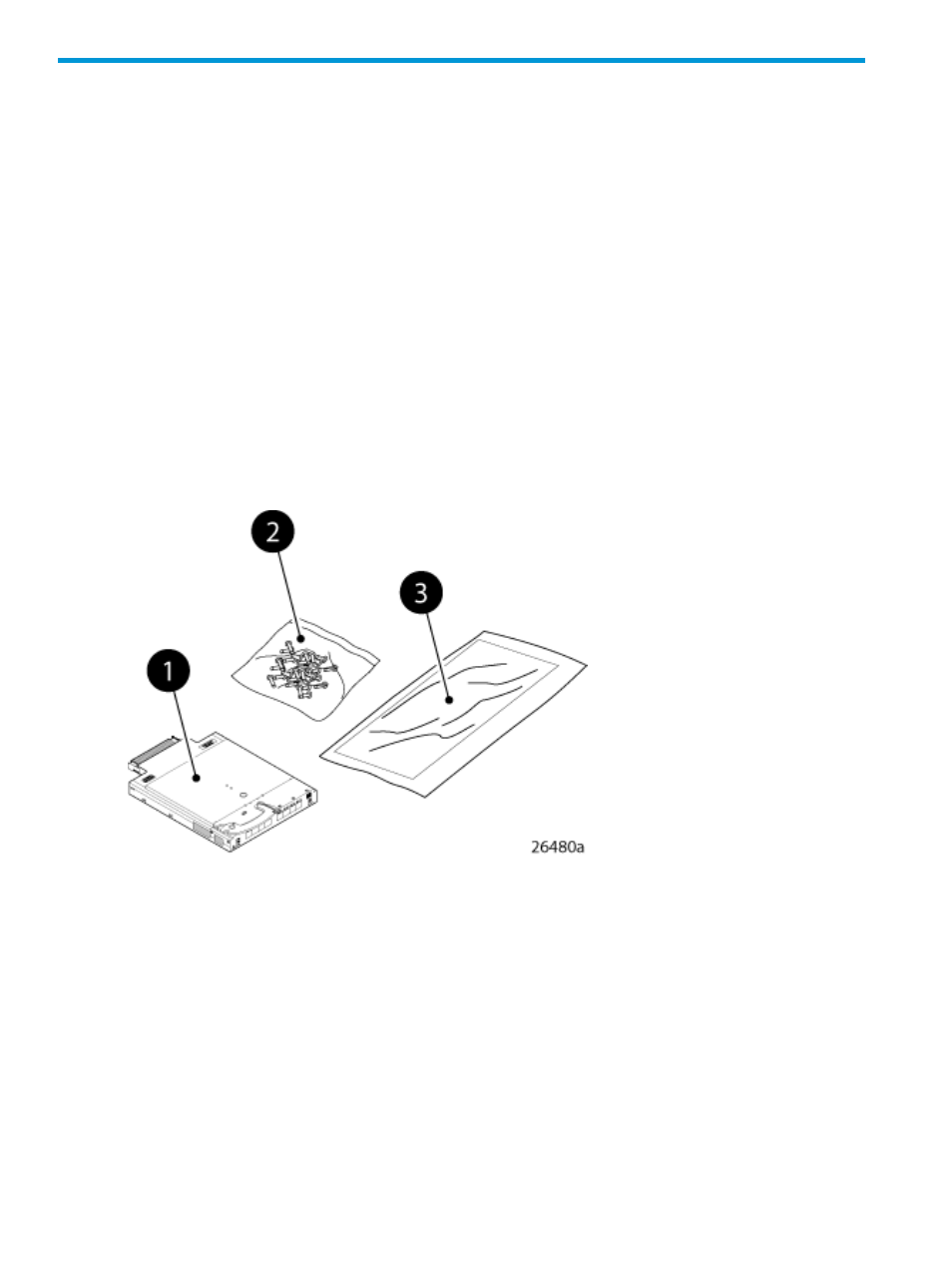

Figure 3 Carton contents

2. Dust covers for empty SFP ports

1. Brocade 8Gb SAN Switch, ships with four Short
Wavelengh (SWL) 8Gb SFPs, (in styrofoam packing)

3. Brocade 8Gb SAN Switch for HP BladeSystem c-Class
installation instructions

Installation and safety considerations

The 8Gb SAN Switch installs in the I/O bays in the rear of the HP BladeSystem c-Class enclosure.
See the appropriate BladeSystem Enclosure Setup and Installation Guide for specific enclosure
requirements.

Installing multiple switches

If you do not have a DHCP server connected to the OA, install and configure one 8Gb SAN Switch
at a time. This is required so that Ethernet IP address conflicts do not occur with duplicate default
Ethernet IP addresses.
