Appendix D: Tower and Drive Installation
AXIS StorPoint CD E100 User’s Manual 149
LED Indicators The StorPoint CD front panel indicators show the status of the unit. The
indicators have the following functions:
• Status - Flashes during startup. The light turns solid green when the
StorPoint CD is ready for use.
• SCSI - Flashes to indicate disc access.
• Network - Flashes to indicate the presence of network traffic.
• Power - Remains on to indicate that power is present in the unit.
Refer to “The Front Panel Indicators” on page 129 for a list of error conditions.
Serial Number The StorPoint CD serial number is found on the labels at the underside of the
server unit and at the back of the tower.
IDE Server
Network Connector The StorPoint CD is equipped with a 100baseTX connector. The internal
network connector will automatically adjust to 10baseT or 100baseTX, full or
half duplex mode. Use a Category 5 UTP cable for the 100baseTX operation.
Note:
❏ When the StorPoint CD has been installed in a tower, the network
connector is found on the network connection board that appears at the
back of the tower. Note that the network cable cannot be connected directly
to the server unit.

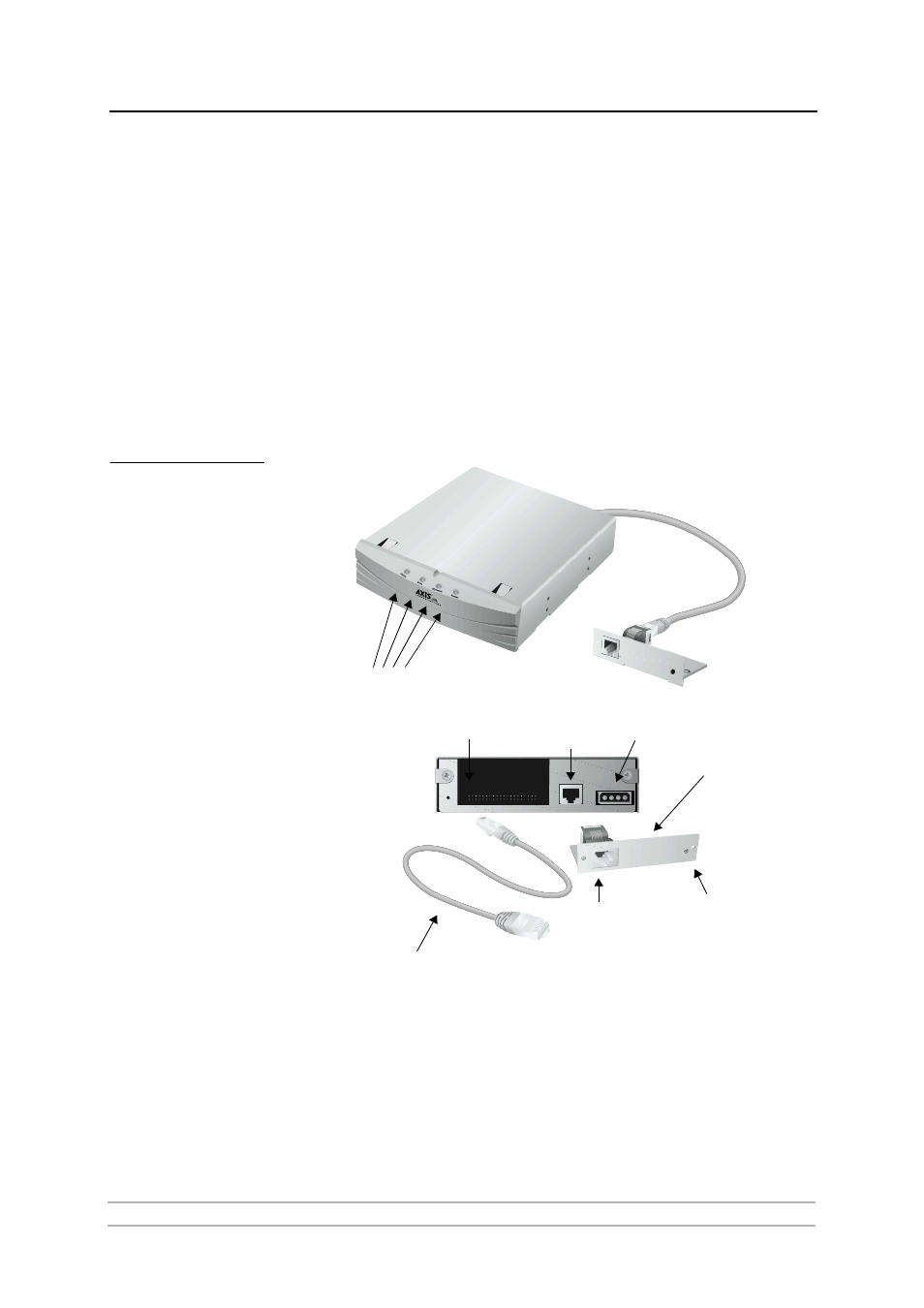

Front panel indicators
IDE connector(s)
connector
Push button
Power supply
Cat 5 cable
board
connector
Connection board
Network
Network connection
