Component identification 9
PCI expansion slot definitions
Slot Type Length Connector Interconnect
1 PCIe2 Full x16 x16
1 Optional PCI-X Full 133 MHz/3.3 V 64 bit
2 PCIe Half x16 x4

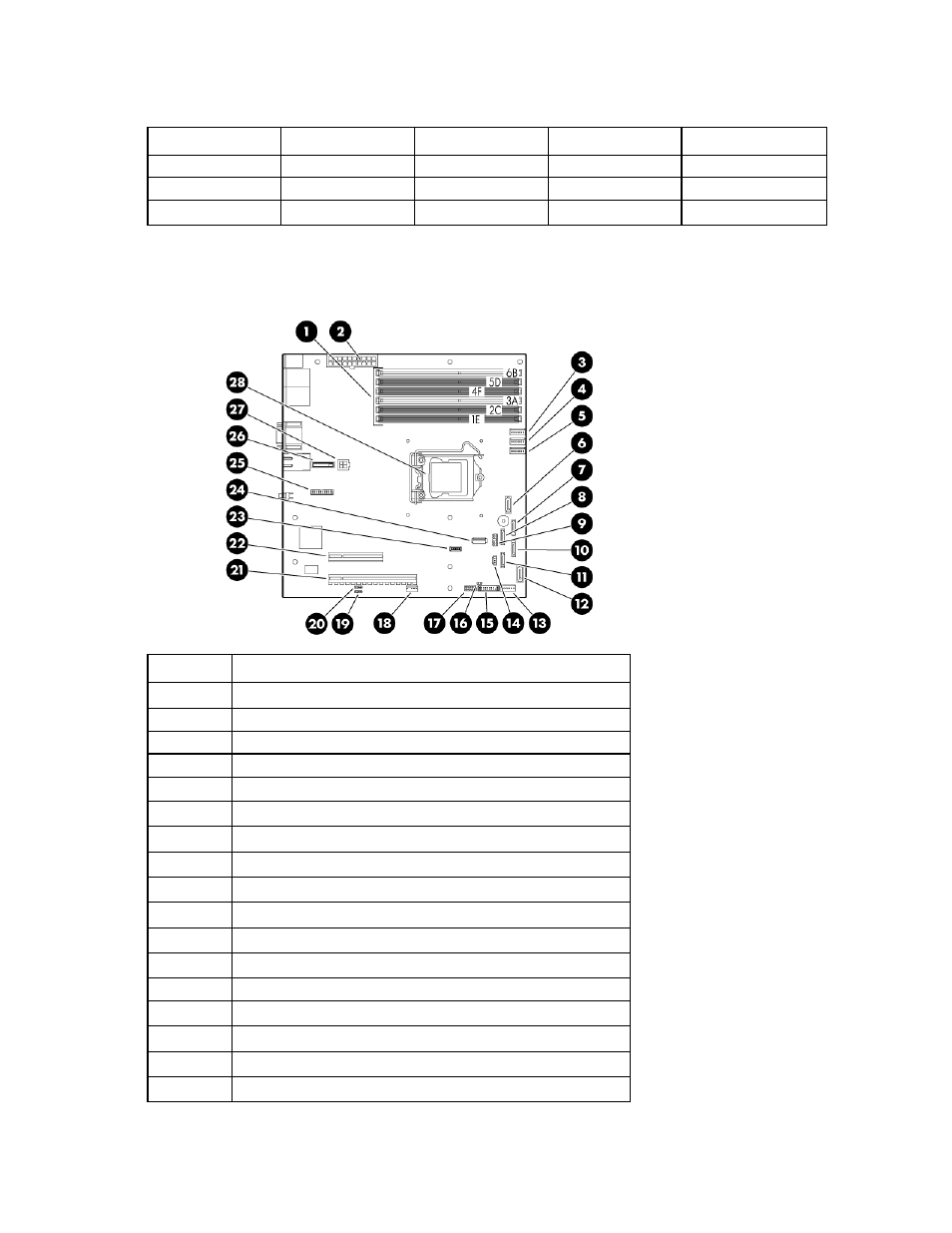

System board components
Item Description
1
DIMM slots (6)
2 24-pin ATX system board power connector
3 Processor fan 1 cable connector
4 Processor fan 2 cable connector
5
Processor fan 3 cable connector
6 Optical drive SATA cable connector
7 Hard drive 4 SATA cable connector
8 Hard drive 3 SATA cable connector
9 Hard drive backplane SGPIO connector
10 Hard drive 2 SATA cable connector
11 Hard drive 1 SATA cable connector
12 Reserved
13
System fan 4 cable connector
14 Hard drive backplane 12C cable connector
15 Front panel board cable connector
16 External SAS hard drive LED cable connector
17 Front USB port cable connector
