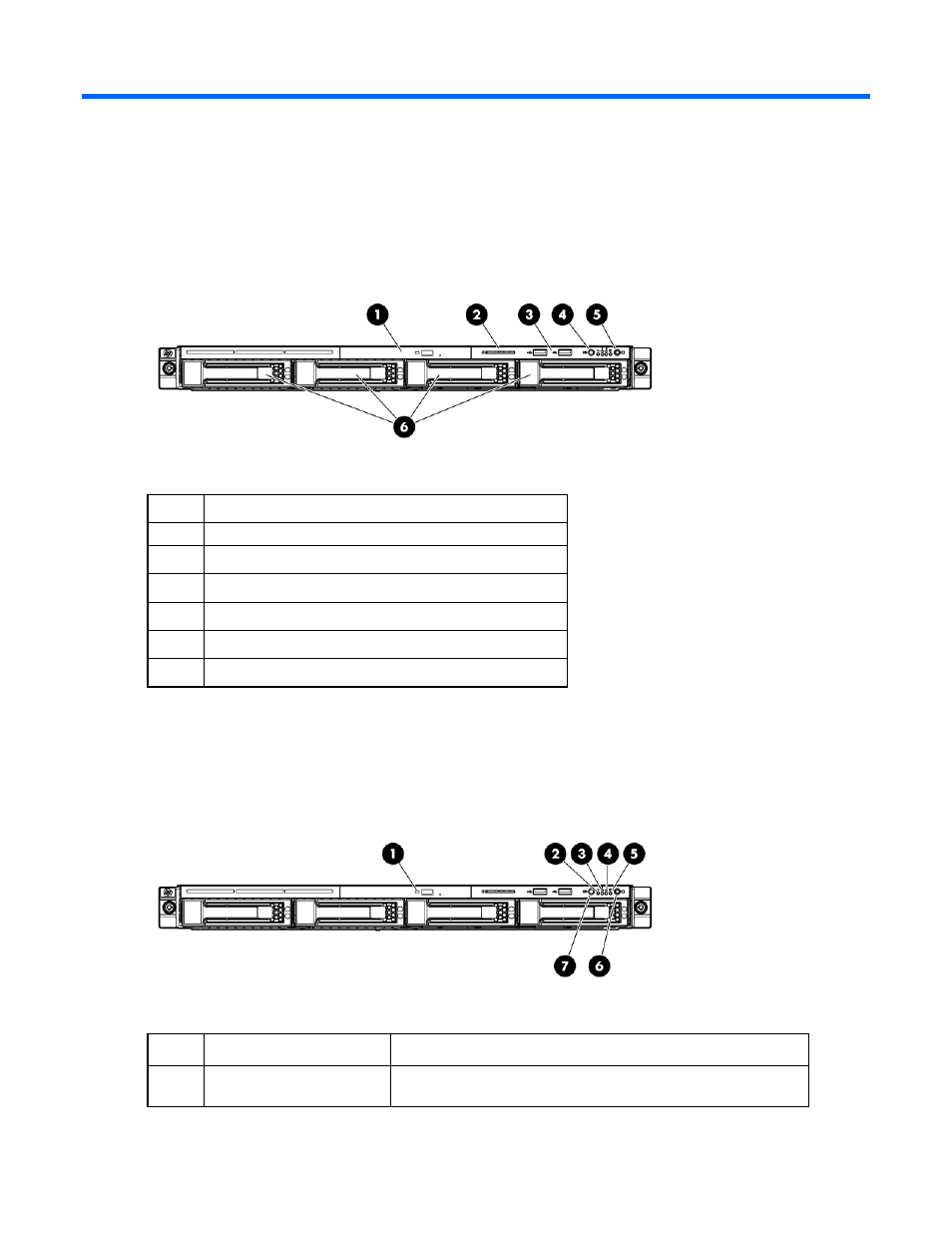

Component identification 6

Component identification

Front panel components

Item

Description

1

Optical drive

2

Serial label pull tab

3

USB ports (2)

4

Unit Identification (UID) button/LED

5

Power/standby button LED

6

Hard drive bays (4)

Front panel LEDs and buttons

Item

Description

Status

1

Optical drive LED

On = Drive is in use.
Off = Drive is not active.
