Component identification 7
Item Description Status
2 Internal health LED Green = System health is normal.
Amber = System health is degraded. To identify the component in a
degraded state, see "System board LEDs (on page
11 )."
Red = System health is critical. To identify the component in a critical
state, see "System board LEDs (on page
11 )."
Off = System health is normal (when in standby mode).
3 NIC 1 link/activity LED Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No network link exists.
If power is off, view the LEDs on the RJ-45 connector. See "Rear panel
LEDs and buttons (on page
8 )."
4 NIC 2 link/activity LED Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No network link exists.
If power is off, view the LEDs on the RJ-45 connector. See "Rear panel
LEDs and buttons (on page 8 )."
5 Drive activity LED Green = Drive activity is normal.
Off = No drive activity exists.
6
Power On/Standby button
and system power LED Green = Normal (system on)
Amber = System is in standby, but power is still applied.
Off = Power cord is not attached or the power supply has failed.
7 UID button/LED Blue = Identification is activated.
Flashing blue = System is being managed remotely.
Off = Identification is deactivated.

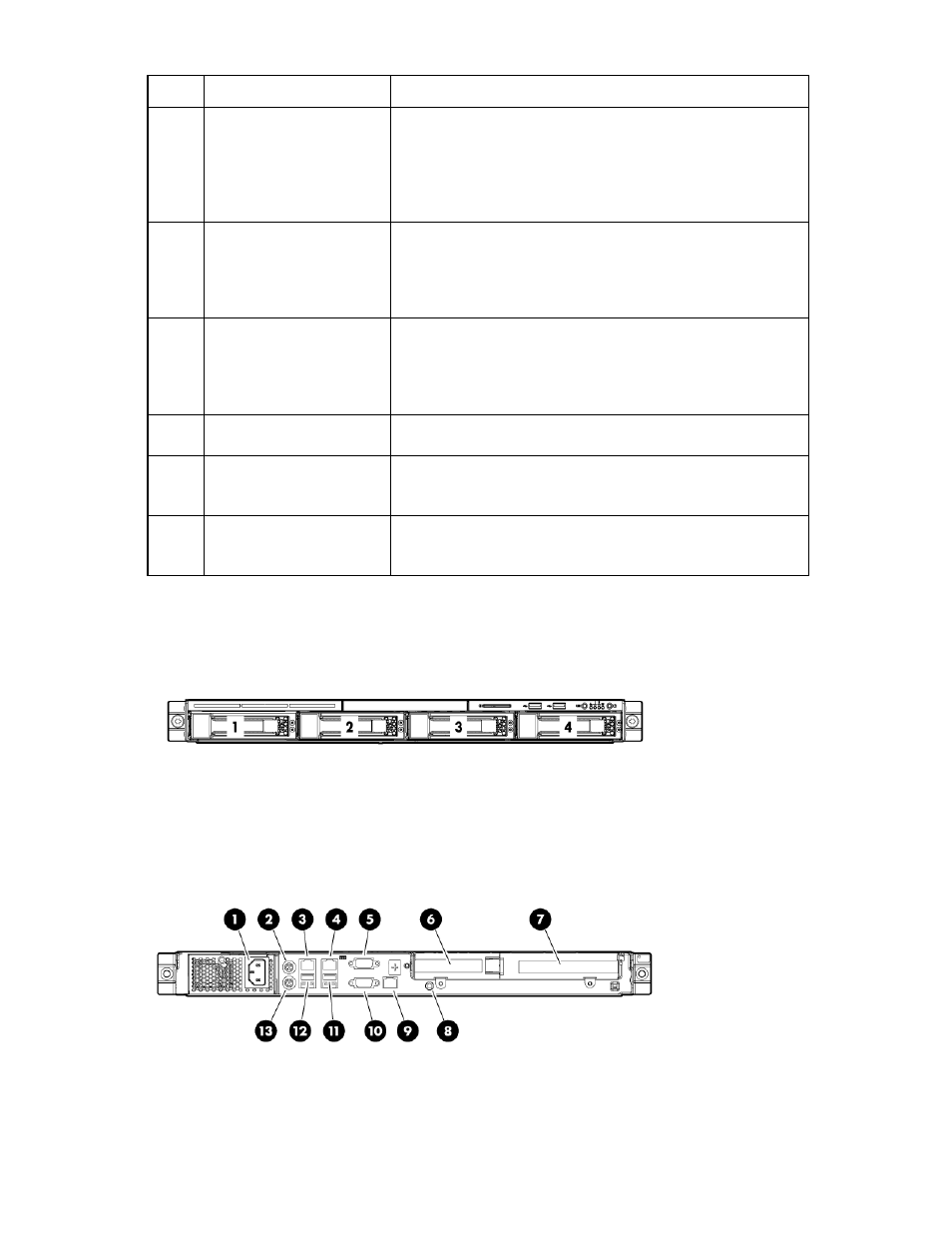

SAS and SATA device numbers
Rear panel components
