HP XP Command View Advanced Edition Software User Manual
Page 60

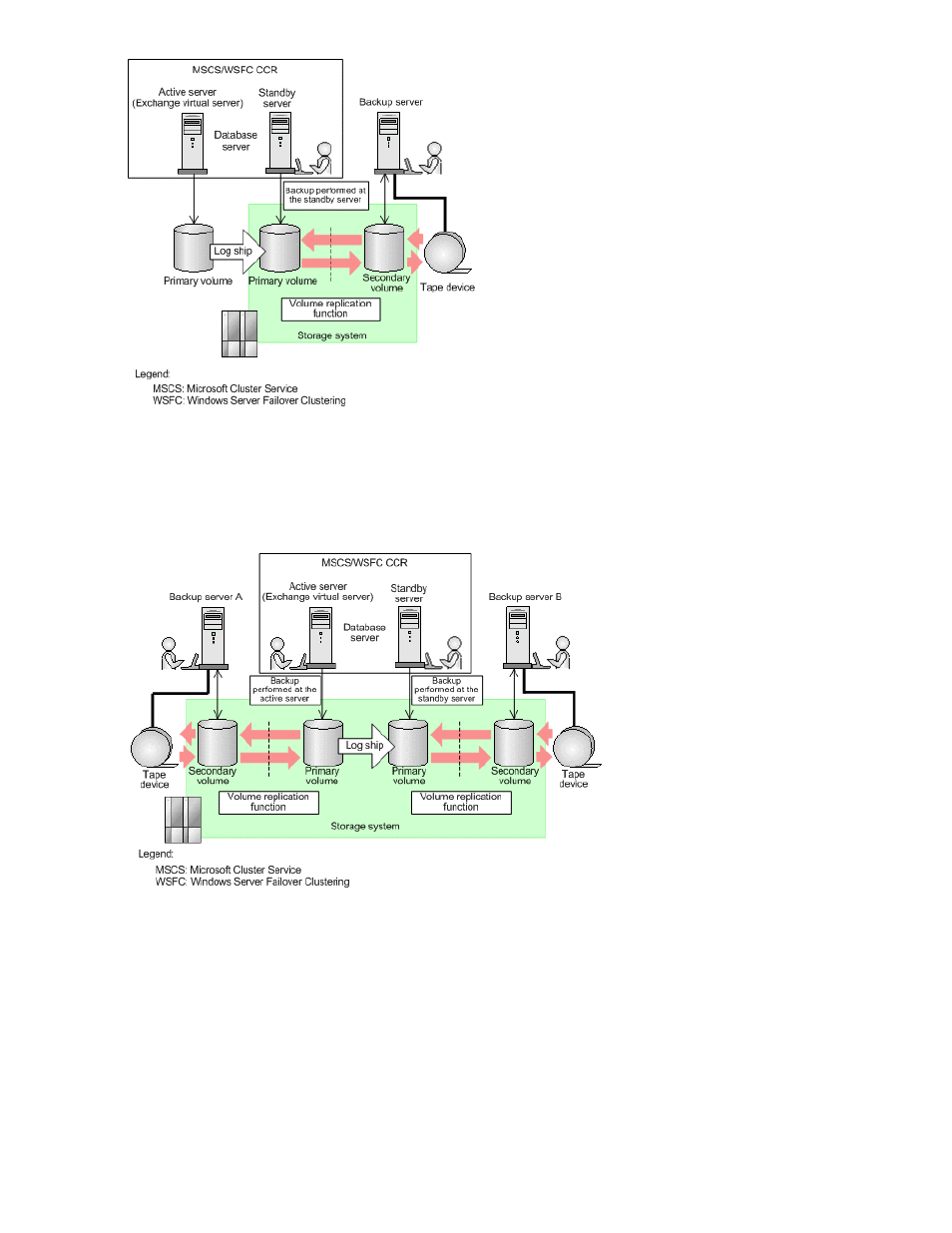

Figure 27 Example of a CCR configuration (only the standby server is used)
Configuration in which different backup servers are used for the active and standby servers
The following figure shows an example of a CCR configuration in which different backup servers are
used for the active and standby servers.
Figure 28 Example of a CCR configuration (active and standby servers use different backup servers)
Configuration in which the same backup server is used for the active and standby servers
The following figure shows an example of a CCR configuration in which the same backup server is
used for the active and standby servers.
Application Agent system configurations
60
