Backing up and restoring in SCR configurations
This section provides examples of how to back up and restore data in SCR configurations. The
explanations in this section use operation examples for Exchange Server 2007.
System configuration
A system configuration example is shown below.

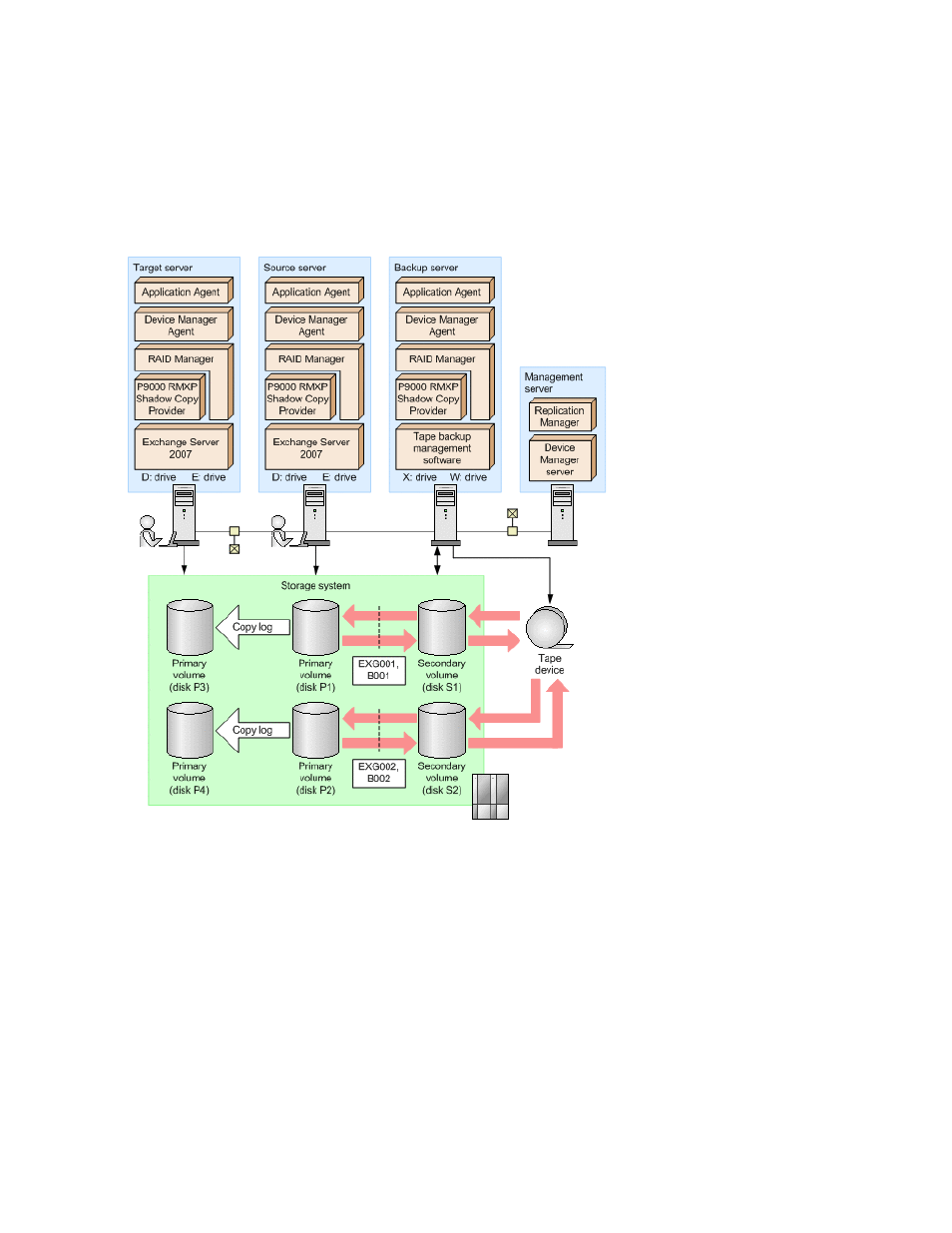

Figure 128 System configuration for an SCR system
For the backup and restoration examples below, please assume the following:
• If a backup operation is backing up a secondary volume to a tape device, another primary volume
cannot be backed up until the current operation finishes.
• NetBackup is the tape backup management software on the backup servers, and the configuration
definitions for the tape library devices are defined.
• The dictionary map files are up to date.
The SCR system is configured as follows:
• The primary volume is NTFS-formatted, and the drive letters of volumes are set as follows.
Operation for Exchange databases 474
