Downloading the DPM Management GUI
NOTE:
At least 100 MB of free disk space must be available on the hard drive of your host system for the
DPM Management GUI and WebStart software. Install WebStart from the browser used to access the
DPM Management GUI. For example, you cannot install WebStart using Netscape and run the DPM
Management GUI from Internet Explorer.
1. In your web browser, type the IP address of the DPM management port, labeled MGMT (for
example, http://10.0.0.1). The following screen is displayed.
NOTE:
The version number of the DPM Management GUI is listed in the following screen.

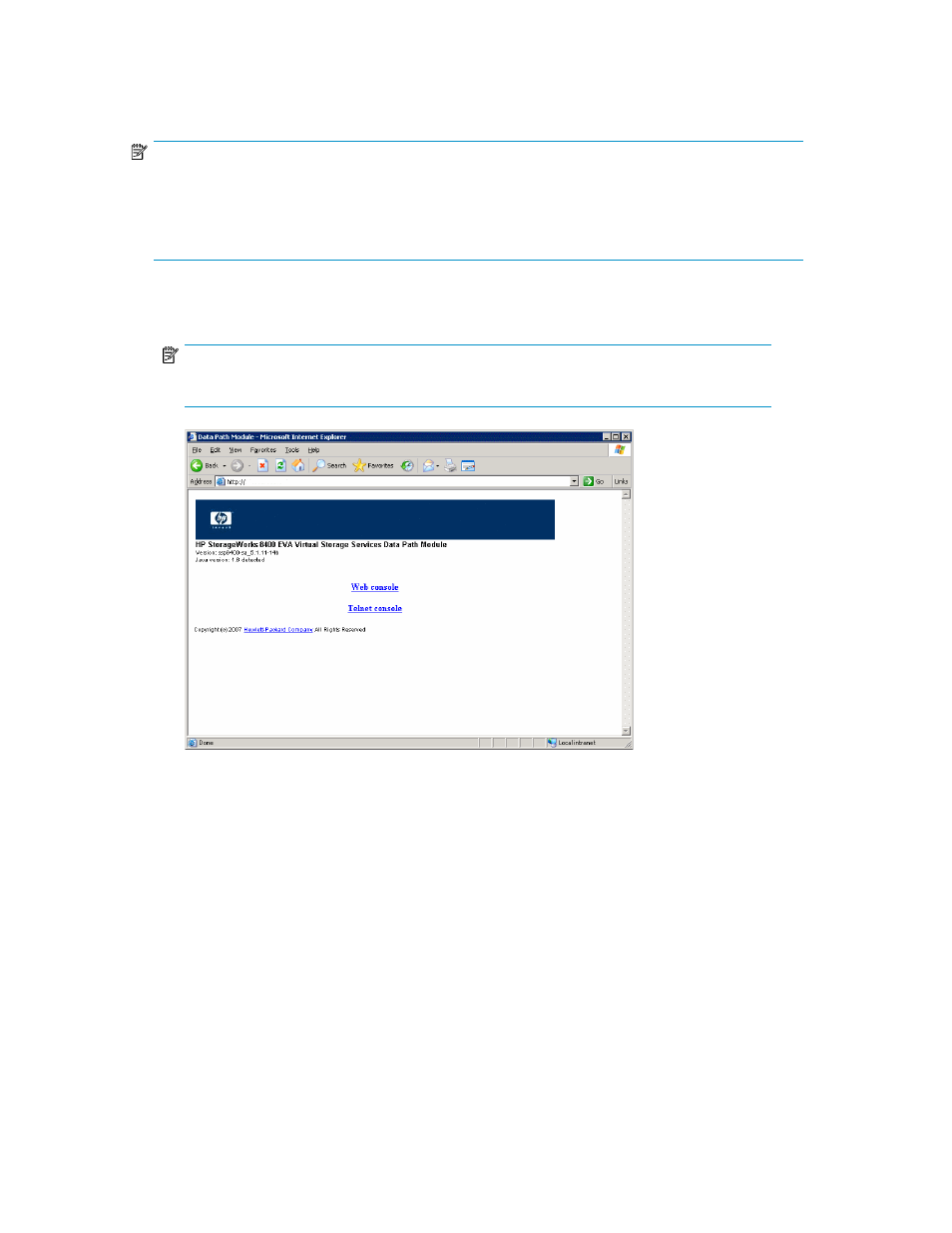

Figure 4 HP Storage Services Platform screen
2. Click Web Console to start loading the DPM Management GUI application. WebStart downloads
the DPM Management GUI from the web server and installs it on your host system.
3. Click Run when WebStart prompts Do you want to install this application?
The DPM Management GUI application starts up automatically after WebStart downloads the
jar
file.
