34 HP ProLiant DL560 Server User Guide

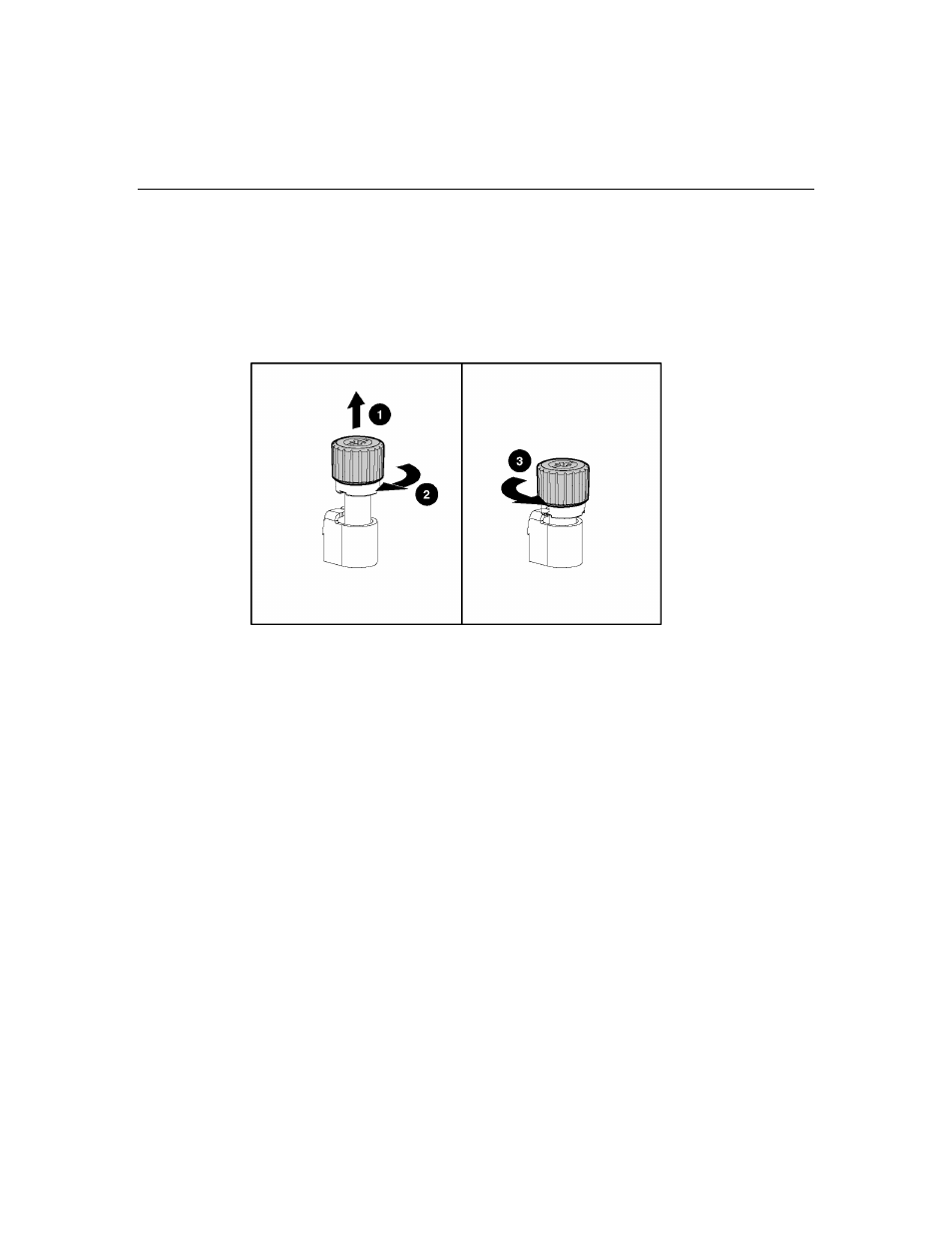

2. Tighten the thumbscrews to secure the PCI riser cage:
a. Lift the thumbscrew knobs (1).
b. Turn the thumbscrews clockwise while pressing down, until tightened
(2).
c. Turn the thumbscrews counterclockwise to lower thumbscrew knobs (3).
Removing the Power Module
1. Power down the server ("Powering Down the Server" on page 29).
