Hot-plug fan led – HP ProLiant DL560 Server User Manual

Page 27

background image

Server

Component

Identification

27

Item Description

Fan

Zone

1 Fan

1

Processor

2 Fan

2

Processor

3 Fan

3

Processor

4 Fan

4

Processor

5 Fan

5

Processor

6 Fan

6

Processor

7 Fan

7

Processor

8 Fan

8

Processor

9

Fan 9

Power supply

10

Fan 10

Power supply

NOTE: For information on fan redundancy, refer to "Redundant
Hot-Plug Fan Option (on page 68)."

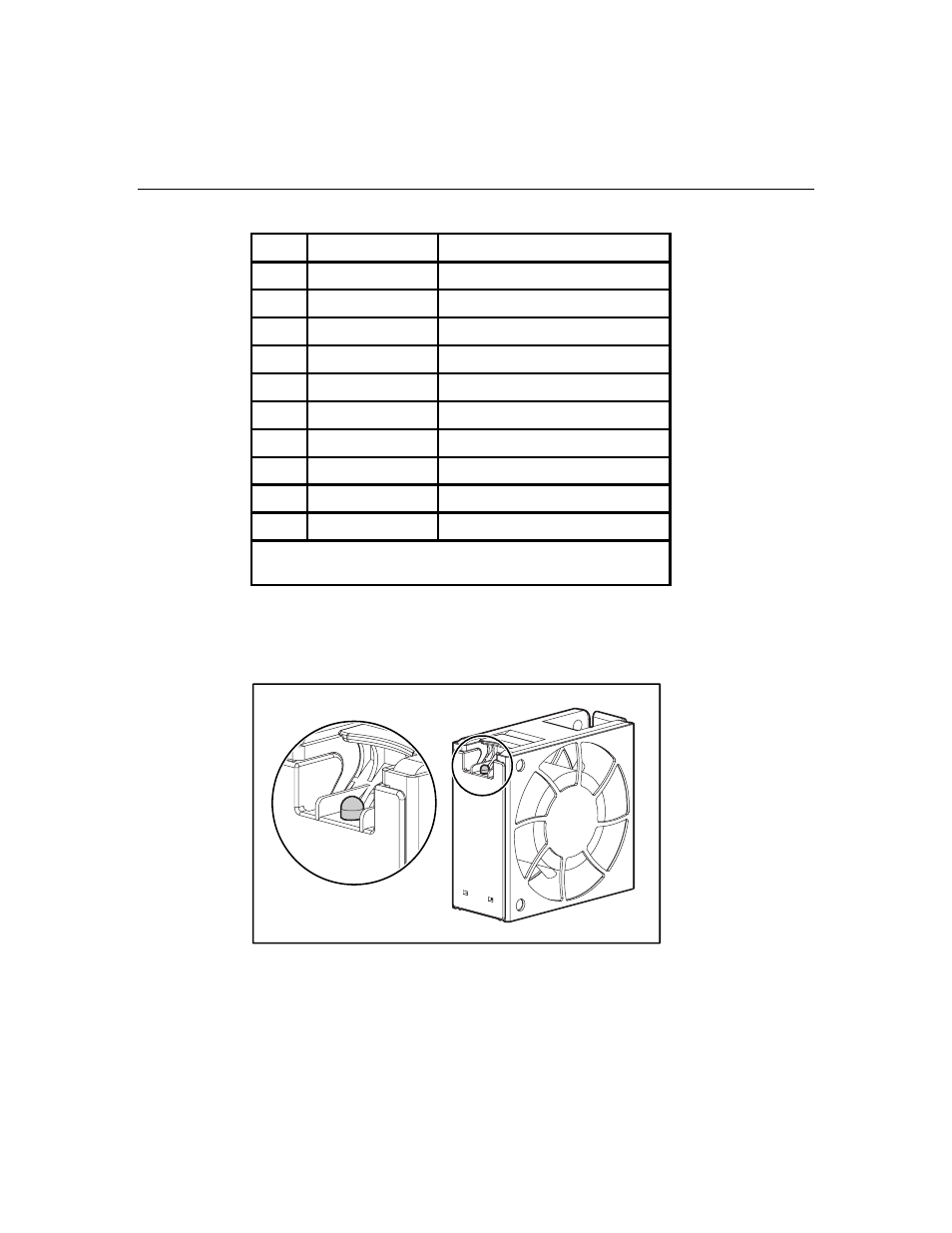

Hot-Plug Fan LED
