58

Parts catalog

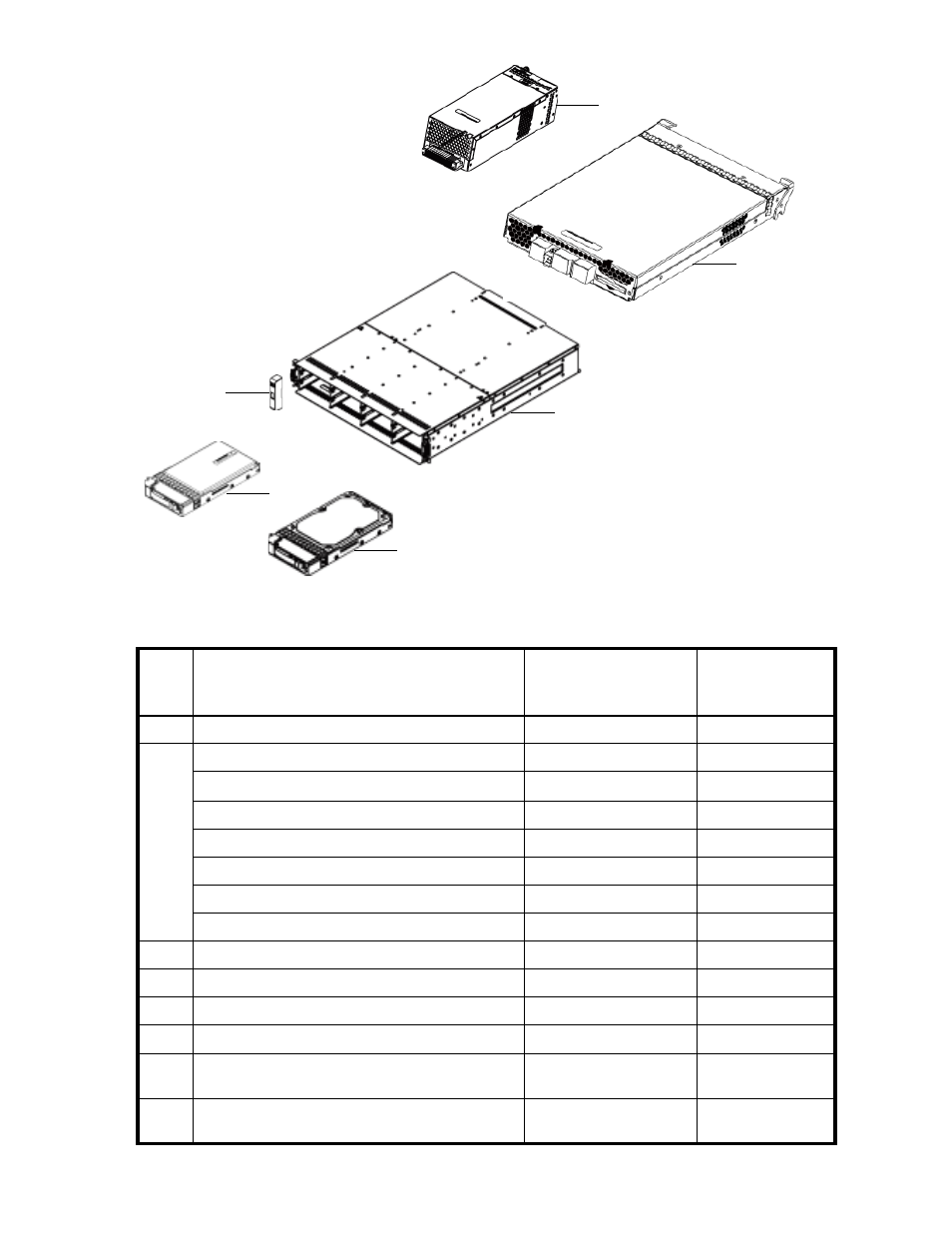

Figure 6

MSA2000 3.5 12-drive enclosure exploded view

Table 13

MSA2000 3.5 12-drive enclosure parts list

Item

Description

Spares part number

CSR

Mandatory

Optional

1

SPS-BLANK,HDD

481344-001

Mandatory

2

Hard drives

a) SPS

—DRV, HD 146GB MSA2 3.5” 15K DP SAS

480937-001

Mandatory

b)

SPS

—DRV, HD 300GB MSA2 3.5” 15K DP SAS

480938-001

Mandatory

c) SPS—DRV, HD 400GB MSA2 3.5” 10K DP SAS

480939-001

Mandatory

d) SPS—DRV, HD 500GB MSA2 3.5” 7.2K SATA

480940-001

Mandatory

e) SPS—DRV, HD 750GB MSA2 3.5” 7.2K SATA

480941-001

Mandatory

f) SPS—DRV, HD 1TB MSA2 3.5” 7.2K SATA

480942-001

Mandatory

3

SPS-EAR KIT

508296-001

Mandatory

4

SPS-CHASSIS-w/midplane

481321-001

Mandatory

5

SPS-ENCLOSURE,I/O MODULE

481342-001

Mandatary

6

SPS-POWER SUPPLY

481320-001

Mandatory

Not

shown

SPS-RAIL KIT VLS9000

457637-001

Mandatory

Not

shown

SPS-CABLE KIT

(CLI and SAS expansion cables)

481322-001

Mandatory

6

5

1

2

3

4
