HP 2312fc and 2324fc Modular Smart Array user guide 31
6 LED descriptions

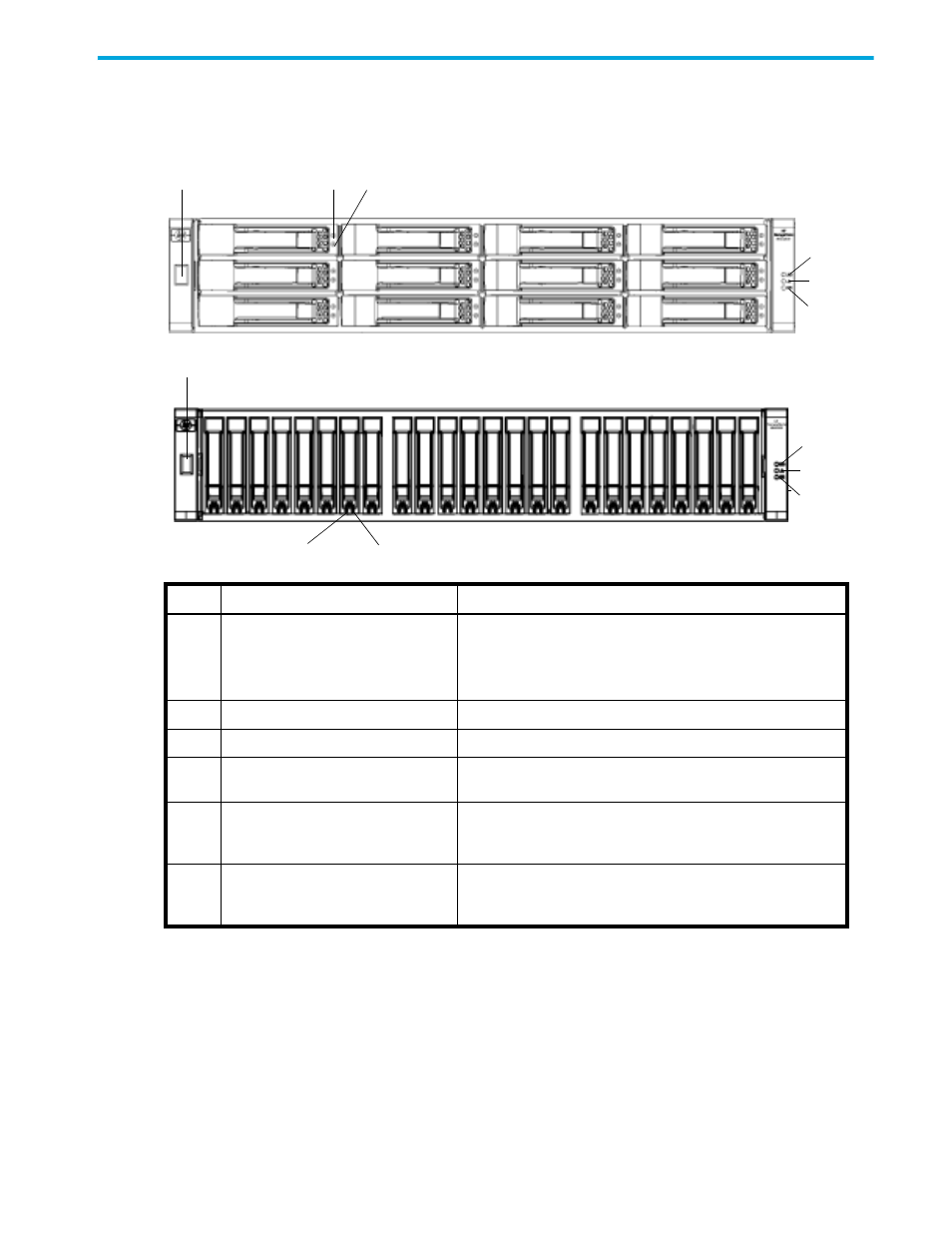

Front panel LEDs
LED Description Definition
1 Enclosure ID Green — On
Enables you to correlate the enclosure with logical views
presented by management software. The enclosure ID for a
controller enclosure is 1.
2 Fault UID See Table 5 , Hard drive LED combinations
3 Online/Activity See Table 5 , Hard drive LED combinations
4 Unit Identification (UID) Blue — Identified
Off — Not identified
5 Fault ID Amber — Fault condition exists. The event has been
acknowledged but the problem needs attention.
Off — No fault condition exists.
6 Heartbeat Green — The enclosure is powered on with at least one power
supply operating normally.
Off — Both power supplies are off; the system is powered off.
1 2 3
4
5
6
1
4
5
6
3 2
