Connecting hosts

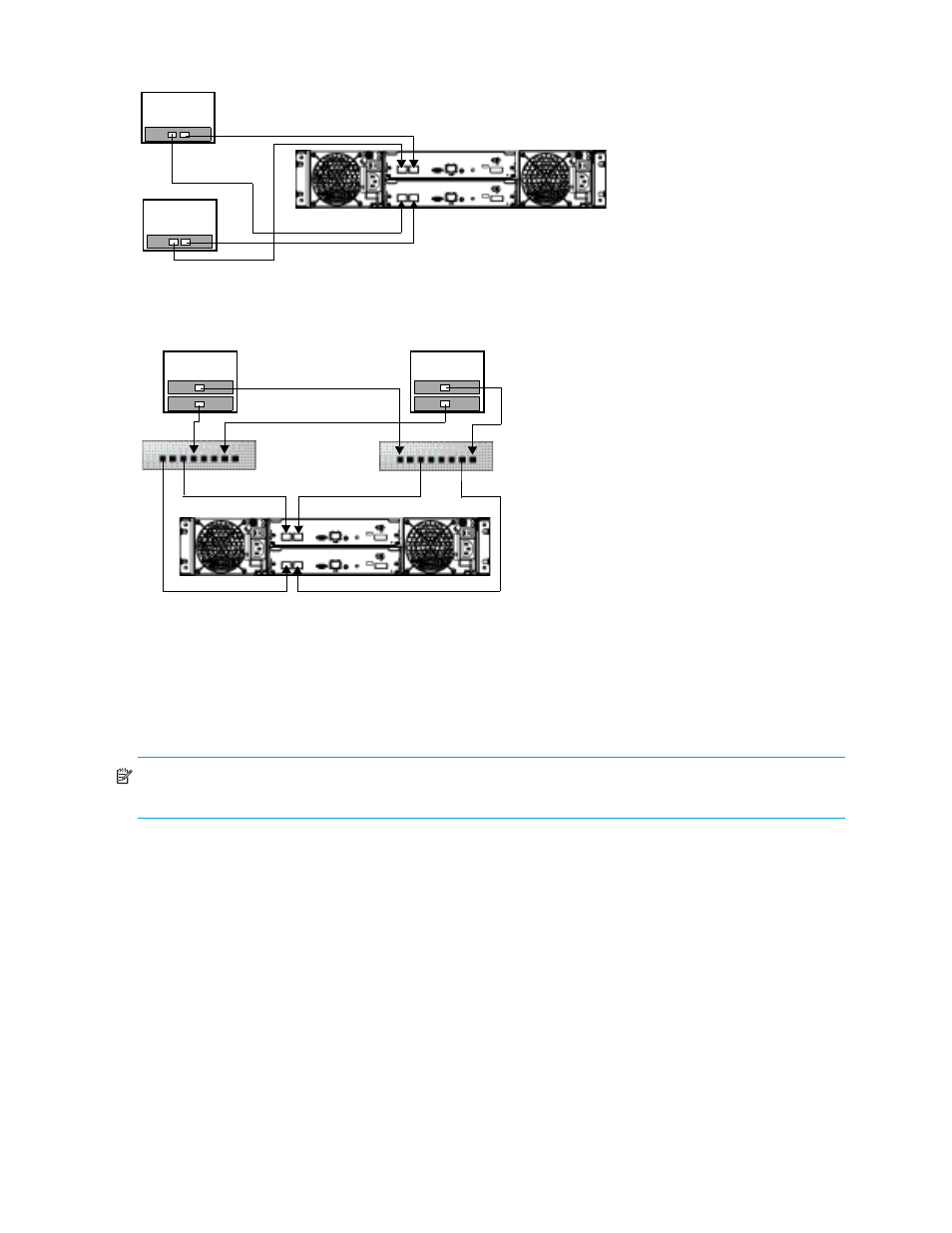

Two servers/one dual-ported HBA per server/dual path
Connecting switch attach configurations
Two servers/two switches
Connecting remote management hosts
The management host directly manages systems out-of-band over an Ethernet network.
1.
Connect an Ethernet cable to the Ethernet management port on each controller.
2.
Connect the other end of each Ethernet cable to a network that your management host can access
(preferably on the same subnet).
NOTE:
Connections to this device must be made with shielded cables with metallic RFI/EMI connector
hoods in order to maintain compliance with FCC Rules and Regulations.
