Component identification 9

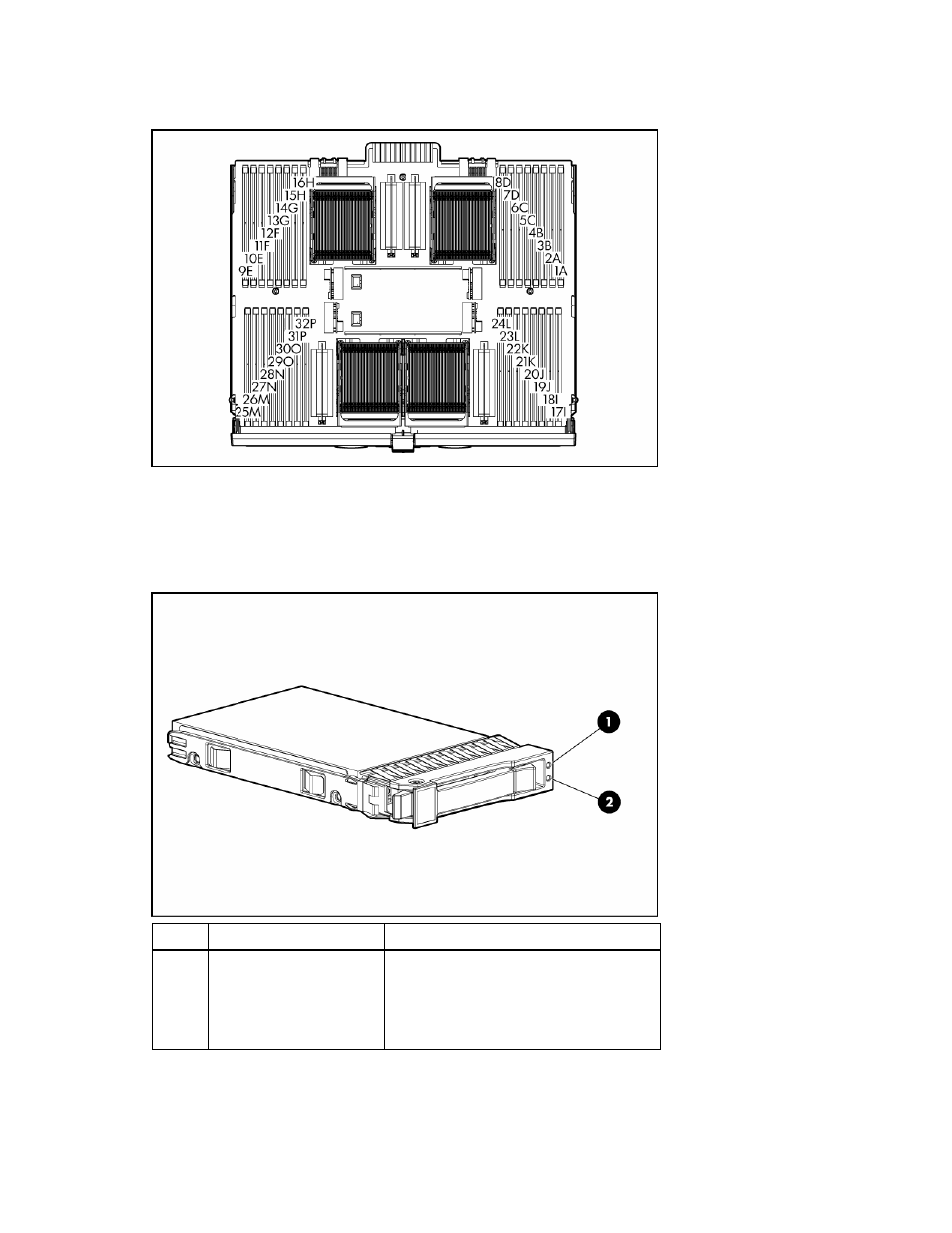

DIMM slot identification

Each memory node consists of eight DIMM slots in four banks. See "Memory options (on page

40

)" for

DIMM population guidelines.

SAS and SATA hard drive LEDs

Item Description

Status

1

Fault/UID LED

Amber = Drive failure
Flashing amber = Fault-process activity
Blue = Unit identification is active
Off = No fault-process activity
