Component identification 15
Item Description
1 Power button cable connector
2 USB cable connector
3 Video cable connector
4 Internal USB connector
5 Port 84/85 code display
6 Port 84/85 code display switch
7 System Insight Display
8 Boot device selector switch (SW1)

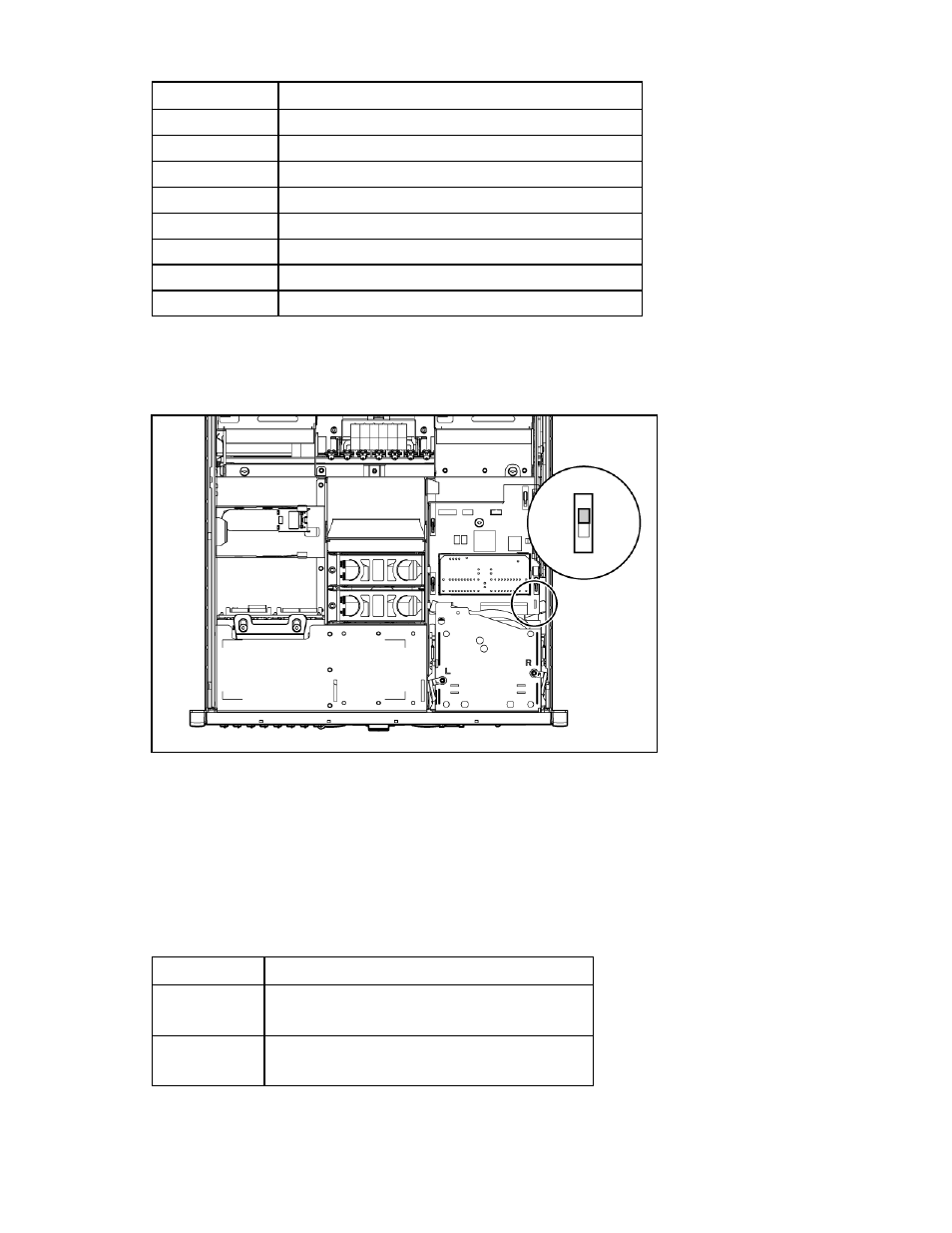

Boot device selector switch (SW1)
The boot device selector switch setting determines the device access order of the media drives in the
server. The default setting for the boot device selector switch is FLP TOP.
When the boot device selector switch is set to FLP TOP, the optical drive in the bottom bay is designated
as the primary optical drive. The diskette drive in the top bay is bootable. The server cannot boot from a
diskette drive in the bottom bay when the boot device selector switch is set to FLP TOP.
When the boot device selector switch is set to FLP BOT, the optical drive in the top bay is designated as
the primary optical drive. The diskette drive in the bottom bay is bootable. The server cannot boot from a
diskette drive in the top bay when the boot device selector switch is set to FLP BOT.
Switch setting Description
FLP TOP (default) The diskette drive in top bay is bootable.
The primary optical drive in bottom bay is bootable.
FLP BOT The primary optical drive in top bay is bootable.
The diskette drive in bottom bay is bootable.
