Installing the Tape Drive
9840 (CT9840FC-3) Installation and User’s Guide for the NonStop S-Series Enclosure— 524959-003
2 -3
Installing Multimode Fiber Cables
Installing Multimode Fiber Cables
Use proper Fibre Channel components (for example, GBICs and fibre channel cables).
A GBIC connector must be used. The GBIC connector is available in shortwave
optical.
See
Appendix B, Multimode Fiber Optic Cables
for product numbers, part numbers,
and descriptions for the fiber cables using the shortwave GBICs.
To Install Multimode Fiber Cables
1. Connect one end of the fiber cable to the connector port A on the tape drive. See
.
2. Connect the other end of the cable to the GBIC on the Fibre Channel converter.
.

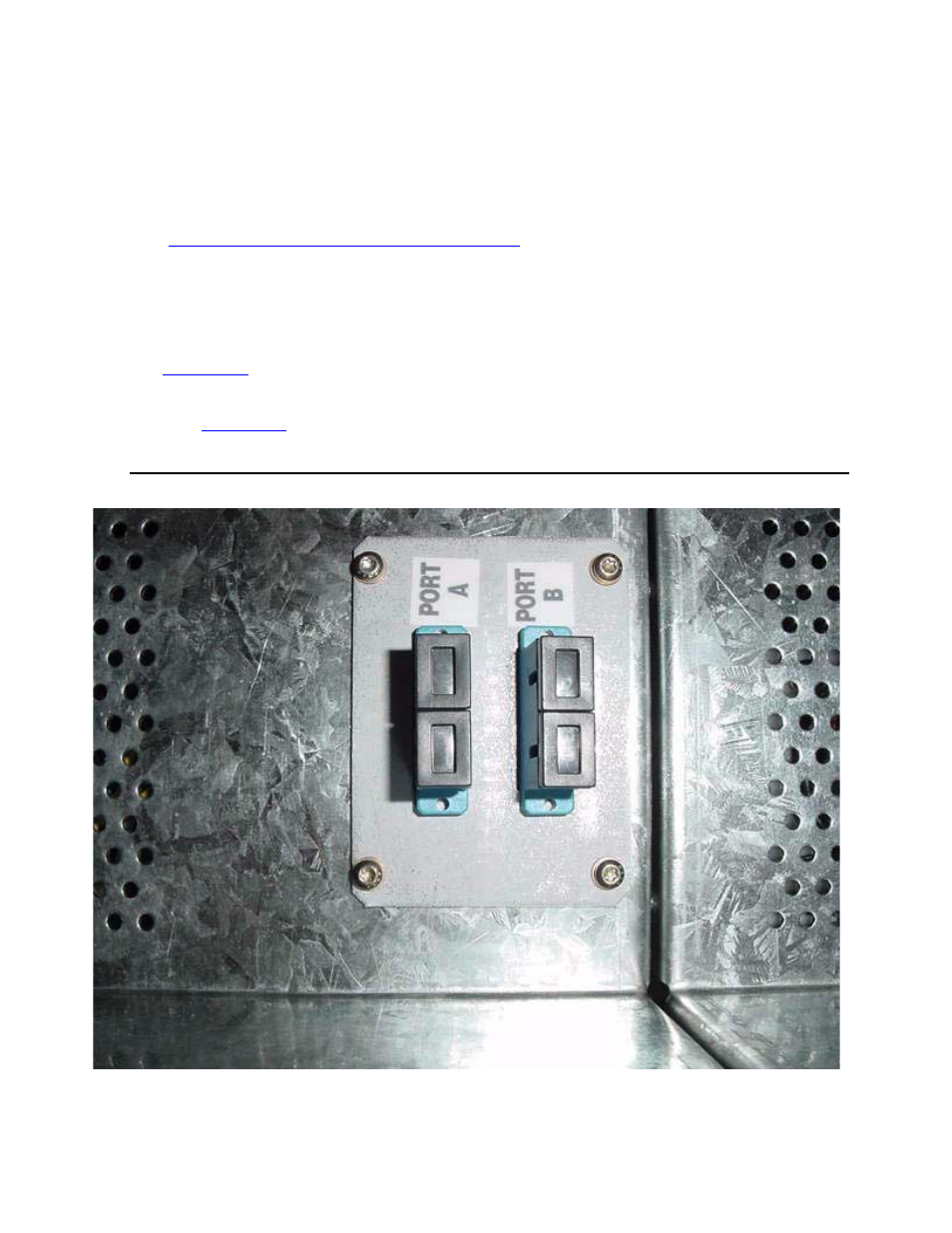

Figure 2-2. Location of Fibre Channel Connectors on the Tape Drive
