Installing the Tape Drive
9840 (CT9840FC-3) Installation and User’s Guide for the NonStop S-Series Enclosure— 524959-003
2 -4
Powering On the Tape Drive and the Fibre Channel
Converter

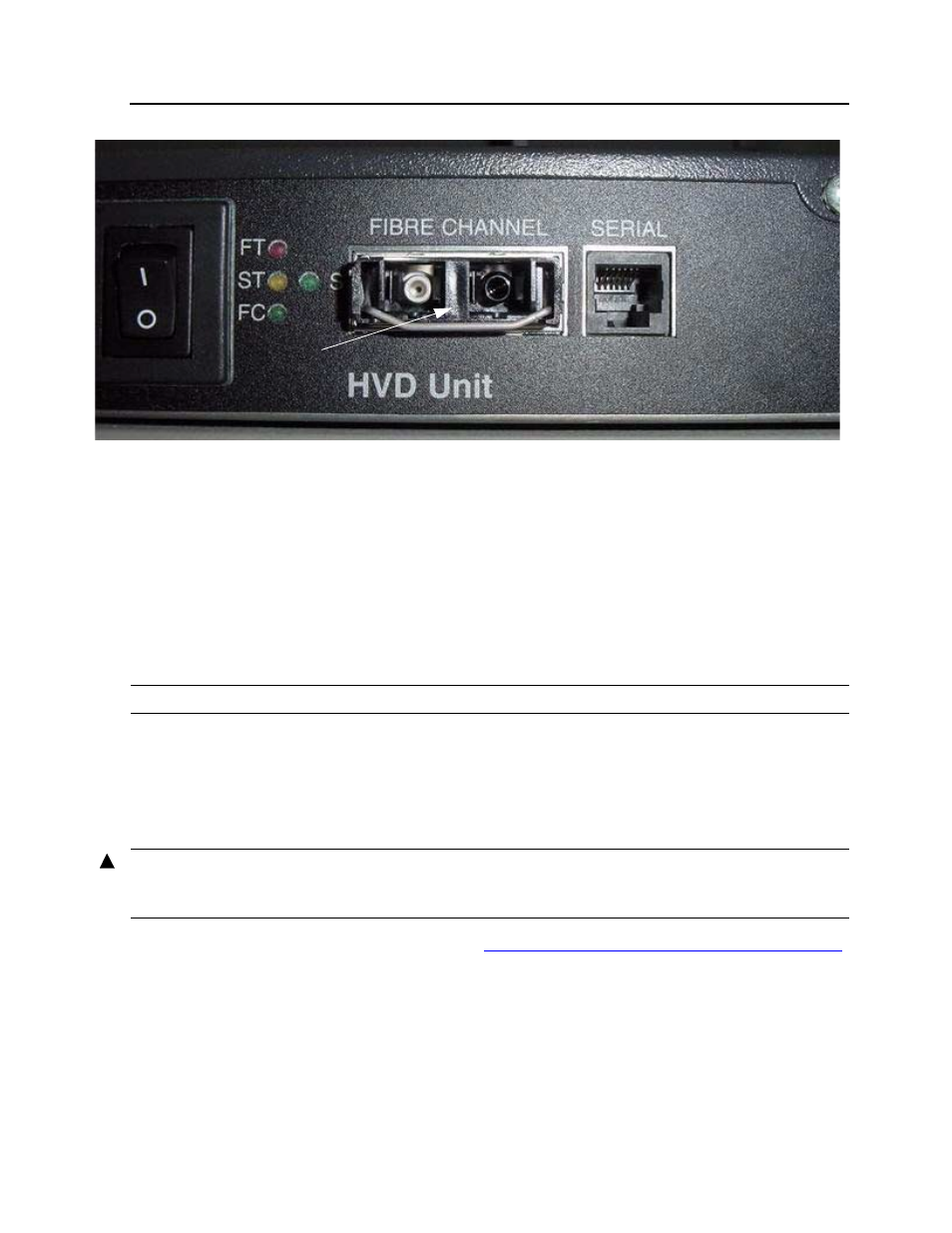

Figure 2-3. Location of the GBIC on the Fibre Channel Converter
Powering On the Tape Drive and the Fibre
Channel Converter
1. Check that the power cords are fully seated in the AC power receptacles on
both the tape drive and the Fibre Channel converter.
2. Attach the male end of the power cords to two separate power outlets.
3. Press the power switch to 1 “on position “on the tape drive.
4. Press the power switch to 1 “on position” on the Fibre Channel converter.
5. Verify that both of the devices power on.
For more information on the Fibre Channel converter, please refer to the Fibre Channel
Converter Installation and User’s Guide.
If connectivity is not established refer to
, Fibre Channel Converter Troubleshooting,
Note.
The tape drive must be powered on first.
WARNING.
The tape drive does not have protection against lightning surges. For this reason, If you are located
in a high risk area, use external surge protection rated for use in your location and be able to handle the power
requirements of the tape drive enclosure.
GBIC
