7. Daily Inspection and Maintenance
-64-

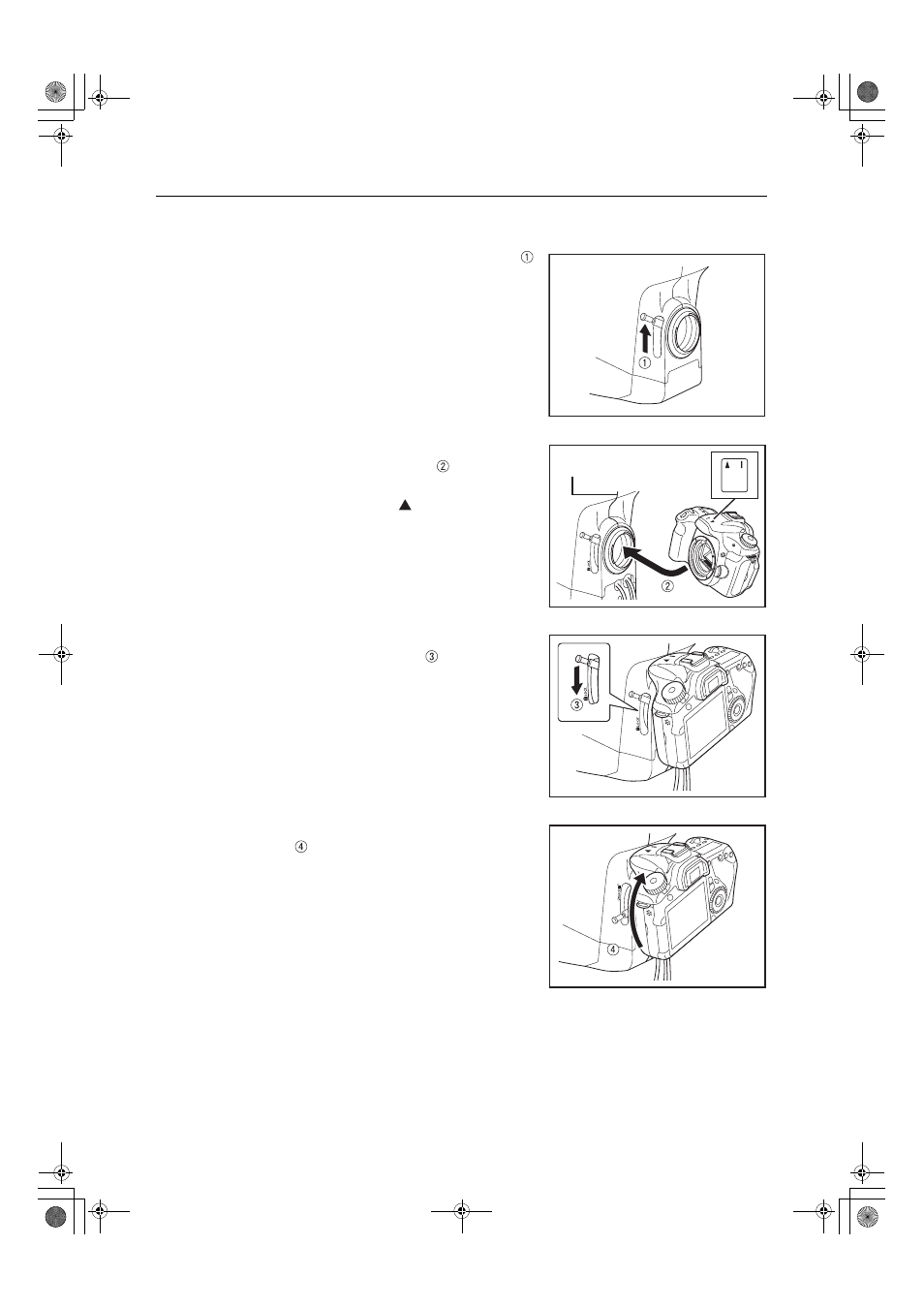

3 Mount the digital camera to the retinal camera.
Set the mount lock lever to the UNLOCK position .
Fit the digital camera lens mount onto the camera
mount of the retinal camera body
.
When fitting them together, be sure that the digital
camera mount index mark
is aligned with the cover
seam on the retinal camera body.
Hold the knob of the mount lock lever, and push down
the lever to the LOCK position
.
Turn the digital camera clockwise until it clicks into
place .
Check that the digital camera is firmly secured in place.
Seam of cover Digital camera
mount index
“Clicks” “Clicks” “Clicks”
