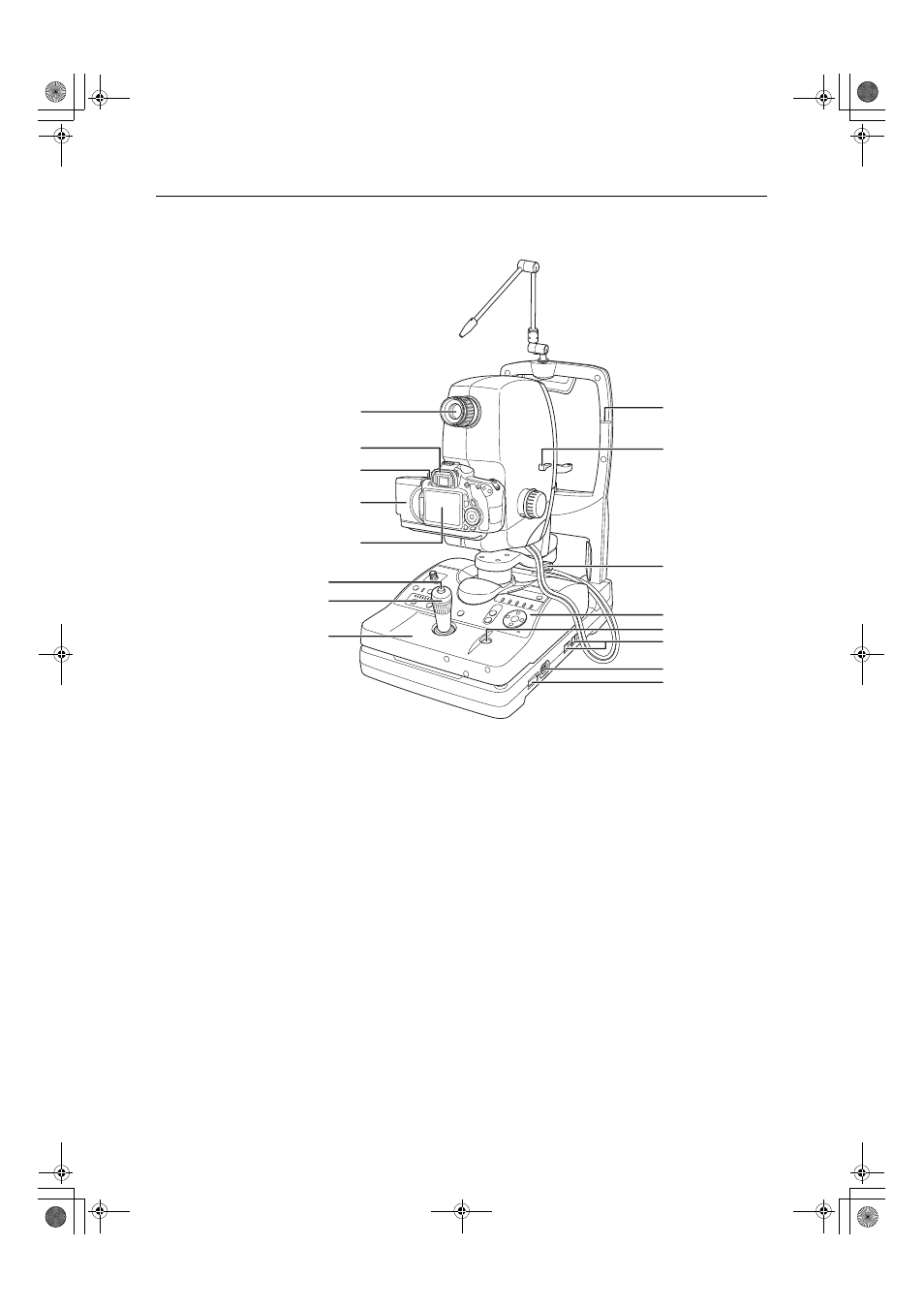

3. Names of Parts
-17-
12 Viewfinder (see page 19)
13 Digital camera (see page 10)
14 Digital camera power switch
(see page 23)
15 Digital camera cover (see page 61)
16 Observation monitor (see page 19)
17 Shutter release button (see page 30, 33,
34, 40)
18 Operation lever (see page 24, 27, 28)
19 Stage unit (see page 24, 27, 31, 41)
20 Height adjustment mark (see page 27)
21 Tilting lock lever (see page 47)
22 Panning lock knob (see page 47)
23 Operation panel (see page 18)
24 Stage unit lock button (see page 31)
25 USB connector (see page 21)
26 AC power connector (see page 20)
27 Retinal camera power switch
14
12
15
13
18
17
19
20
21
16
22
23
24
25
26
27
