3. Names of Parts
-19-

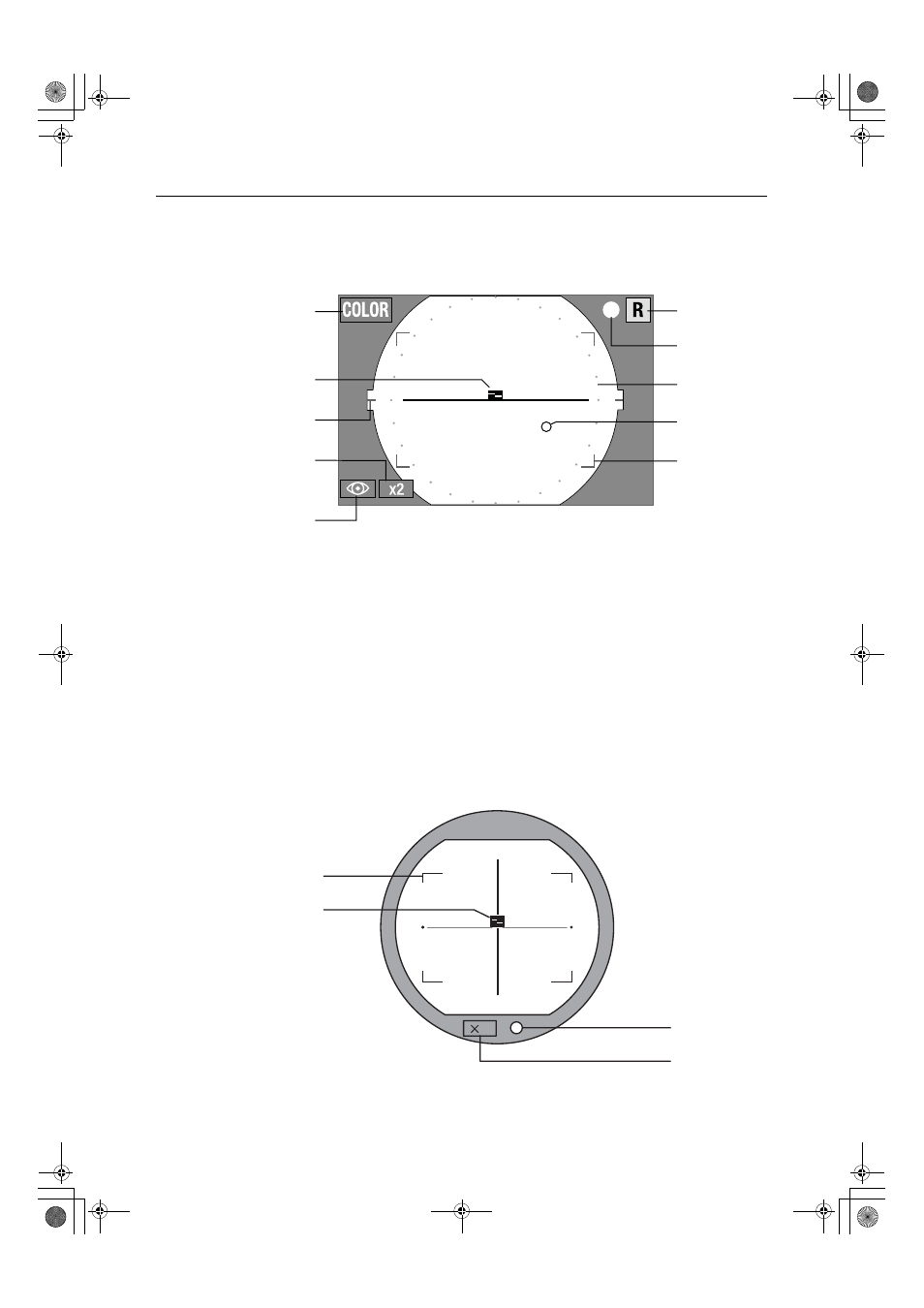

3.3 Observation Monitor and Viewfinder
Observation monitor (with x1.3 magnification)
1 Photography mode indication
COLOR:
Color (see page 26)
RED FREE: Red free (see page 32)
COBALT:
Cobalt (see page 33)
FLUO: Fluorescein angiography
(see page 33)
FAF: Fundus autofluorescence
(see page 35)
2 Focus indicator (see page 29)
3 WD Guide (Green)
4 ×2 photography indicator (see page 45)
5 Small pupil photography indicator
(see page 46)
6 Right/Left eye indicator
R: Right eye
L: Left eye
7 Photography ready lamp (see page 30)
8 Small pupil photography effective area
(see page 46)
9 Internal eye fixation lamp position
(see page 29)
10 ×2 photography range (see page 45)
Viewfinder
1 ×2 photography range (see page 45)
2 Focus indicator (see page 39)
3 Photography ready lamp (see page 30)
4 ×2 photography range (see page 45)
1
2
3
4
5
6
7
8
9
10
2 3
4
1
2
