Page 31

EDIT

ING A LA

BEL

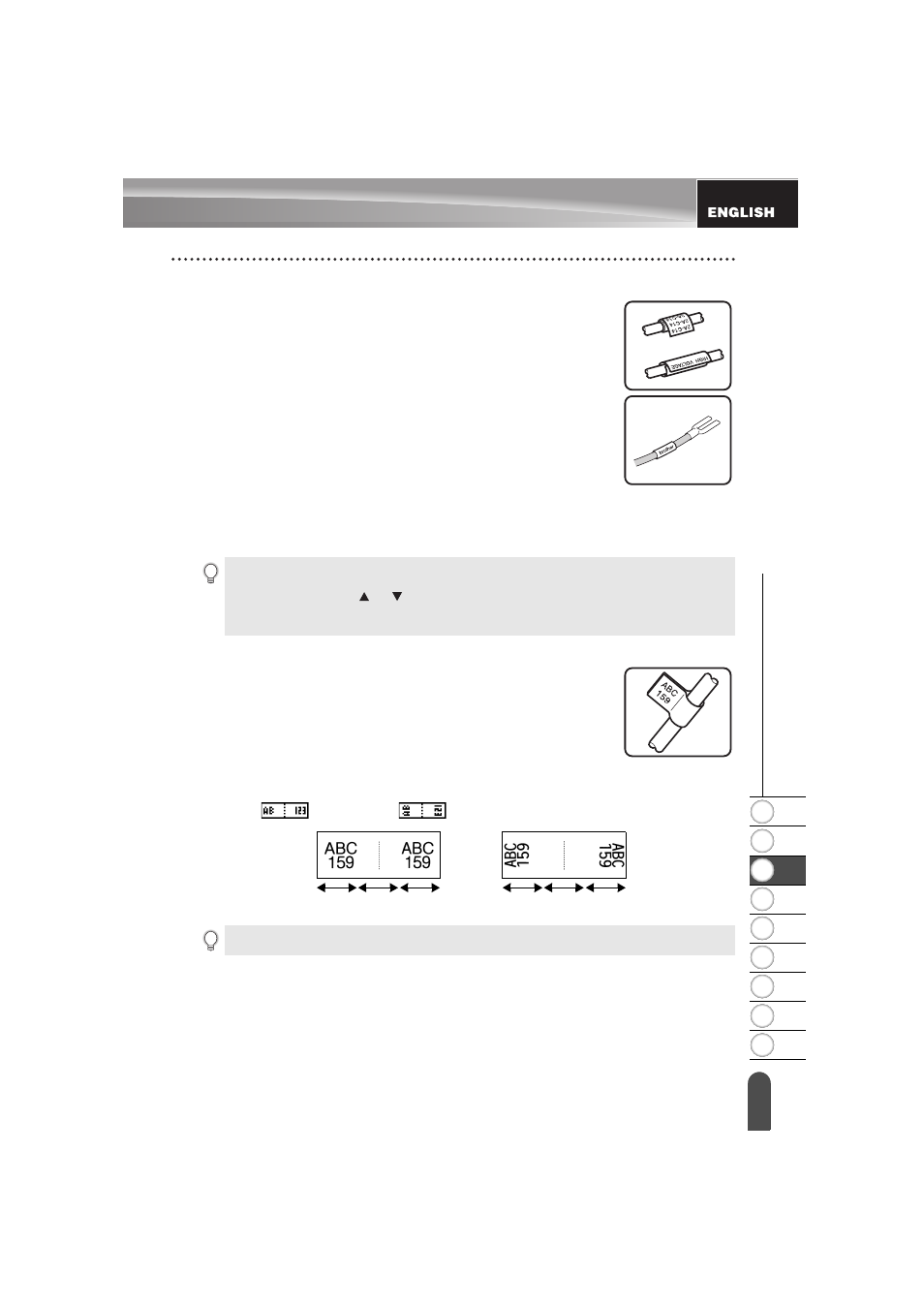

Selecting a Labeling Application Type

CABLE WRAP

Labels printed with this mode can be wrapped around a cable or wire.

This mode is also used to print on Heat Shrink Tube.

In Flexible ID, the text is rotated 90

counterclockwise and printed, you

can also specify the Size, Text and Repeat (ON/OFF).

Flexible ID
• UOM: Cust Dia (Custom Diameter), CAT5/6, CAT6e, COAX, AWG,

Cust Len (Custom Length)

• Value: Depending on UOM

• Repeat: On, Off

Text: Type in single or multiple lines of data

Heat Shrink Tube

• Label length: Auto

Text: Type in single or multiple lines of data

CABLE FLAG

Labels printed with this mode can be wrapped around a cable or wire,

and both ends of the label stick together to form a flag. The text on flag

labels is printed on both ends of the label, leaving a blank space in the

middle that wraps around the cable. In this mode, you can specify

Layout, Flag Length, Cable Diameter and Orientation.

• Layout: AA|AA (The same text is printed on each block.),

AA|BB (Two different texts are printed on each block.)

• Flag Length: 1.2" (30 mm), 0.6" (15 mm) - 8.0" (200 mm)

• Cable Diameter: 0.25" (6 mm), 0.12" (3 mm) - 3.50" (90 mm)

• Orientation:

(Horizontal),

(Vertical)

When using Heat Shrink Tube:

• Press Cable Wrap key. The screen to select the type of tape is displayed. Select Heat-

shrink Tube by using or key and then input text.

• Only the length of tape can be set when Heat Shrink Tube is selected. Margin setting is

fixed to No Cut.

Horizontal

Vertical

Flag

length

Flag

diameter

Flag

length

Flag

length

Flag

diameter

Flag

length

You can enter up to two bar codes when (AA|AA) is selected in flag layout.
