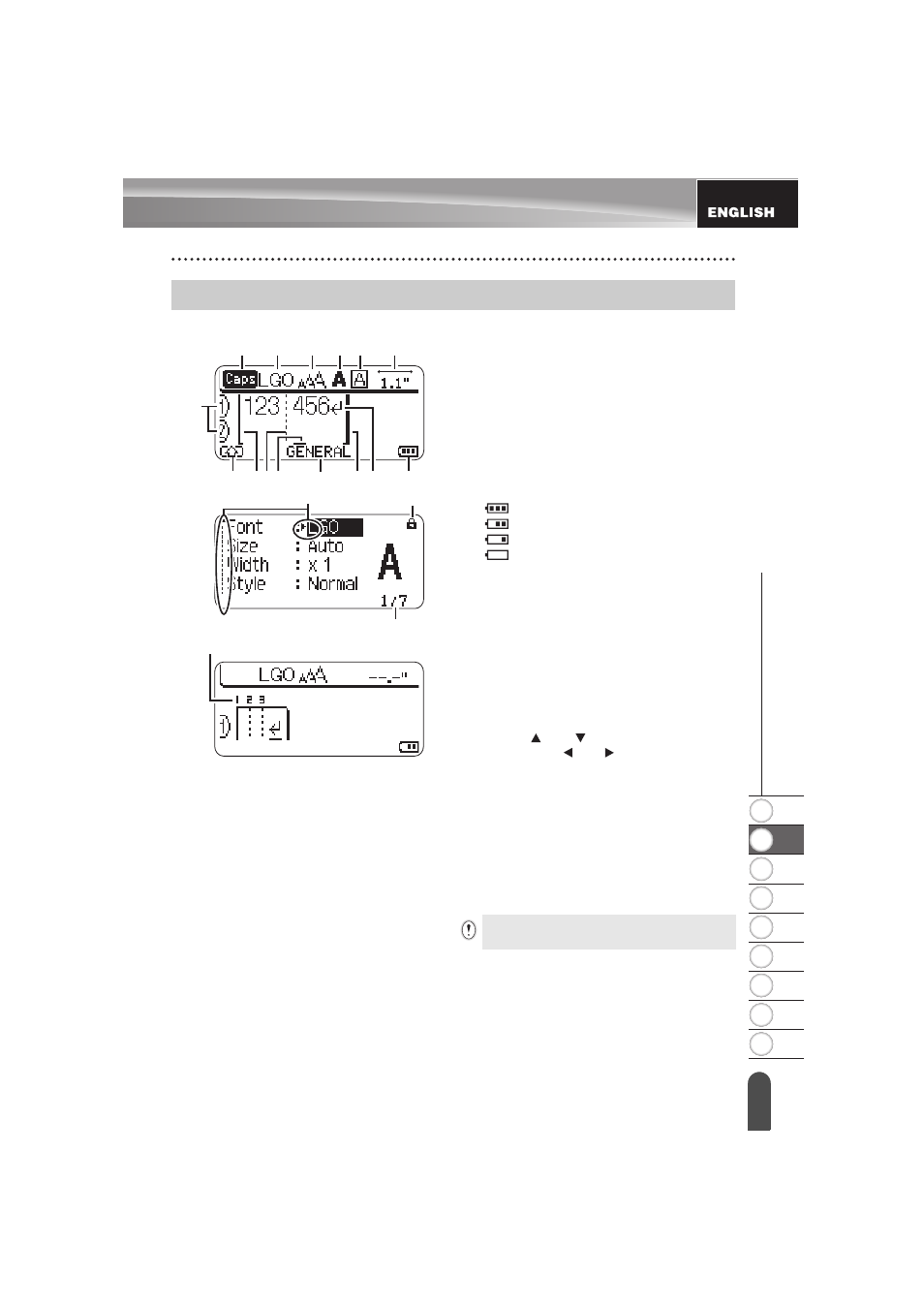

LCD Display & Keyboard

LCD Display

1. Line number

Indicates line number within the label

layout.

2. Shift Mode

Indicates shift mode is on.

3. Start Line / 4. End Line

The area between the start and end line

will be printed.

The short lines extending from the start/

end lines show the end of the label layout.

5. Block Separator Line

Indicates the end of a block.

6. Cursor

Characters are entered to the left of the

cursor. Indicates the current data input

position.

7. Labeling Application Type

Indicates current labeling application type.

8. Return mark

Indicates the end of a line of text.

9. Battery Level

Indicates remaining battery level. It

displays only when using Li-ion battery.

10.Caps mode

Indicates that the Caps mode is on.

11.-14. Style guidance

Indicates the current font (11), character

size (12), character style (13) and frame

(14) settings.

15.Tape length

Indicates the tape length for the text

entered.

16.Cursor selection

Use the and keys to select menu

items and the and keys to change the

settings.

17.Lock mark

Indicates that some items cannot be

changed.

18.Counter

Indicates currently selected number/

selectable number.

19.Block Number

Indicates the block number.

LCD Display & Keyboard

6

10

11

12 13 14

15

5

2

3

4

9

8

1

7

16

17

18

19

Refer to “LCD Display” on page 25 for
changing.

-Full

-Half

-Low

-Empty
