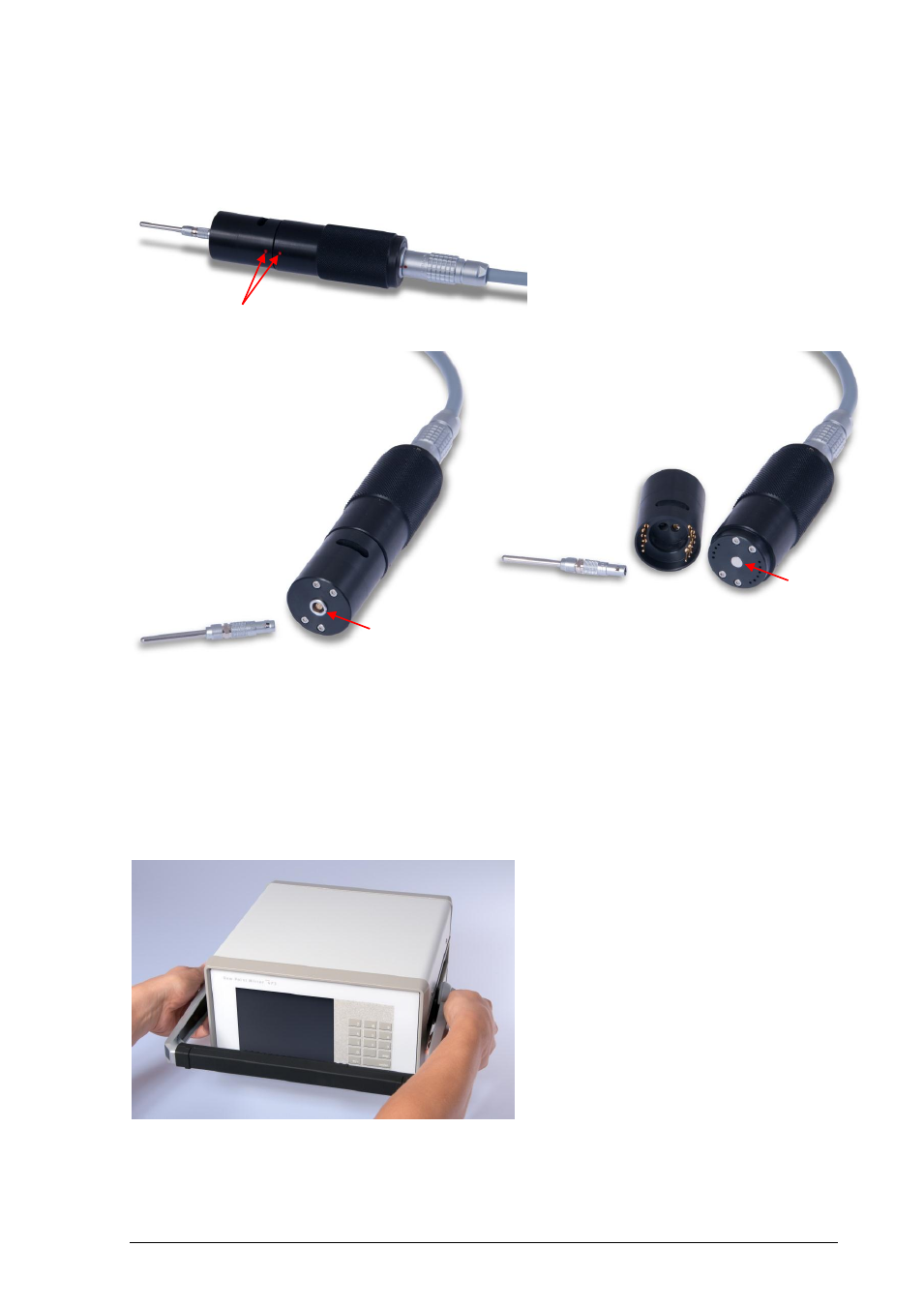

The RP2 Measuring Head
1. Temperature Probe Ø3 x 30 mm
2. Measuring Head Assembly
3. 19-pin Measuring Head Cable (2 m)
4. When reassembling the measuring head
take care to align the red marks.
5. External Temperature Connection
6. Polished Mirror
3.4 Carrying Handle
To adjust the position of the carrying han-
dle, press the buttons on both sides. Re-
lease the buttons when the handle is in the
desired position. Ensure that the handle has
locked into place before lifting the instru-
ment.
1
2
3
4
5
6
