MBW473_MANUAL_E_V2.0 7
3 Get to know your 473

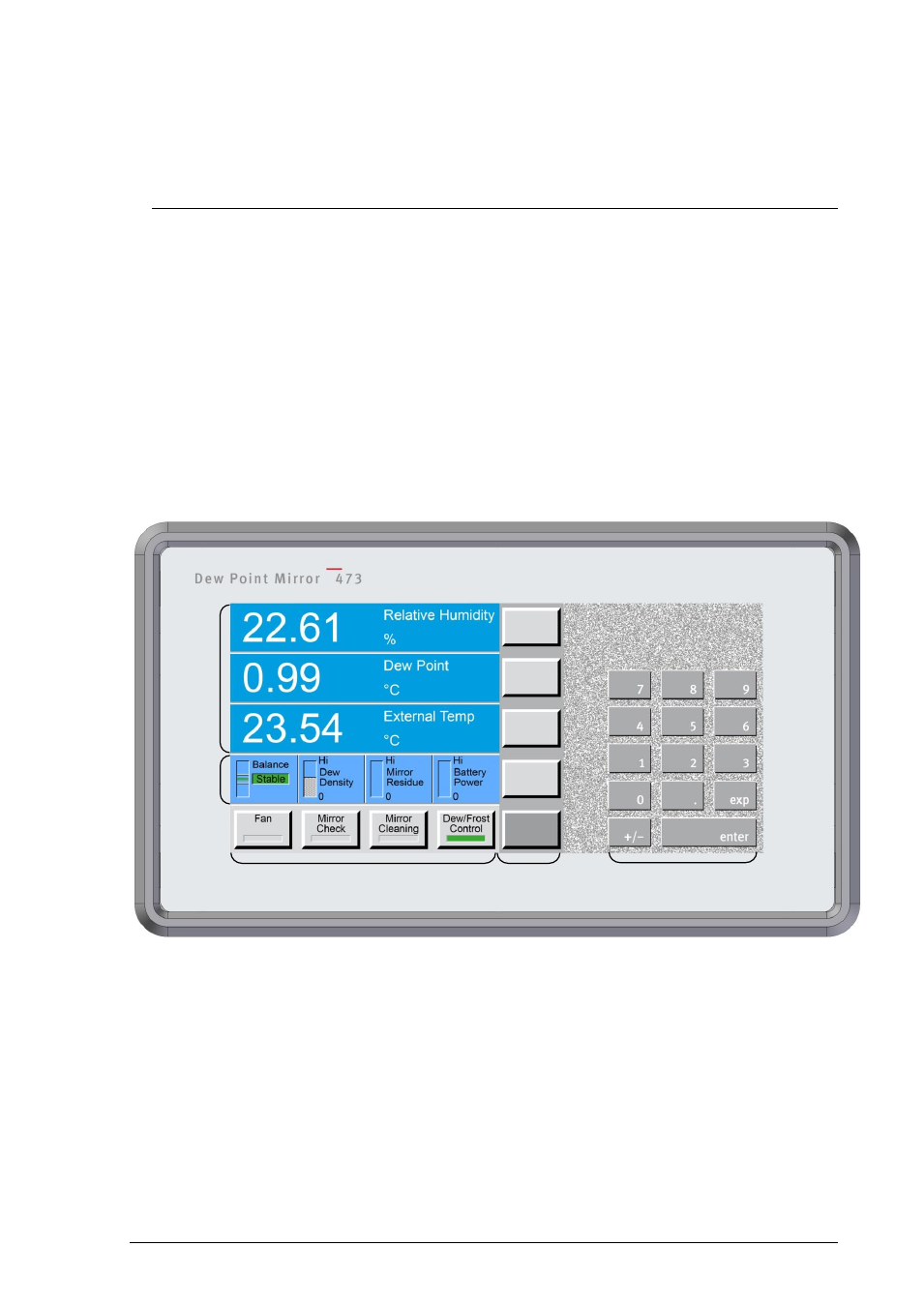

3.1 Front Panel
The front panel of the 473 is equipped with a full color touch screen and a keypad for data entry. To
activate a menu option or toggle a function on or off, simply touch the desired key or object directly on
the screen.
When the 473 is turned on, the display will activate within a few seconds. A sample display configura-
tion is shown below. The display configuration can be customized, so your display may look different.
The use and the functions of the display are described in the next chapter.
Menu
Keys
Status
Line
Fixed
Function Keys
Data
Lines
Keypad
