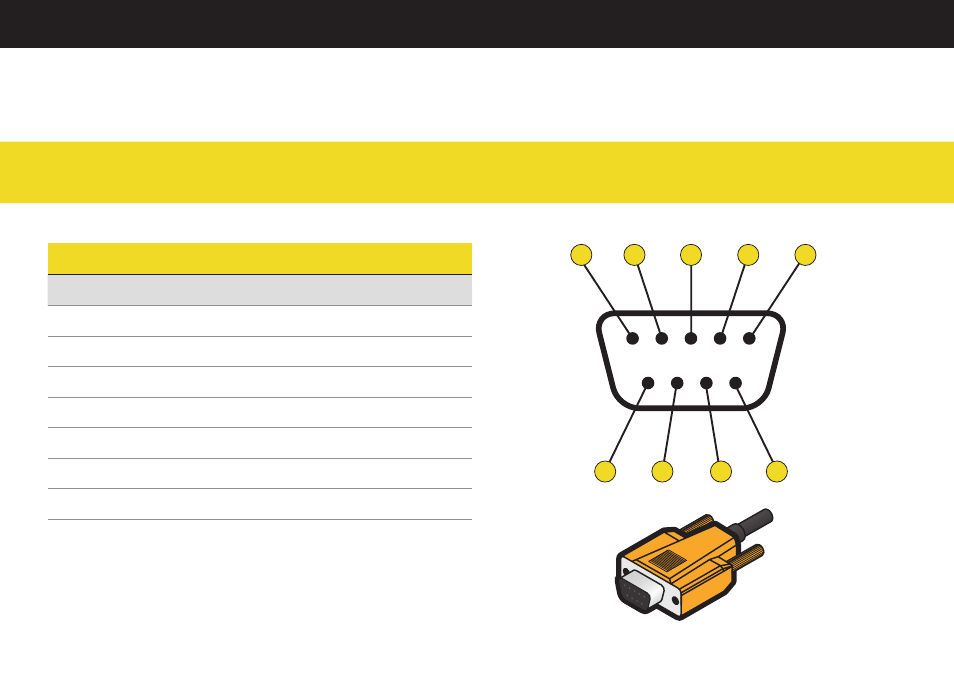

Included Power Side DB9 Cable
5
4
3
2
1
9
8
7
6
FEMALE DB9 POWER SIDE (SUPPLIED)
PIN # WIRING CODE
CABLE COLOR CODE
1
SIGNAL OUT (CURRENT)
WHITE
2
RETURN (CURRENT)
BLUE
6
GROUND (POWER)
BLACK
7
RETURN (VOLTAGE)
ORANGE
8
SIGNAL OUT (VOLTAGE)
GREEN
9
SUPPLY POWER
RED
–
SHIELD
N/A
IMPORTANT NOTE: Do not connect the device to the power supply when the power supply is already on.
