CSG110 Power Side Connections

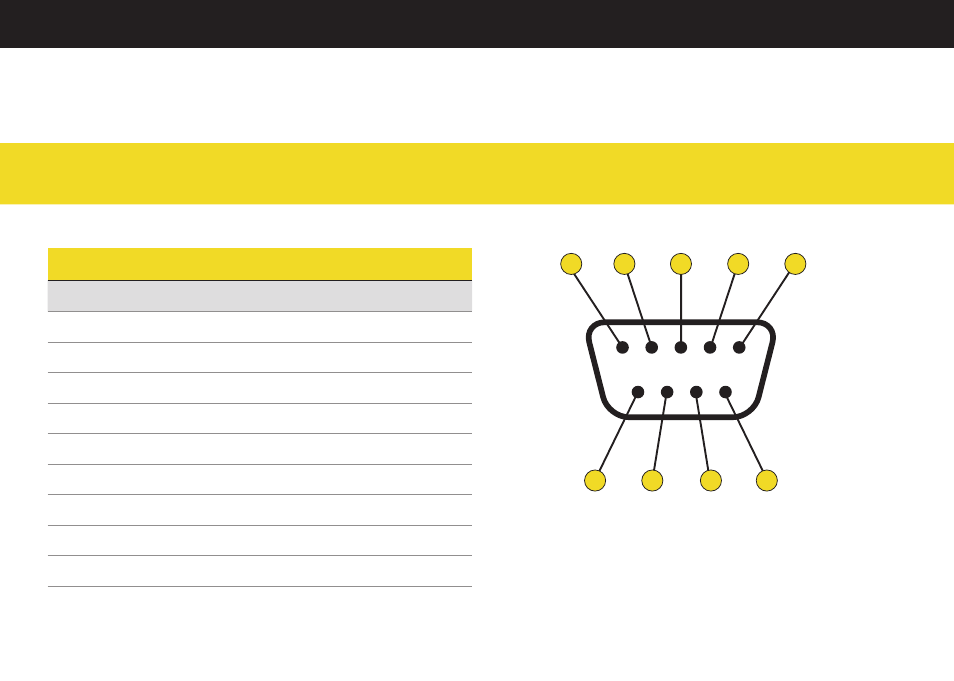

1 2 3 4 5
6 7 8 9
2 Only available with current output option. Note: All grounds
are connected together and pass through the CSG110.
MALE DB9 POWER SIDE
PIN # WIRING CODE CABLE COLOR CODE
9 POWER SUPPLY RED
8 SIGNAL OUT (VOLTAGE) GREEN
7 GROUND ORANGE
6 GROUND BLACK
5 GROUND N/A
4 GROUND N/A
3 GROUND N/A
2 GROUND BLUE
1 SIGNAL OUT (CURRENT) 2 WHITE
IMPORTANT NOTE: Do not connect the device to the power supply when the power supply is already on.
